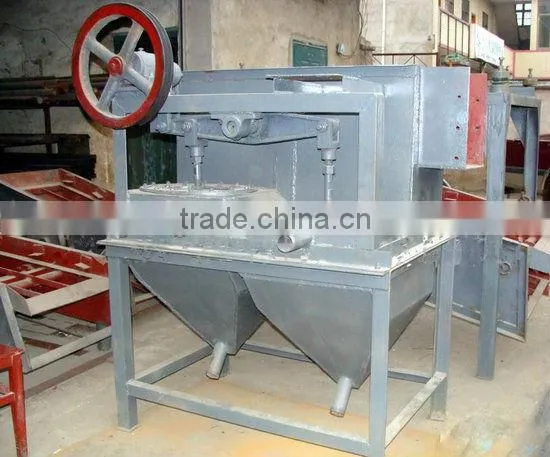

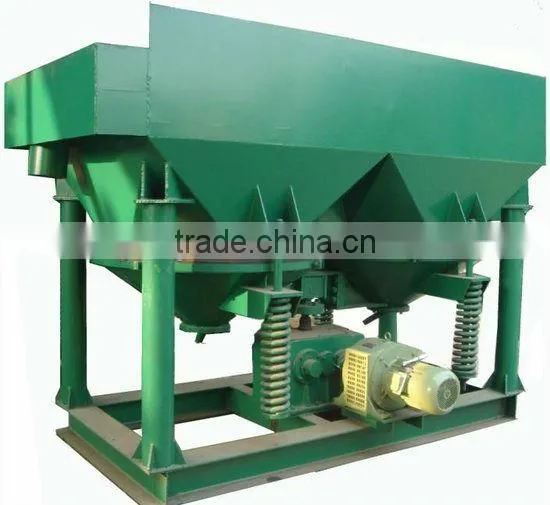

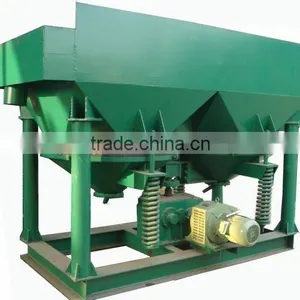

2013 New Jig Separator for Sale
US$ 5,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
97%
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jig Separator Machinery/separator MachineUS$ 2,000 - 8,000MOQ: 1 Set -
Jig Separator ManufacturerUS$ 5,000 - 500,000MOQ: 1 Set
-
Mineral Benefication/washing Process/ Black Lead Spiral Classifier PriceUS$ 1,500 - 2,500MOQ: 1 Set
-
Copper Ore Flotation Machine/gold Ore Flotation Separator/copper Ore Processing PlantUS$ 1,500 - 2,500MOQ: 1 Set
-
High Quality Spiral Classifier for Ore-dressing and Gold and IronUS$ 1,500 - 2,500MOQ: 1 Set
Condition
New
Type
Gravity Separator
Production Capacity
97%
Place of Origin
Henan, China
Brand Name
YUFENG
Model Number
LTP-34/2,LTA-1010/2,2LTC-69/2,2LTC-366/8T,LTC-6109/8T,AM-30
Voltage
220v/380v/480v
Power(W)
1.1/2.2/1.5/1.1*2/2.2*2/3
Weight
1/2/3/4/5/5.5/67
Certification
ISO9001:2008
Warranty
2 yeays (except the easy damaged parts)
After-sales Service Provided
Engineers available to service machinery overseas
Jig is a gravity separation device, it works by gravity separation, in accordance with the gangue mineral density difference of separation, widely used in sand gold, iron ore, manganese ore, tungsten ore, tin, tantalum and niobium Ore, fluorite ore, barite ore, celestite ore, diamond ore and other metal and non-metallic mineral dressing, ore dressing works well.
Parameters:
Model |
LTP-34/2 |
LTA-1010/2 |
LTC-69/2 |
2LTC-366/8T |
2LTC-6109/8T |
AM-30 |
||
Type |
Lateral-
drive
|
Down-
moving
|
Side-moving |
Side-moving |
Side-moving |
Side-
moving
|
||
Cross sectional |
rectangle |
rectangle |
rectangle |
Trapezoid |
Trapezoid |
|||
|
Jigging room
|
Size mm |
450x300 |
1000x1000 |
900x600 |
600x(300-600) |
900x(600-1000) |
||
Single room |
0.135 |
1.0 |
0.54 |
0.2-0.34 |
0.58-0.86 |
|||
Columen No. |
1 |
1 |
1 |
2 |
2 |
|||
Room No. |
2 |
2 |
2 |
8 |
8 |
|||
Total area |
0.27 |
2.0 |
1.08 |
2.16 |
5.76 |
|||
stroke coefficient |
0.58 |
0.5 |
0.56 |
0.68-0.41 |
0.52-0.35 |
0.47 |
||
|
Diaphragm
|
Stroke mm |
0-25 |
0-25 |
0-50 |
0-50 |
0-50 |
||
frequency of stroke |
320-420 |
250-350- |
220-350 |
120-300 |
120-300 |
|||
Max. feed size mm |
12 |
5 |
12 |
5 |
5 |
30 |
||
Capacity (t/h) |
2-6 |
5-15 |
6-9 |
3-6 |
10-20 |
10-15 |
||
Water consumption (t/h) |
4-10 |
10-20 |
40-60 |
20-40 |
80-120 |
|||
Motor |
Power (kw) |
1.1 |
2.2 |
1.5 |
1.1x2 |
2.2x2 |
3 |
|
...
