Geosynthetic Clay Liner (GCL) for Landfill and Basement Lining and Waterproofing Solution
US$ 1 - 25
MOQ: 10000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BPM geosynthetics
Model Number:
GCL
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproofing Construction and Drilling Lining and Remediation Bentonite Geosynthetic Clay LinerUS$ 1 - 25MOQ: 10000 Square Meters -
Geosynthetic Clay Liners (GCLs) Combine Geosynthetics With Sodium Bentonite ClayUS$ 1.65 - 3.25MOQ: 2000 Square Meters
-
Geosynthetic Clay Liner (GCL) 4kg 5kg/m2 for Landfill and Basement LiningUS$ 1 - 25MOQ: 10000 Square Meters
-
4600g-6000g/m2 Natural Sodium Bentonite Material Clay Liner GCLUS$ 0.8 - 1.5MOQ: 1000 Square Meters
-
Composite Geosynthetic Clay Liner Weaving Standard Reinforced GCLUS$ 0.8 - 1.5MOQ: 1000 Square Meters
Place of Origin
Shandong, China
Brand Name
BPM geosynthetics
Model Number
GCL
Geosynthetic Clay Liner (GCL) for landfill and basement lining
and waterproofing solution
Natural sodium bentonite Geosynthetic Clay Liner (GCL)
Our GCL is composed of 3 layers, the upper layer is nonwoven geotextile, while the lower layer is woven geotextile, natural sodium bentonite fills the gap between geotextile layers. It can enlong the using life of construction.
Technical Parameter:
| Inspection Item | Testing Procedure | Technical Index |
| Bentonite mass for unit area | ASTMD5993 | ≥5.5kg/m2 |
| Expansion coefficient | ASTMD5890 | ≥ 25mL/2g |
| Low temperature ductility | ASTMD5898 | No impact at -35°C |
| Thickness | ASTMD5892 | ≥6.4mm |
| Tensile strength | ASTMD4632 | ≥540N |
| Peel strength of concrete face | ASTMD4632 | ≥3.0 KN/ m2 |
| Peel strength | ASTMD4632 | ≥68N |
| Indicated flow | ASTMD5887 | ≤1 × 10-8m3/m2/sec |
| Hydrostatic pressure resistance | ASTMD5888 | ≥70 |
| Permeability | ASTMD5887 | ≤5 × 10-12cm/sec |
| Extension rate | ASTMD5896 | ≥20 |
| Puncture strength | ASTMD5894 | ≥635N |

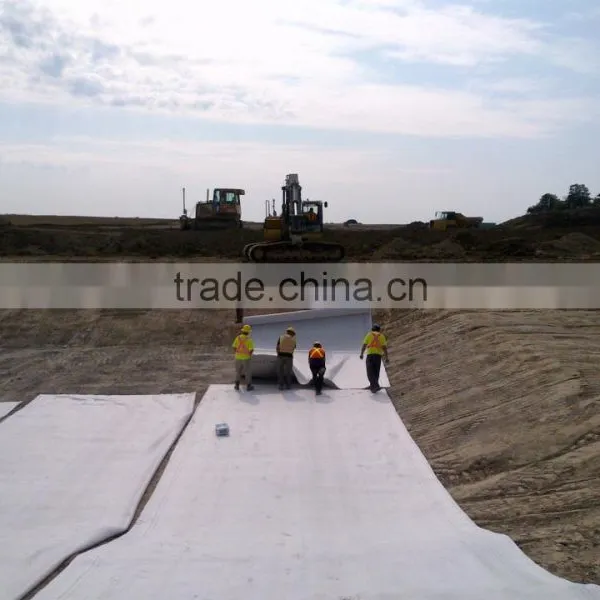

Application:
| · Landfills | · Mud Pits |
| · Lagoons | · Canals |
| · Bund Lining | · Tank Lining |
| · Fish Farm Lining | · Roof Lining |
| · Waste Water Pits | · Ponds and Reservoirs |
| · Dams | · Floating Covers |
| · Vertical Cutoff Walls | · Hydraulic Structure |
| · Basement Lining | · Drip Irrigation Ponds |
