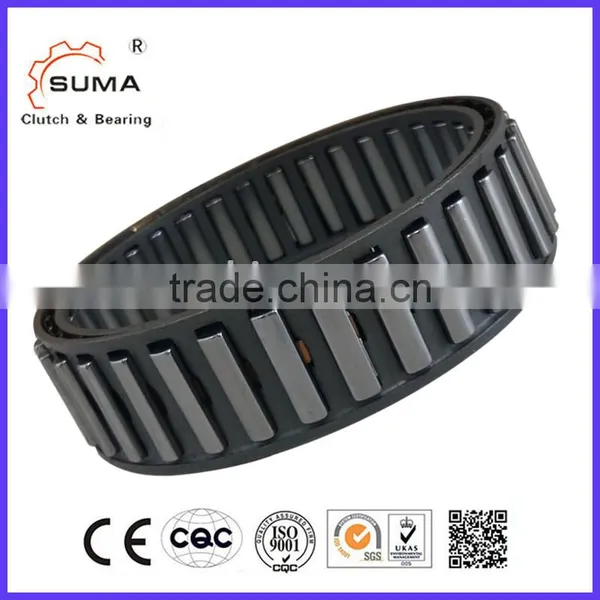

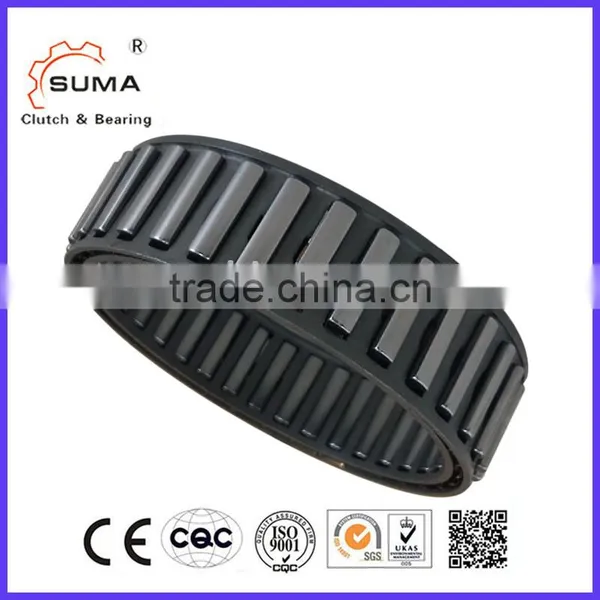

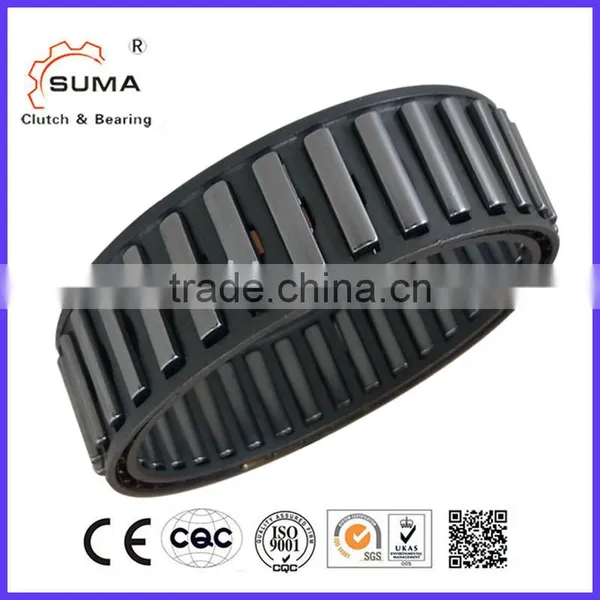

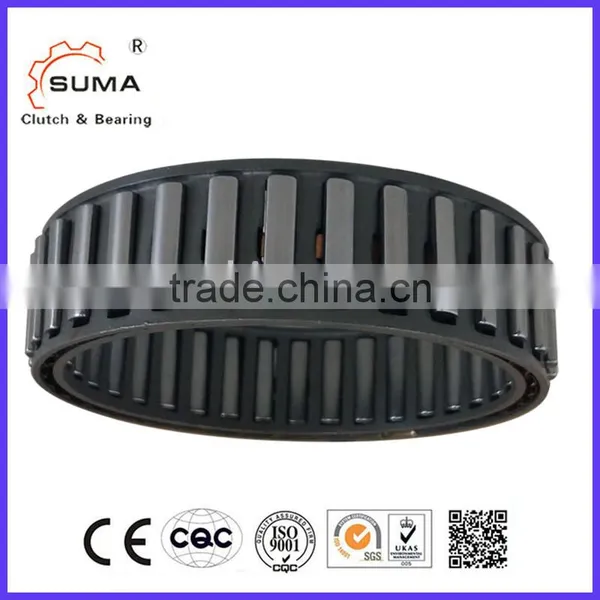

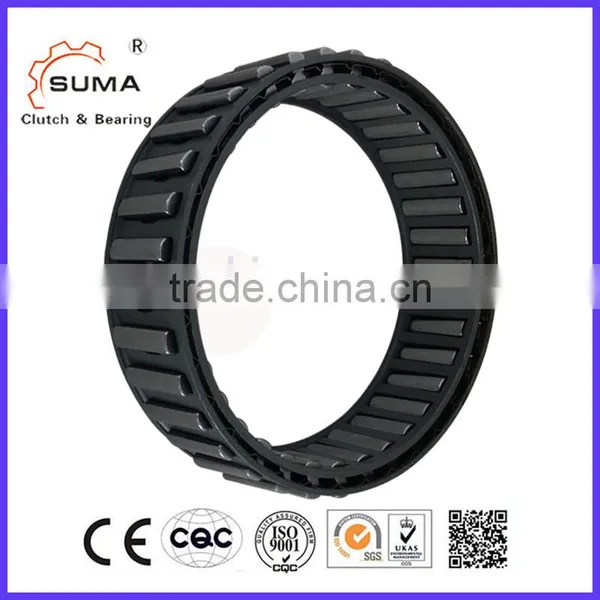

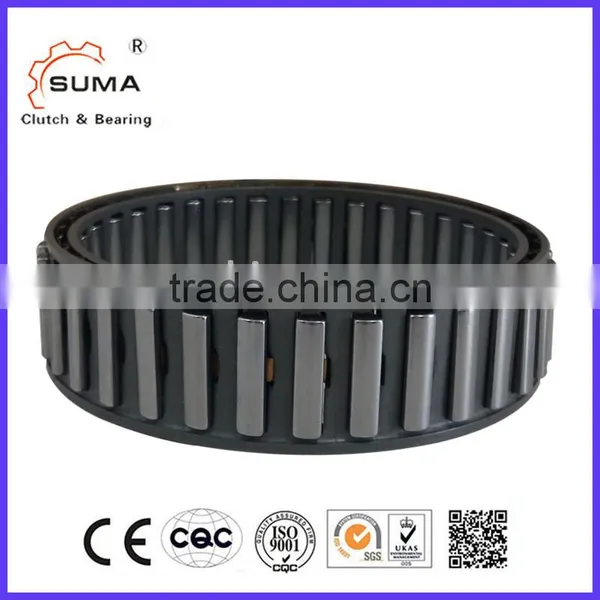

One Way Clutch DC 5776A Sprag Cage Freewheels from Changzhou Manufacturer
Features of dc cage clutch : DC is a sprag type freewheel bearing cage without inner or outer races.
| SPECIFICATIONS | |
| Model | DC5776A |
| Material | Chrome Steel GCr15 |
| Inner diameter | 57.76mm |
| Outer diameter | 74.42mm |
| Sprag No. | 24 |
| Clip No. | -- |
| Torlance | ± 0,013 |
| Weight | 0.11kg |
| Package | carton box, wooden box |
| Delivery time | 1 day for sample, 5-7 days for big order |
| Payment Terms | TT, L/C, D/P, D/A, Western Union, Paypal |
Installation Condition: It must be installed in a design providing races,bearing support for axial and radial loads. Lubrication and sealing.
Caution: The sprag tolerance must not be exceeded. Inner and outer races must both have am ini- mum plain widttie, without any recess, to ensure the freewheel functions correctly.
Catalogue of dc freewheels for your choice
| Size |
Overrunning speeds |
Øa | Øc |
Sprag space |
emin | Ødmin | Øbmax |
Number of clips |
Number of sprags |
Weight | ||
| + 0,008 | ± 0,013 | |||||||||||
| - 0,005 | ||||||||||||
| TKN1[Nm] |
nimax [min-1] |
Namax2 [min-1] |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |||
| DC2222G | 63 | 8600 | 4300 | 22.225 | 38.885 | 8.33 | 10 | 50 | 15 | - | 12 | 0.03 |
| DC2776 | 119 | 6900 | 3400 | 27.762 | 44.422 | 8.33 | 13.5 | 58 | 18 | - | 14 | 0.055 |
| DC3034 | 124 | 6300 | 3100 | 30.34 | 47 | 8.33 | 13.5 | 62 | 20 | - | 14 | 0.06 |
| DC3175(3C) | 159 | 6000 | 3000 | 31.75 | 48.41 | 8.33 | 13.5 | 63 | 24 | 3 | 16 | 0.06 |
| DC3809A | 275 | 5000 | 2500 | 38.092 | 54.752 | 8.33 | 16 | 71 | 29 | - | 18 | 0.085 |
| DC4127(3C) | 224 | 4600 | 2300 | 41.275 | 57.935 | 8.33 | 13.5 | 75 | 32 | 3 | 18 | 0.09 |
| DC4445A | 363 | 4300 | 2100 | 44.45 | 61.11 | 8.33 | 16 | 79 | 34 | - | 20 | 0.095 |
| DC4972(4C) | 306 | 3800 | 1900 | 49.721 | 66.381 | 8.33 | 13.5 | 86 | 38 | 4 | 22 | 0.1 |
| DC5476A | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | - | 24 | 0.11 |
| DC5476A(4C) | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | 4 | 24 | 0.13 |
| DC5476B(4C) | 769 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 21 | 92 | 42 | 4 | 24 | 0.18 |
| DC5476C(4C) | 990 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 25.4 | 92 | 42 | 4 | 24 | 0.2 |
| DC5776A | 604 | 3300 | 1600 | 57.76 | 74.42 | 8.33 | 16 | 98 | 44 | - | 26 | 0.11 |
| DC6334B | 806 | 3000 | 1500 | 63.34 | 80 | 8.33 | 21 | 104 | 50 | - | 26 | 0.175 |
| DC7221(5C) | 675 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 13.5 | 115 | 56 | 5 | 30 | 0.14 |
| DC7221B | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | - | 30 | 0.185 |
| DC7221B(5C) | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | 5 | 30 | 0.21 |
| DC7969C(5C) | 2038 | 2400 | 1200 | 79.698 | 96.358 | 8.33 | 25.4 | 124 | 61 | 5 | 34 | 0.28 |
| DC8334C | 2055 | 2300 | 1100 | 83.34 | 100 | 8.33 | 25.4 | 132 | 65 | - | 34 | 0.27 |
| DC8729A | 1250 | 2200 | 1100 | 87.29 | 103.96 | 8.33 | 16 | 134 | 67 | - | 34 | 0.165 |
| DC10323A(3C)* | 1612 | 1800 | 900 | 103.231** | 119.891 | 8.33 | 16 | 155 | 80 | 3 | 40 | 0.205 |
| DC12334C* | 4800 | 1500 | 750 | 123.34 | 140 | 8.33 | 25.4 | 184 | 96 | - | 50 | 0.4 |
| ** | ||||||||||||
| DC12388C(11C) | 4875 | 1500 | 750 | 123.881 | 142.88 | 9.5 | 25.4 | 196 | 96 | 11 | 44 | 0.4 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the dc freewheels?
A: Usually dc cage clutch are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of dc freewheels from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the dc freewheels in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
