AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing thumbnail-1
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing thumbnail-2
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing thumbnail-3
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing thumbnail-4
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing thumbnail-5
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing thumbnail-6
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing photo-1

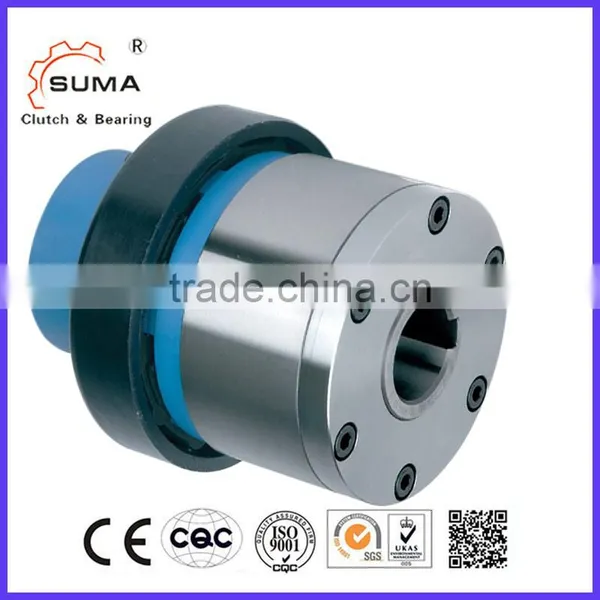

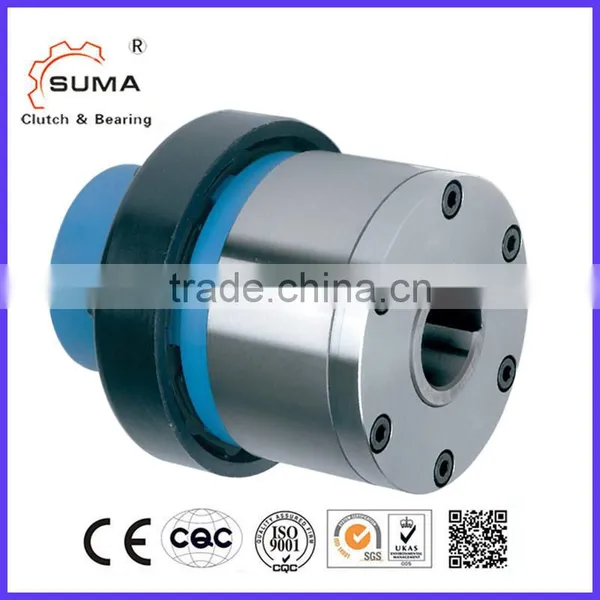

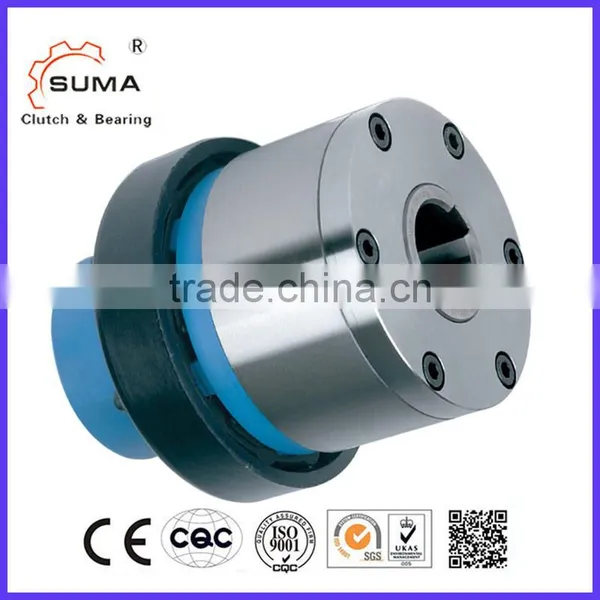

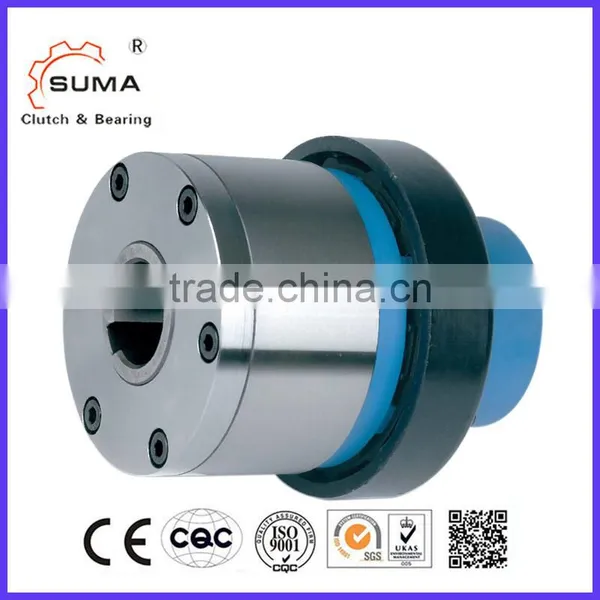

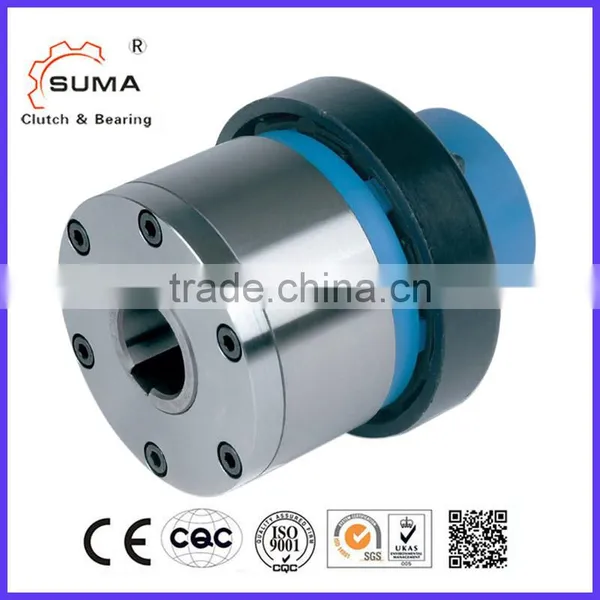

AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing photo-2
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing photo-3
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing photo-4
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing photo-5
AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing photo-6
US$ 10 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA of freewheel clutch bearing
Bore Size:
12, 250
Outside Diameter:
62, 610
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo for freewheel clutch bearing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA of freewheel clutch bearing
Bore Size 12, 250
Outside Diameter 62, 610
Model Number AL15KMSD2
Precision Rating P6
Seals Type Open
Place of Origin Jiangsu, China



 AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

Product Description

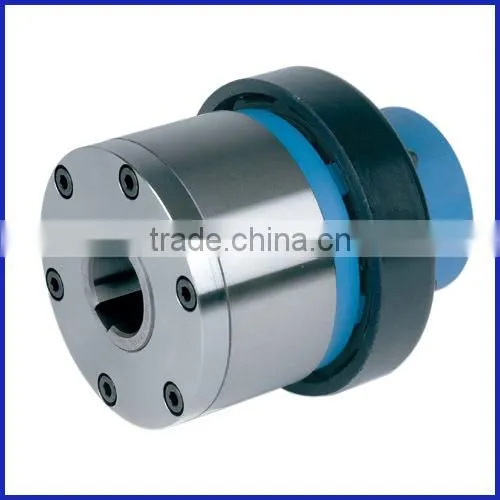

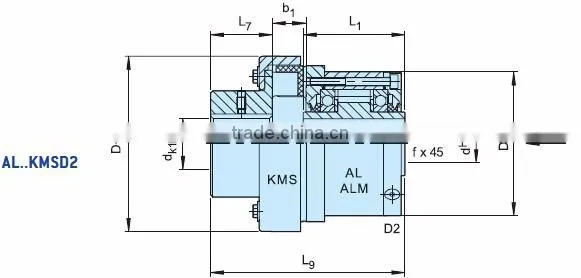

Structure of AL...KMSD2 freewheel clutch bearing

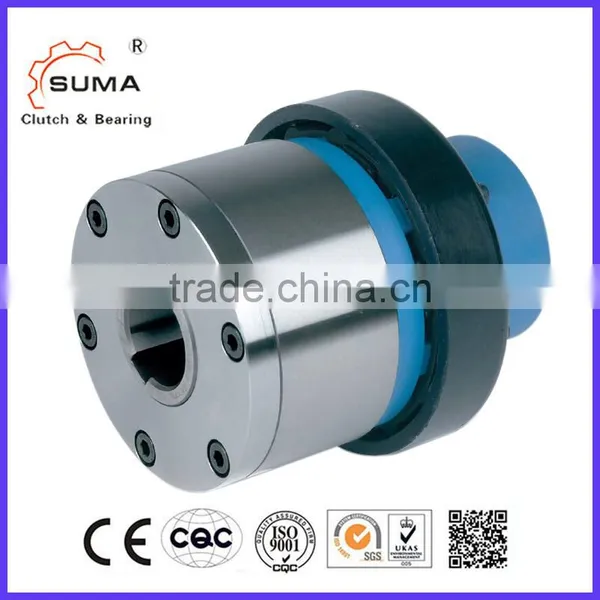

AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

Type AL..KMSD2 is a roller type freewheel, self-contained, sealed and bearing supported, using two 160.. series bearings. Unit is delivered oil lubricated.

In this design, a standard AL freewheel is connected to a KMS flexible coupling for in-line mounting. The KMS type is a rugged coupling, economical and suitable for many applications. D2 cover is used to close the unit. It is equipped with two screws for oil filling, drain and level.

Available Shaft Diameter: 12-250mm

Specification

Model AL ...KMSD2
Materail
 GCr15
Shaft Diameter
 12-250mm
Outer diameter
 78-432mm
Height
 100-430mm
Torque capacity
 50-287500Nm
Inner race overrunning speed 2500-250 r/min
Outer race overrunning speed 6000-1250r/min
Application                    Backstop / Overrunning
Package Carton package / Wooden package
Delivery time  5-7 days
Payment terms TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of al...kmsd2 freewheel clutch bearing for your choice

AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

Type Size     Overrunning speed   Weight
AL..KMSD2 dH7 KMS TKN nimax1) namax2) dKH7 D L1 D7 L7 L9 b
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm]  [mm] [kg]
12 4 50 2500 6000 7…35 62 42 78 40 100 18 2.1
15 6.3 79 1900 6000 12…40 68 52 90 45 116 20 2.7
20 10 125 1600 5600 10…45 75 57 117 48 123.5 17 3.8
25 10 125 1400 4500 10…45 90 60 117 48 126.5 17 4.4
30 16 200 1300 4100 10…55 100 68 129 52 140 19 5.9
35 25 313 1100 3800 15…55 110 74 134 57 155 22 8.1
40 40 500 950 3400 20…60 125 86 155 61 173 26 11.4
45 63 788 900 3200 20…70 130 86 175 67 186 30 13.3
50 100 1250 850 2800 25…75 150 92 196 75 208.5 35 19.1
55 100 1250 720 2650 25…75 160 104 196 75 216.5 35 20.4
60 160 2000 680 2450 30…80 170 114 223 82 243 41 27.1
70 250 3125 580 2150 35…90 190 134 252 89 277.5 47 40.4
80 400 5000 480 1900 45…100 210 144 290 97 305 56 57
90 630 7875 380 1700 60…120 230 158 330 116 346.5 64 87
100 1000 12500 350 1450 75…140 270 182 378 140 386 75 131
120 1600 20000 250 1250 90…160 310 202 432 160 430 85 196
150                                       on request
200
250
ALM..KMSD2 25 16 200 1100 2800 12…50 90 60 117 52 132.5 19 4.4
30 25 313 1000 2500 15…55 100 68 129 57 150 22 5.9
35 40 500 900 2400 18…60 110 74 134 61 163 26 8.1

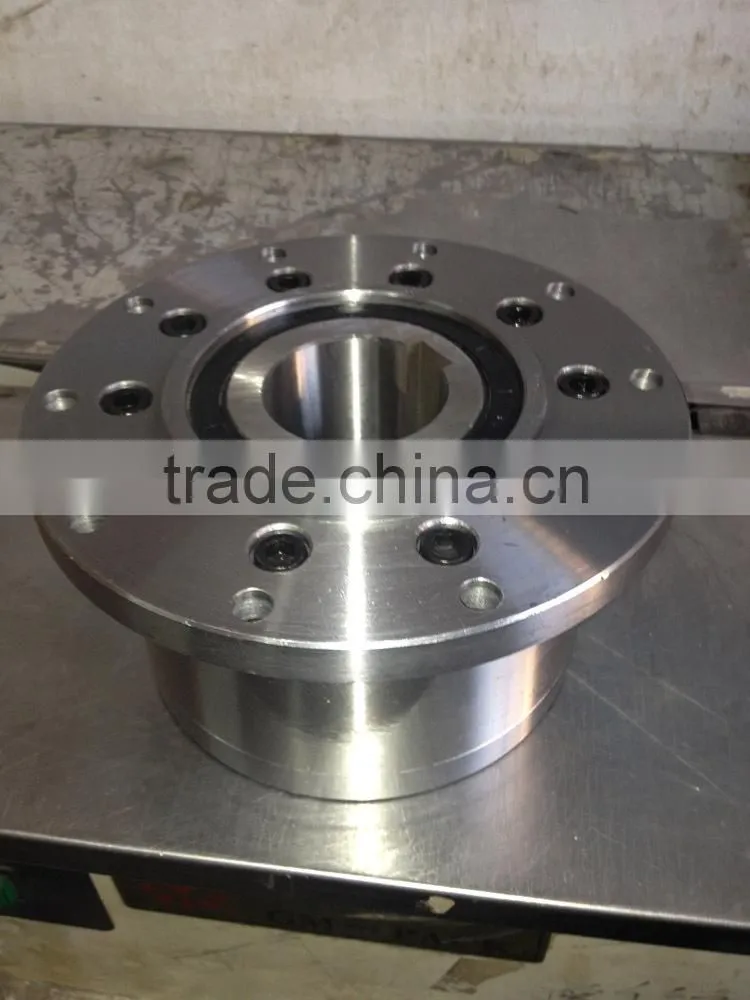

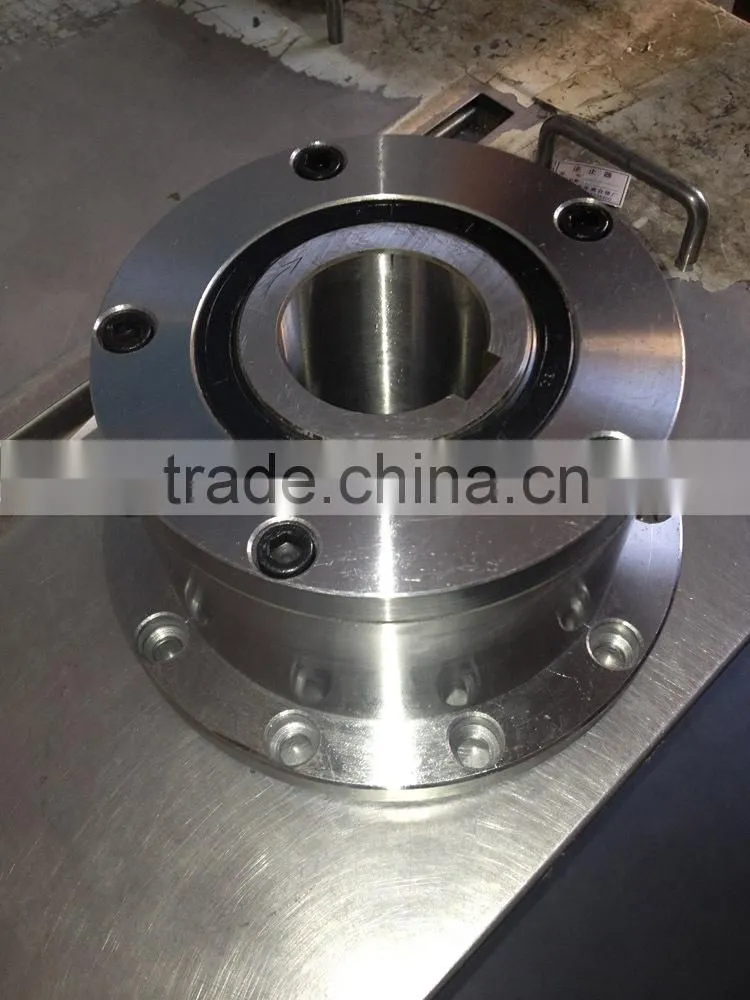

Detailed Images

AL15KMSD2 Overrunning Clutch Factory One Way Roller BearingAL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

AL15KMSD2 Overrunning Clutch Factory One Way Roller BearingAL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

Company Information

 Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

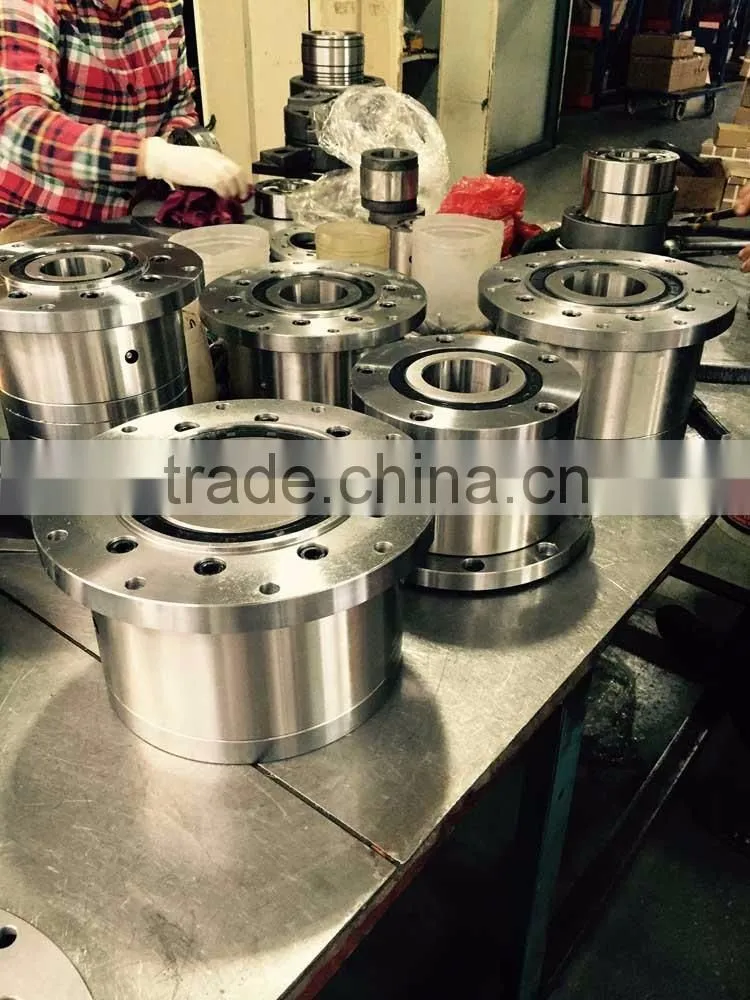

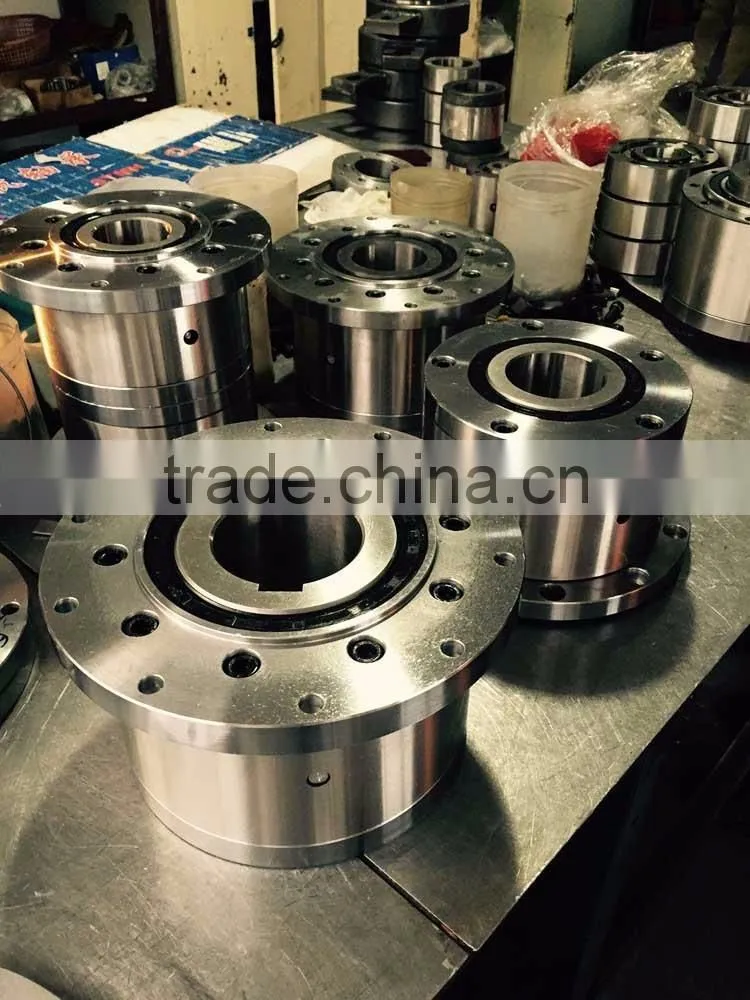

Factory Production

AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

AL15KMSD2 Overrunning Clutch Factory One Way Roller Bearing

After-Sales Service

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the freewheel clutch bearing ?

A: Usually freewheel clutch bearing are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of freewheel clutch bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the freewheel clutch bearing in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.

Any needs, pls feel free to contact me at any time !
