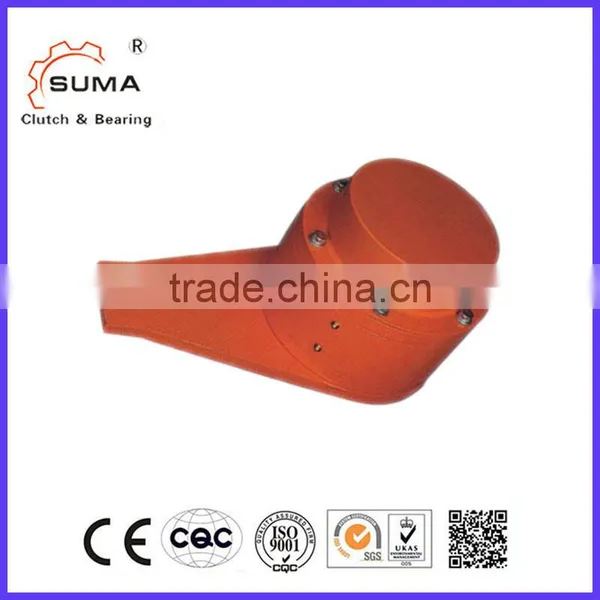

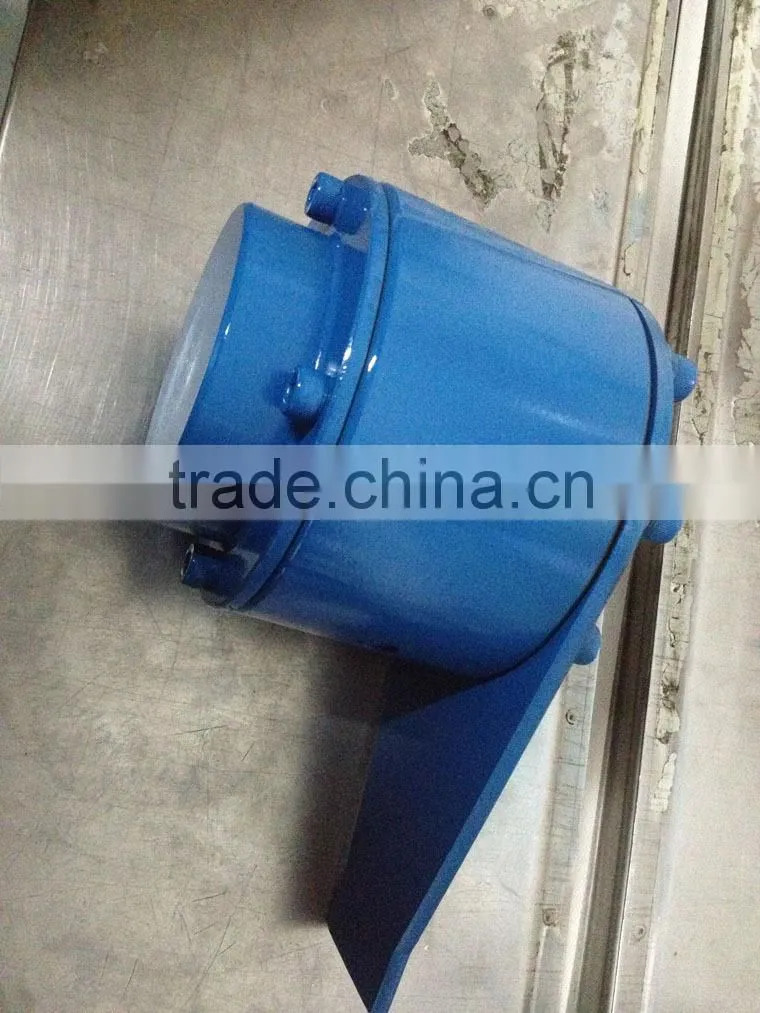

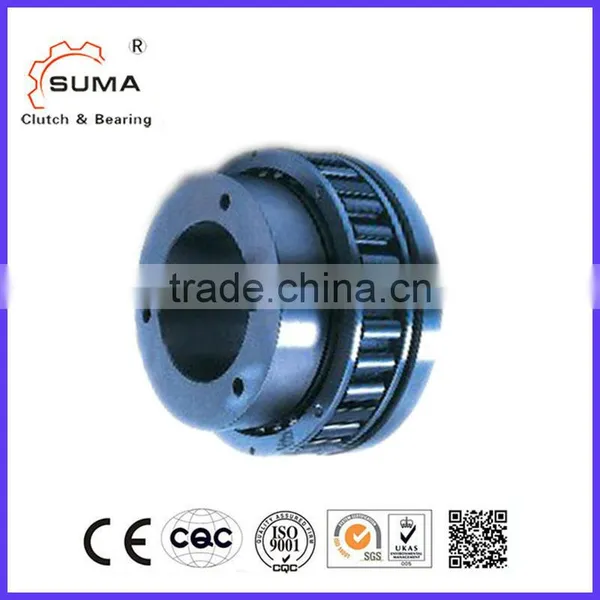

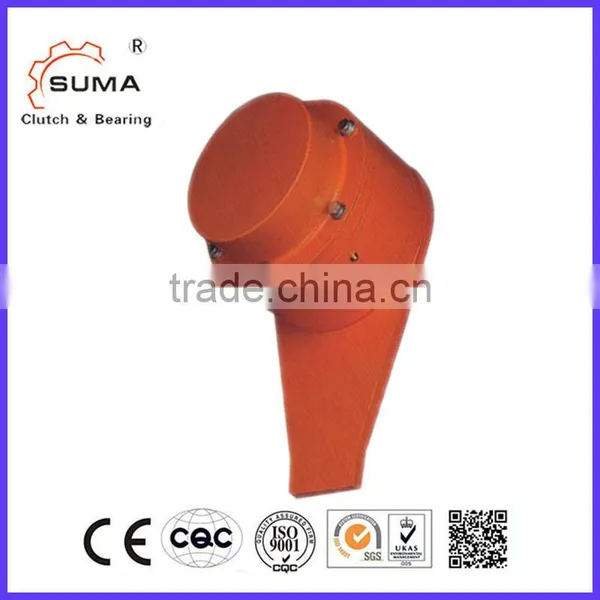

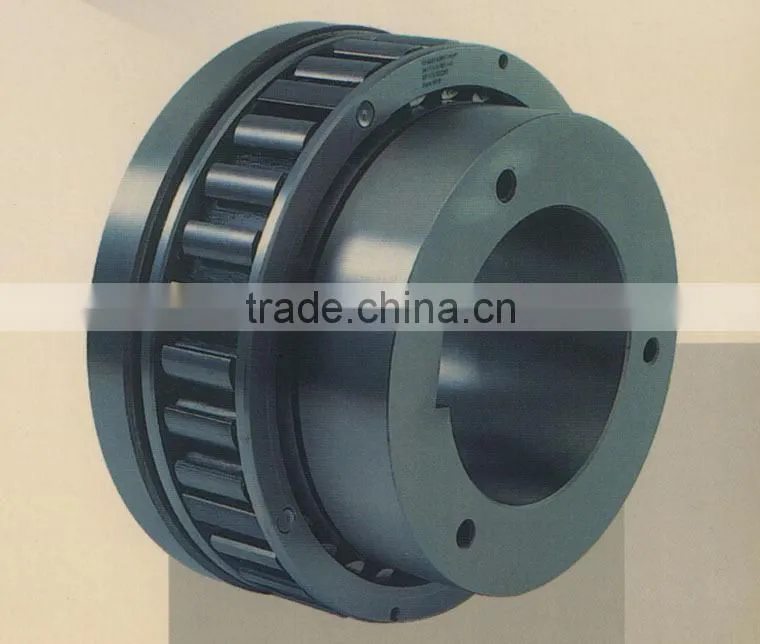

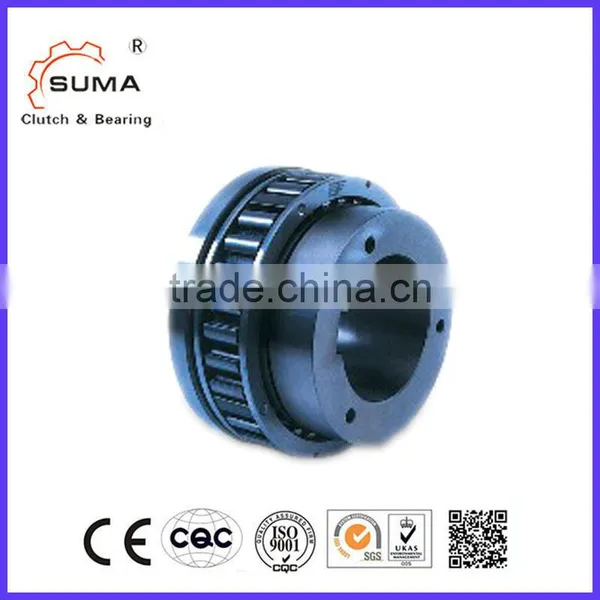

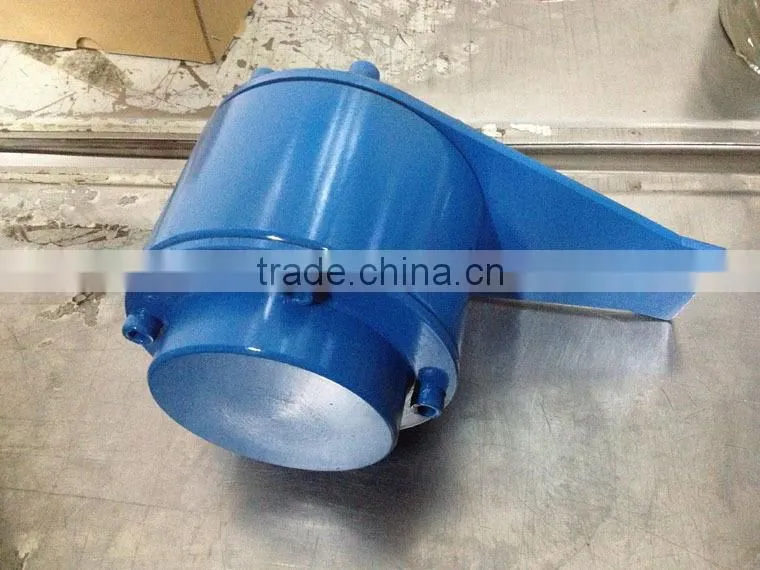

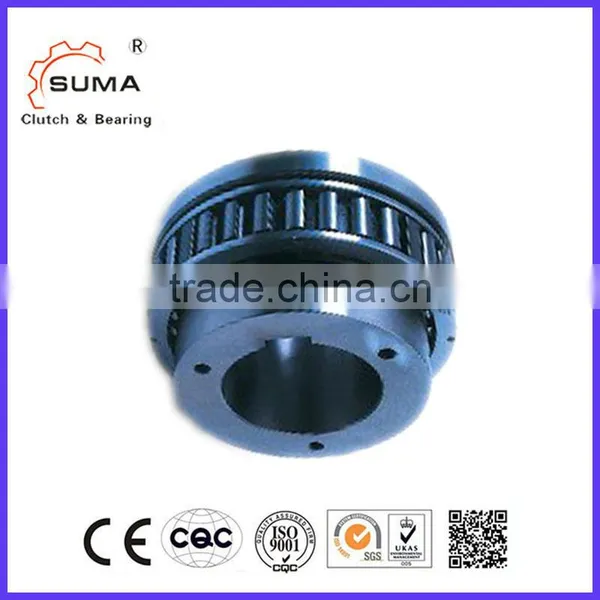

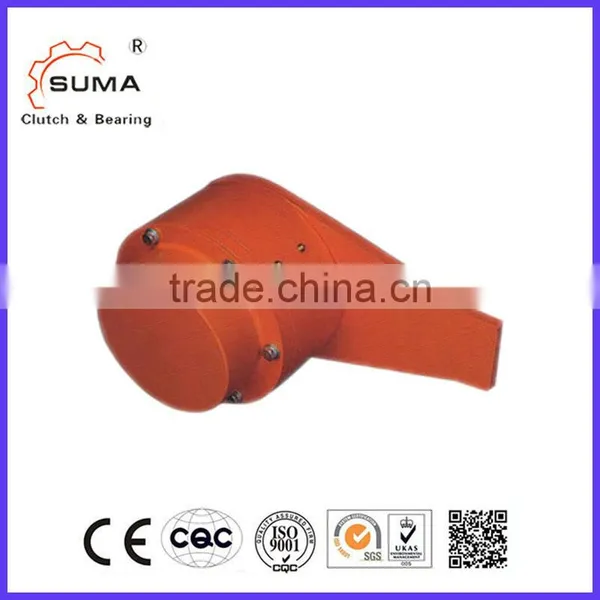

CKNZ-I sprag clutch release bearing for speical backstop application
Features of cknz special backstop bearing
1. Imported sprag and cage can ensure the reliable backstop, and high torque .
2. CKNZ-I sprag backstop can function well both in high speed and low speed condition.
3. Seals are specially designed to prevent from dust and water.
4. Flexible installation occasions, it fits well on high speed shaft, medium speed shaft, or low speed shaft on reducer.
Product name |
special backstop bearing |
Model |
CKNZ-I -3.2 |
Material |
GCr15 |
Inner diameter |
20-25mm |
Outer diameter |
100mm |
Torque arm length |
120mm |
Torque capacity |
2.5Nm |
Width |
92mm |
Structure |
Sprag type |
Application |
reducer, belt conveyor |
Package |
Wooden box |
Payment terms |
TT. L/C, D/A,D/P,Western Union,Paypal |
Delivery time |
5-7 days |

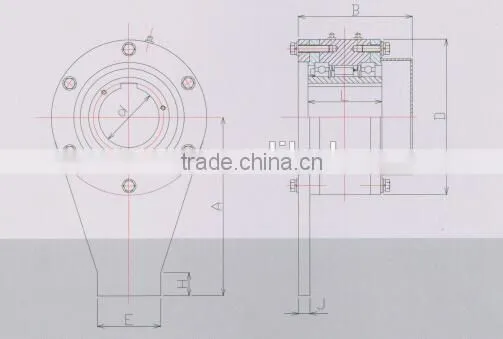

Catalogue of special backstop bearing for your choice
| No. | Model | Bore Range | Torque | A | B | D | E | H | J | L |
| D(mm) | N.m | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 1 | CKNZ-I-3.2 | 20-25 | 320 | 120 | 92 | 100 | 40 | 15 | 5 | 66 |
| 2 | CKNZ-I-7.5 | 25-35 | 750 | 140 | 100 | 113 | 45 | 15 | 6 | 76.9 |
| 3 | CKNZ-I-15.5 | 35-50 | 1550 | 160 | 100 | 125 | 50 | 20 | 6 | 76.9 |
| 4 | CKNZ-I-18.5 | 45-60 | 1850 | 180 | 114 | 140 | 55 | 25 | 10 | 74.4 |
| 5 | CKNZ-I-27 | 55-75 | 2700 | 220 | 135 | 178 | 60 | 30 | 15 | 89.4 |
| 6 | CKNZ-I-39 | 60-95 | 3900 | 270 | 152 | 210 | 80 | 35 | 15 | 91.4 |
| 7 | CKNZ-I-122 | 65-110 | 12200 | 320 | 206 | 260 | 100 | 40 | 20 | 132.4 |
| 8 | CKNZ-I-150 | 70-130 | 15000 | 360 | 218 | 280 | 110 | 45 | 20 | 132.4 |
| 9 | CKNZ-I-255 | 130-160 | 25500 | 430 | 236 | 332 | 120 | 50 | 20 | 151.4 |
| 10 | CKNZ-I-390 | 150-200 | 39000 | 560 | 254 | 420 | 140 | 60 | 20 | 159.4 |
| 11 | CKNZ-I-445 | 200-250 | 44500 | 660 | 262 | 500 | 160 | 80 | 20 | 174.4 |
| 12 | CKNZ-I-815 | 250-320 | 81500 | 760 | 351 | 630 | 180 | 100 | 20 | 213 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the special backstop bearing?
A: Usually special backstop bearing are packed in the wooden box. It can be done as your specfic demands.
Q: How to choose the right type i need?
A: torque capacity, rotation speed and installation way are three factors to decide the model.
Q: Can i get the samples of special backstop bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the special backstop bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
