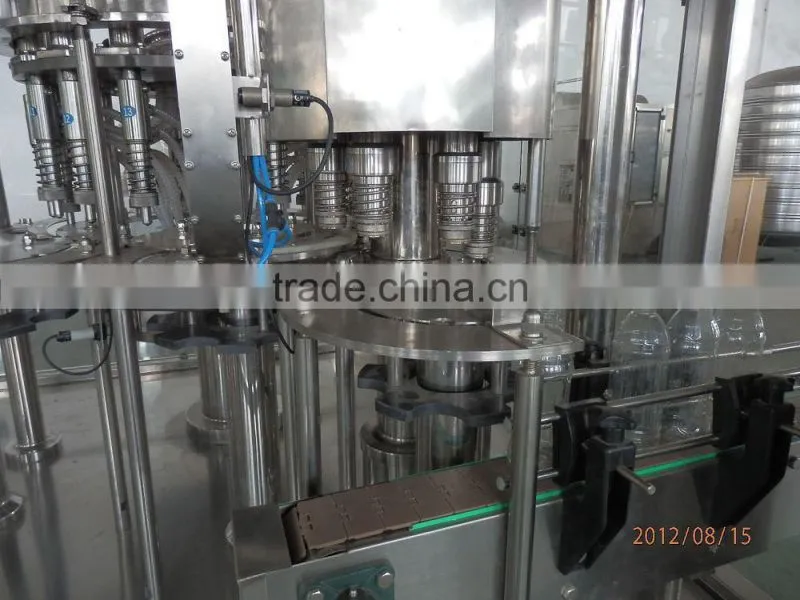

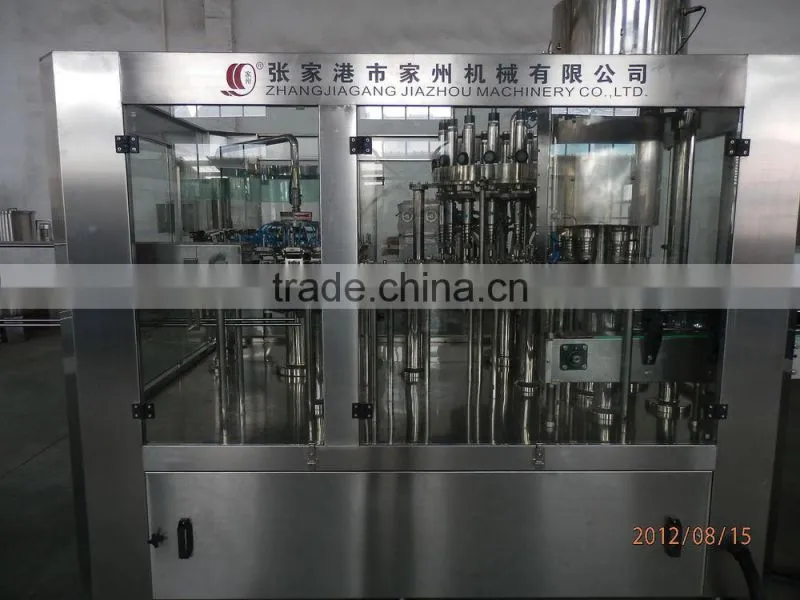

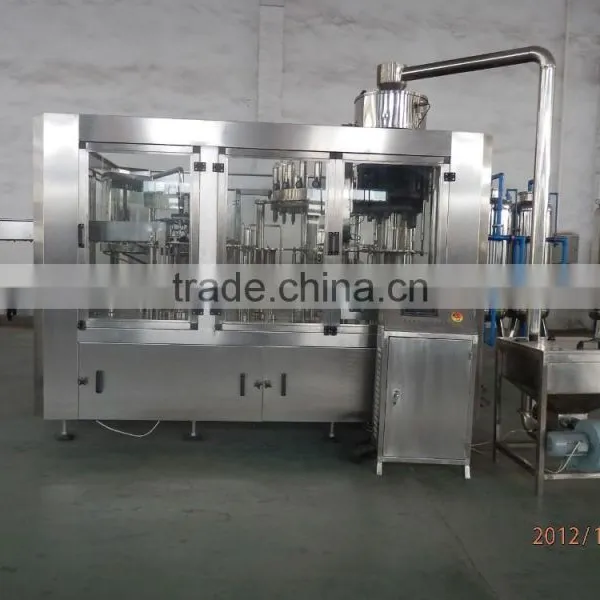

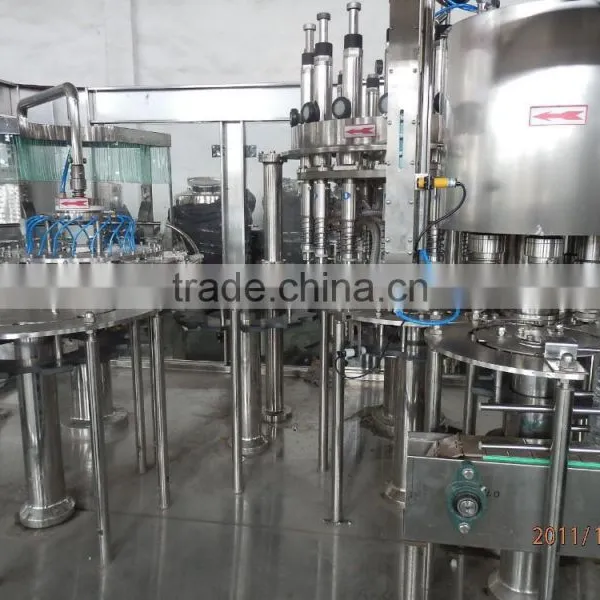

PET Bottle Tea or Juice Filling Machine 3000BPH

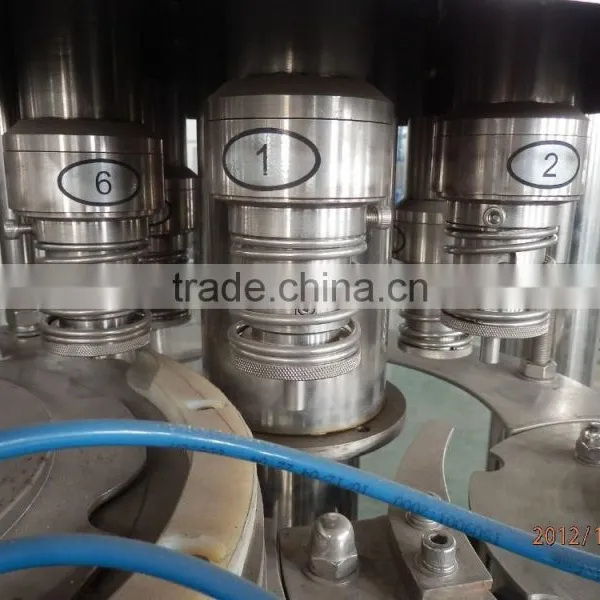

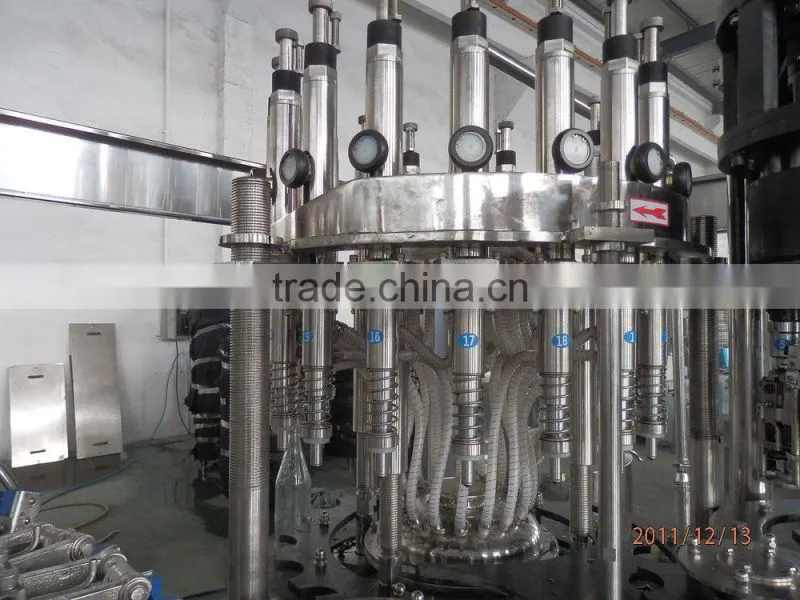

The hot filling machine is adopt block bottle-neck hanging work state design,and be adopt filling vavle rise-drop design
Model |
RCGF16-12-6 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
Production capacity |
3000 |
6000 |
10000 |
14000 |
Filling precision |
<=5mm(Liquid Level) |
|||
Feedback Consumption |
<10 |
|||
Polyester bottle standard(mm) |
Bottle Diameter: φ50-φ92;Herght:150-310 |
|||
Suitable cap shape |
Plastic Screw Cap |
|||
Water pressur of washing bottle(Mpa) |
0.18 |
|||
Wash bottle consumption water(kg/h) |
800 |
1600 |
2500 |
3500 |
Gas source pressure(MPa) |
0.6 |
|||
Gas consumption(m³/min) |
0.3 |
0.3 |
0.4 |
0.5 |
Total Power(kw) |
5.88 |
6.68 |
7.68 |
9.18 |
Total Weight(kg) |
2500 |
3000 |
4000 |
5000 |
Dimensions(L*W*H)(mm) |
2100*1500*2200 |
2450*1800*2200 |
2750*2180*2200 |
3600*2800*2200 |
