Best Price Automatic Pulp Juice Filling Machine Equipment

Best Price Automatic Pulp Juice Filling Machine Equipment thumbnail-1
Best Price Automatic Pulp Juice Filling Machine Equipment thumbnail-2
Best Price Automatic Pulp Juice Filling Machine Equipment thumbnail-3
Best Price Automatic Pulp Juice Filling Machine Equipment thumbnail-4

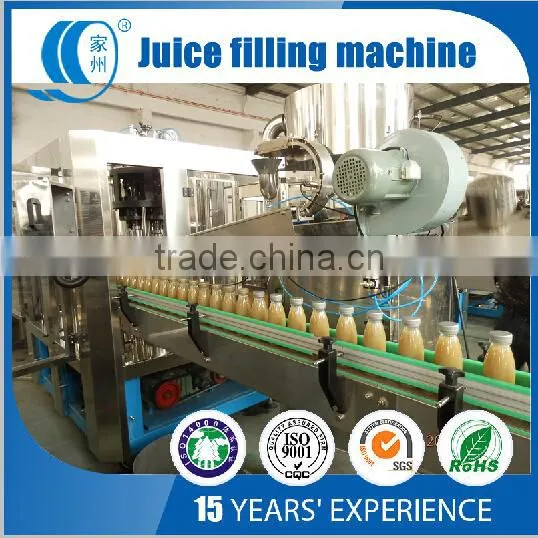

Best Price Automatic Pulp Juice Filling Machine Equipment photo-1

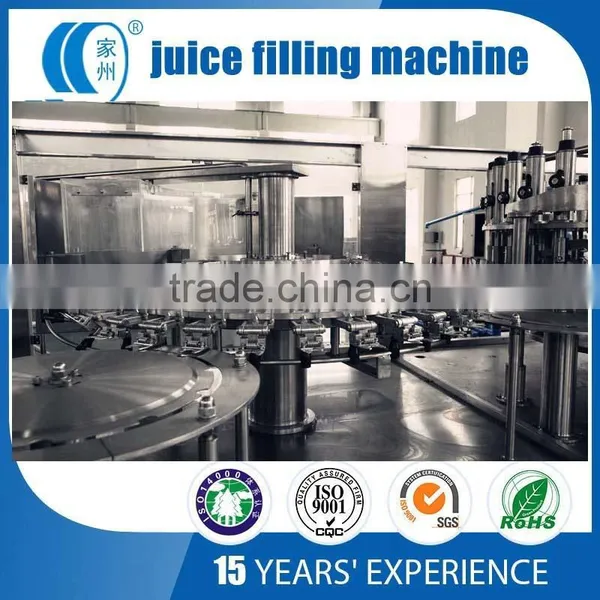

Best Price Automatic Pulp Juice Filling Machine Equipment photo-2

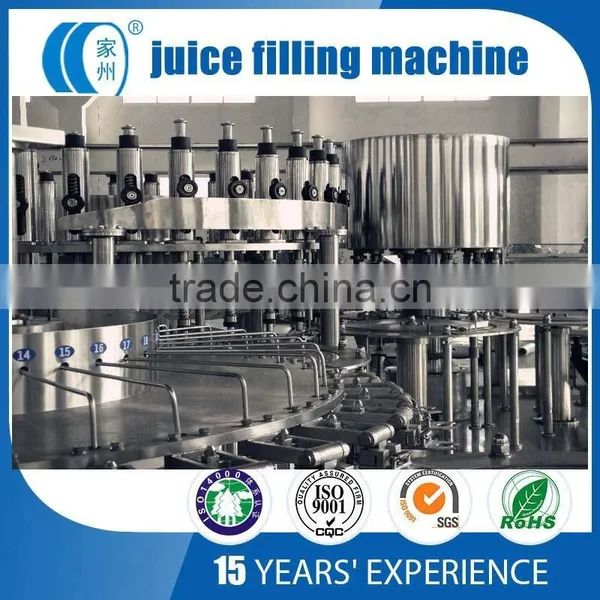

Best Price Automatic Pulp Juice Filling Machine Equipment photo-3

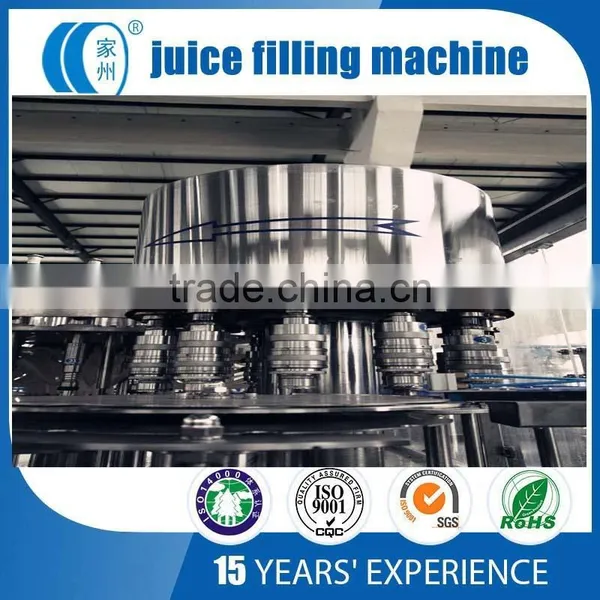

Best Price Automatic Pulp Juice Filling Machine Equipment photo-4
US$ 10,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Juice Or Tea
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for pulp juice filling machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Juice Or Tea
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number RCGF
Dimension(L*W*H) 2400*1600*2300mm
Weight 3T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Best price automatic pulp juice filling machine equipment

Specifications:

 1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the

     utmost extent.

 2. Reasonable structured material distributor and material supply system make the material in constant flow speed,

      constant pressure without frothing.

 3. The high position tank has the characteristic of gas discharge, full sealing, temperature detecting and perfect CIP.

 4. Negative pressure and vacuum filling reduce the bubble from tea drinks, fruit juice, etc.

 5. Sanitary filling heads system are of umbrella structure to reduce frothing, high filling speed.

 6 .Perfect filling temperature control system.

 7. To realize stable running, convenient for maintenance and long life, all the electric and pneumatic components are from

      world famous  manufacturers



Product display Best price automatic pulp juice filling machine equipment

Best price automatic pulp juice filling machine equipment



Best price automatic pulp juice filling machine equipment



Best price automatic pulp juice filling machine equipment

Product Parameters Best price automatic pulp juice filling machine equipment

Model

RCGF12-12-6

RCGF16-16-6

RCGF18-18-6

RCGF24-24-8

RCGF32-32-8

RCGF40-40-10

Production Capability(b/h)(500ml)

3000

4000

5000

8000-10000

10000-12000

13000-15000

Applicable Bottle Type

Bottle Diameter:Ø50- Ø100mm;  Height:150-320mm;  Volume:330-1500ml

Applicable Cap Shape

Plastic Screw Cap

Gas Source Pressure(Mpa)

0.6

Gas Consumption(m³/min)

0.2

0.2

0.4

0.4

0.5

0.55

Total Power(kw)

4.6

4.6

5.4

6.4

8.07

9.56

Total Weight(kg)

2500

3200

3800

5200

6500

8000

Dimension(L×W×H)(mm)

2350×1700×2150

2600×1830×2030

2830×2030×2030

3220×2300×2600

3450×2510×2710

3800×2800×2710
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Best price automatic pulp juice filling machine equipment
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Best price automatic pulp juice filling machine equipment
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Best price automatic pulp juice filling machine equipment
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Best price automatic pulp juice filling machine equipment
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Best price automatic pulp juice filling machine equipment
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Best price automatic pulp juice filling machine equipment
