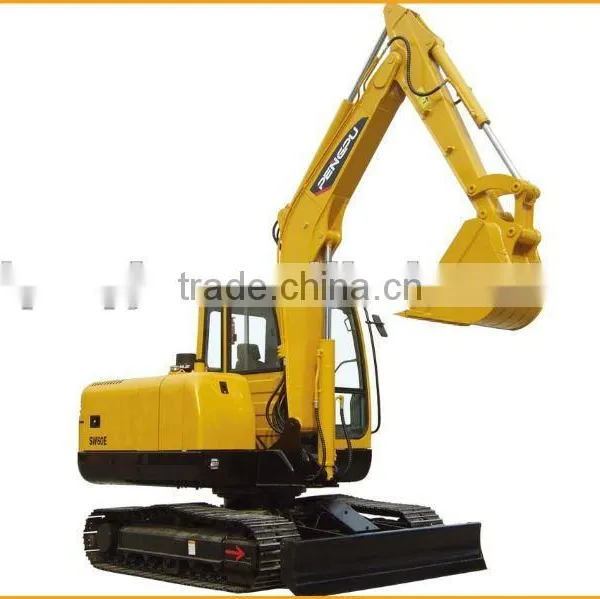

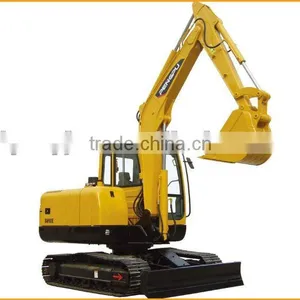

21ton Heavy Excavator

Name: 21ton Heavy Excavator
Brand: PENGPU
SKU: 140742662

US$ 1 - 1 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

PENGPU

Model Number:

SW210E

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

According to the contract

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name PENGPU

Model Number SW210E

Condition New

Moving Type Crawler Excavator

Operating Weight 21470kg

Bucket capacity 0.9m3

Maximum Digging Height 9489mm

Maximum Digging Depth 6638mm

Machine Weight 21470kg

Max Digging Radius 9910mm

Specifications

1.Bucket capacity 0.9M3
2.Track width 600/800mm
3.Original Cummins engine
4.CE certificate
5.Japan-made control system

SW210E EXCAVATOR

NO.	DESCRIPTION			SPECIFICATON
1	Main machine
	(1)	Working weight		21470kg
	(2)	Bucket capacity		0.90M3
	(3)	Track width		600mm/800mm
	(4)	Transport dimension		954029803020(mm)
	(5)	Overall dimension	Length of track on ground	3650mm
			Ground clearance of counter weight	1070mm
			Total length	9540mm
			Total height	3130mm
			Total width	2980mm
			Track gauge	2380mm
			Min. ground clearance	490mm
			Track width	600mm
			Track height	945mm
			Tail swing radius	2810mm
	(6)	Working range	Max. working radius	9910mm
			Max. digging depth	6638 mm
			Max. vertical digging depth	6057 mm
			Max. digging height	9489mm
			Max. dump height	6672mm
			Min. swing radius	3650mm
	(7)	Performance	Ground pressure	44Kpa/35Kpa
			Swing speed	12r/min
			Travelling speed high/low	5.4/3.1km/h
			Grade ability	35°
			Noise inside the cab	≤80db(A)
			Fuel tank	360L

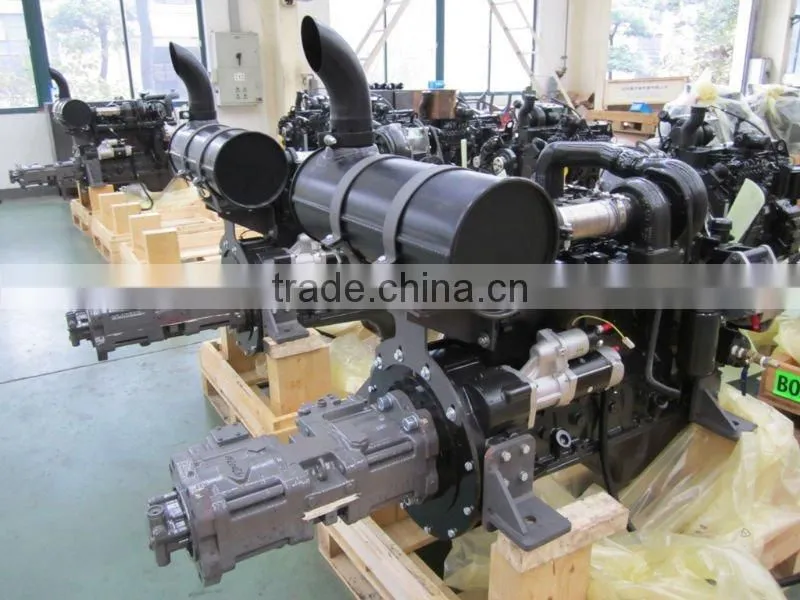

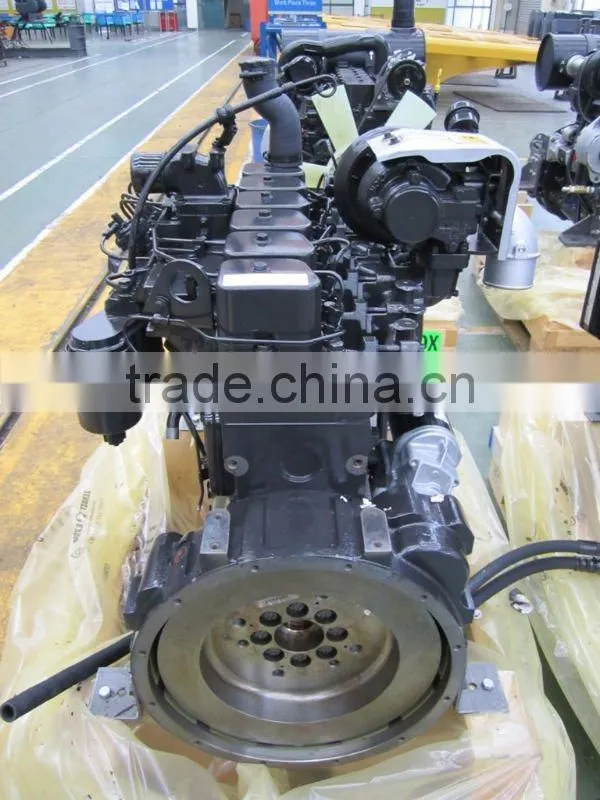

	(5)	Engine	Company	Cummins 6BTA5.9-C
			Type	6 cylinder, inline, turbocharged
			Rated horsepower	112KW/1950rpm
			Bore-stroke	102*120mm
			Displacement	5.9L
			Min. fuel consumption	≤228g/kw.h
			Max. torque / revolution	597Nm/1600rpm
			Battery	VARTA 160A.H
