Specifications
total weight:33400kgengine: Cummins C8.3(6CTAA)
rater power: 168kw(229hp)/2000rpm
Japan NABTESO/TONG MUYUNG undercarriage

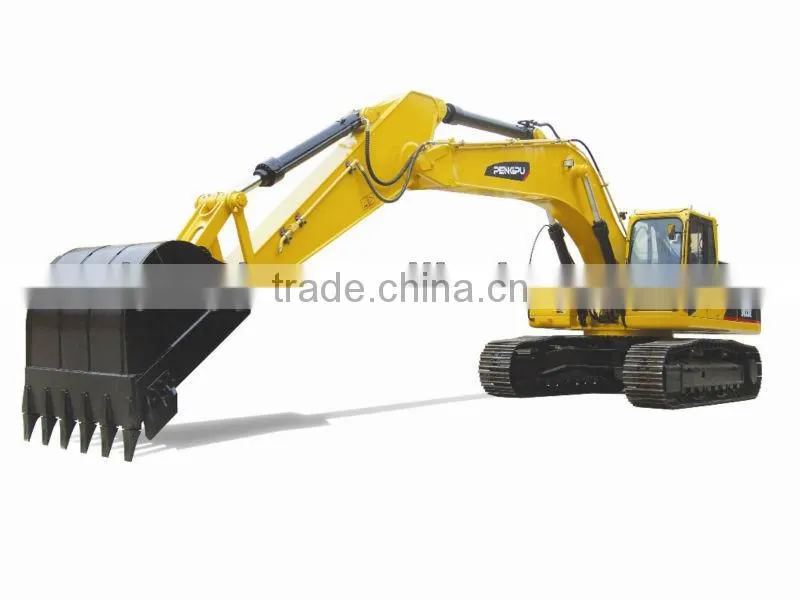

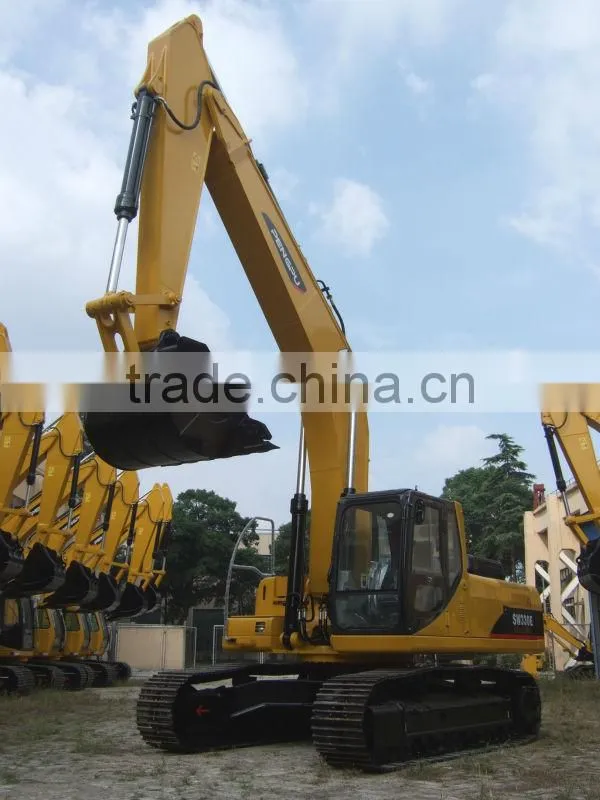

SW330E HYDRAULIC EXCAVATOR
MAIN FEATURES
1. updated cab, newly-designed internal decorations, excellent visibility.

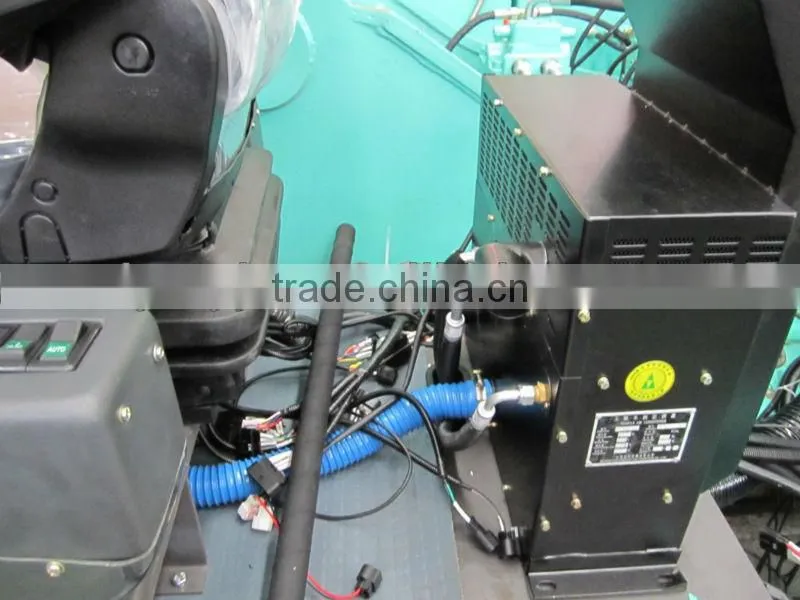

2. powerful air-conditioning ensure rapid cooling and heating function.
3. imported GRAMMER suspension seat is adjustable.
4. reinforced column type rigid cab can be mounted with ROPS and FOPS.
5. effective pilot valve is adopted for precise movements and low actuating effort.
6. electronic fuel control integrated with Auto Kick Down function, fingertip type controls translate comfortable and easy.
7. lately intelligent display features immediate vital machine function monitoring, operating parameters clear at a glance.

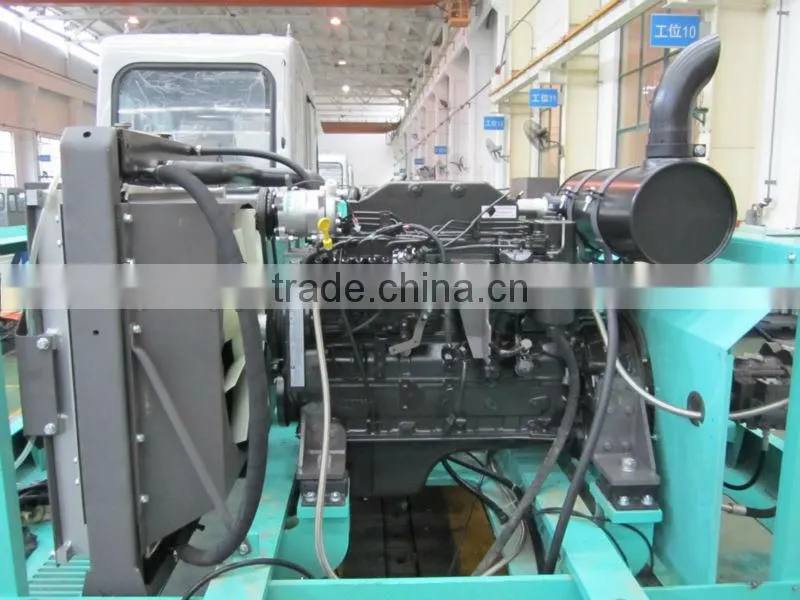

8. Cummins turbocharged engine (original)

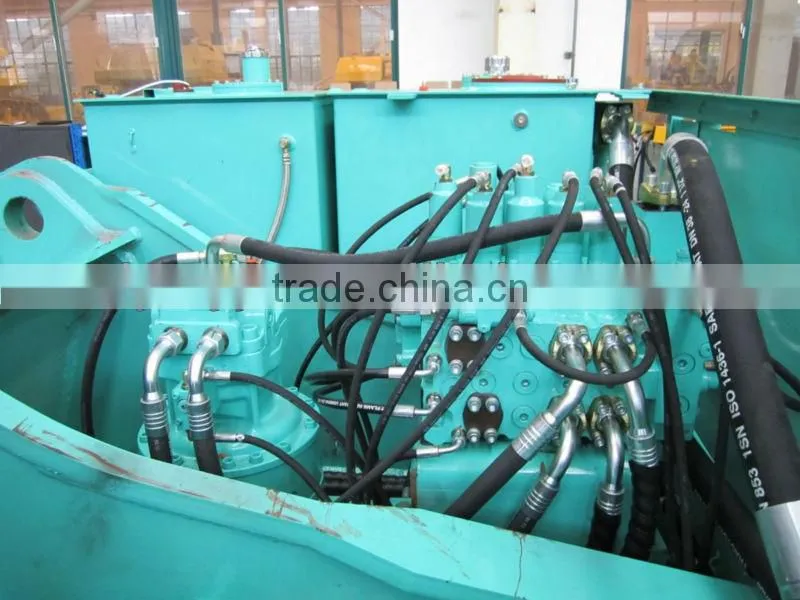

9. KAWASAKI Hydraulic system (original)
10. JAPAN NABTESCO/TONG MYUNG Undercarriage
11. high strengthened undercarriage
12. revolving frame with excellent stability
13. optimized boom and arm design
SW330E-1 TECHNICAL PARAMETERS
ITEM |
PARAMETERS |
|
MAIN TECHNICAL DATAS |
|
|
SPECIFICATION |
Operating weight of total machine |
33400kg |
Bucket capacity Note: forced bucket is for option (optional forced arm) |
1.45M3 |
|
Width of track shoes |
600mm |
|
OVERALL DIMENSIONS |
Length of track on ground |
3730mm |
Length of track |
4660mm |
|
Ground clearance of countrer weight |
1180mm |
|
Tail swing radius |
3430mm |
|
Rear length |
3402mm |
|
Total length |
11250mm |
|
Total height(boom) |
3430mm |
|
Total width |
3190mm |
|
Track gauge |
2590mm |
|
Track gauge |
540mm |
|
Width of track shoes |
600mm |
|
Height of track shoes |
1040mm |
|
Total height (cab) |
3135mm |
|
Top width |
3000mm |
|
WORKING RANGE |
Max. working radius |
11220mm |
Max. digging depth |
7490mm |
|
Max. vertical digging depth |
6520mm |
|
Max. digging height |
10390mm |
|
Max. dump height |
7320mm |
|
Min. swing radius |
4295mm |
|
PERFORMANCE |
Ground pressure |
68.5Kpa |
Swing speed |
11r/min |
|
Travel speed high/low |
4.5/3.1km/h |
|
gradeability |
70% |
|
Bucket digging force |
185KN |
|
Arm digging force |
160KN |
|
ENGINE |
Model |
Cummins C8.3(6CTAA) |
Type |
6-cylinders, 4-stroke, turbocharger and aftercooler |
|
Rated power |
168kw/2000rpm |
|
|
HYDRAULIC SYSTEM |
Type of hydraulic pump |
Variable flow axial piston pump*2+gear pump*1 |
Method of power adjustment |
Gross power adjustment + variable power + negative flow control |
|
Max flow |
2*271L/min |
|
Main safety valve adjusted power |
31.4/33.3Mpa |
|
Travel axial piston motor |
2*variable flow axial piston motor |
|
Motor for swing |
1*fixed flow axial piston motor |
|
