Your Best China Supplier SW330E Crawler Excavators

Name: Your Best China Supplier SW330E Crawler Excavators
Brand: PENGPU
SKU: 140742668

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

PENGPU

Model Number:

SW330E

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

According to the contract

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name PENGPU

Model Number SW330E

Condition New

Moving Type Crawler Excavator

Operating Weight 33400kg

Bucket capacity 1.45m3, 1.45M3

Maximum Digging Height 10390mm

Maximum Digging Depth 7490mm

Machine Weight 33400kg

Max Digging Radius 11220mm

Certification ce

After-sales Service Provided Overseas service center available

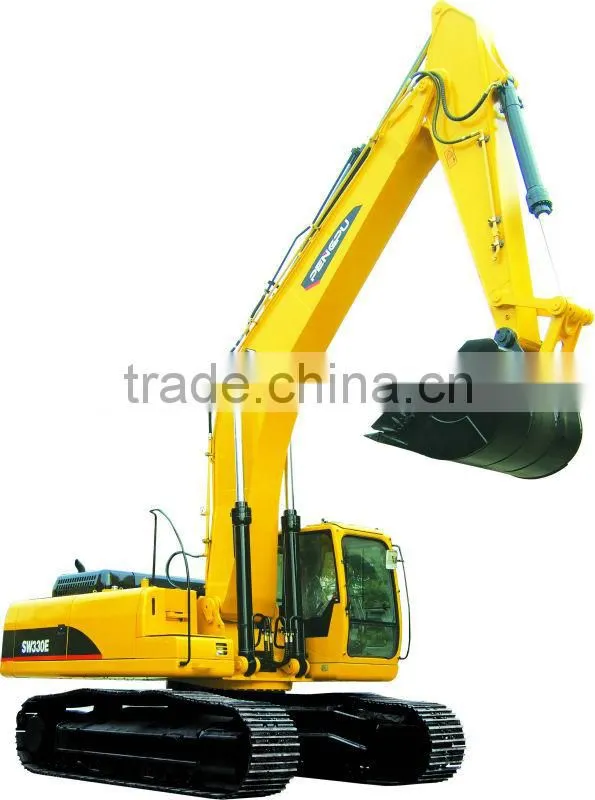

SW330E EXCAVATOR

NO.	DESCRIPTION			SPECIFICATON
	Main machine
	(1)	Working weight		33400kg
	(2)	Bucket capacity		1.45M3
	(3)	Track width		600mm
	(4)	Transport dimension		1125031903430(mm)
	(5)	Overall dimension	Length of track on ground	3730mm
			Ground clearance of counter weight	1180mm
			Tail swing radius	3430mm
			Total length	11250mm
			Total height	3430mm
			Total width	3190mm
			Track gauge	2590mm
			Min. ground clearance	540mm
			Track width	600mm
			Track height	1040mm
	(6)	Working range	Max. working radius	11220mm
			Max. digging depth	7490mm
			Max. vertical digging depth	6520mm
			Max. digging height	10390mm
			Max. dumping height	7320mm
			Min. swing radius	4295mm
	(7)	Performance	Ground pressure	68.5Kpa
			Swing speed	11r/min
			Travelling speed high/low	4.5/3.1km/h
			Grade ability	35°
			Noise inside the cab	≤80db(A)
			Fuel tank	545L

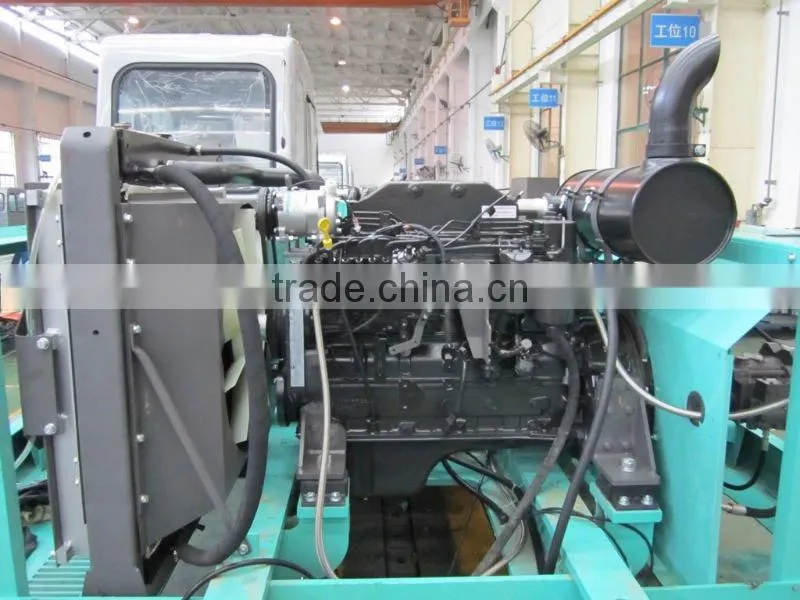

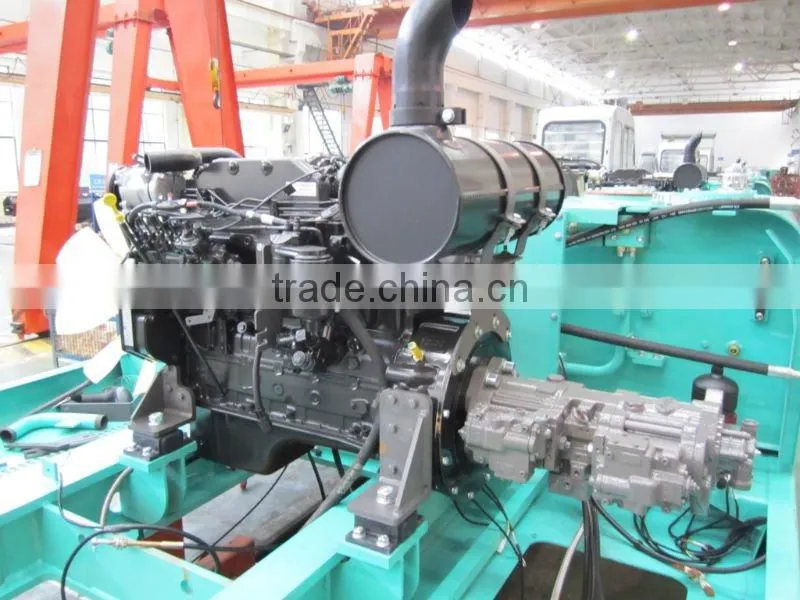

	(5)	Engine	Company	Cummins C8.3(6CTAA)
			Type	6 cylinder, inline, turbocharged
			Rated horsepower	168KW/2000rpm
			Bore-stroke	114*134.9mm
			Displacement	8.29L
			Min. fuel consumption	≤228g/kw.h
			Max. torque /revolution	975Nm/1400rpm.
