SW70E Excavator in Low Price

Name: SW70E Excavator in Low Price
Brand: PENGPU
SKU: 140742674

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

PENGPU

Model Number:

SW70E

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

According to the contract

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name PENGPU

Model Number SW70E

Condition New

Moving Type Crawler Excavator

Operating Weight 6500kg

Bucket capacity 0.26m3, 0.26M3

Maximum Digging Height 6120mm

Maximum Digging Depth 3930mm

Machine Weight 6500kg

Max Digging Radius 6230mm

Certification ce

After-sales Service Provided Overseas service center available

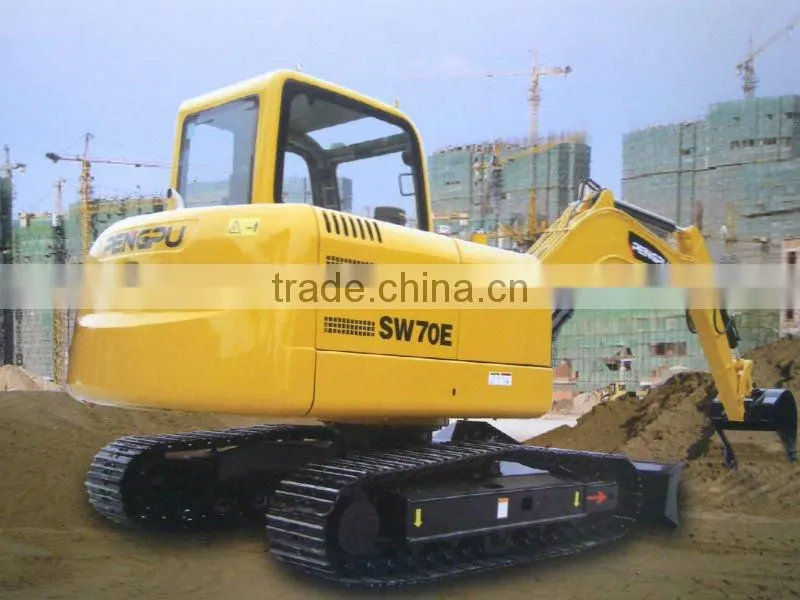

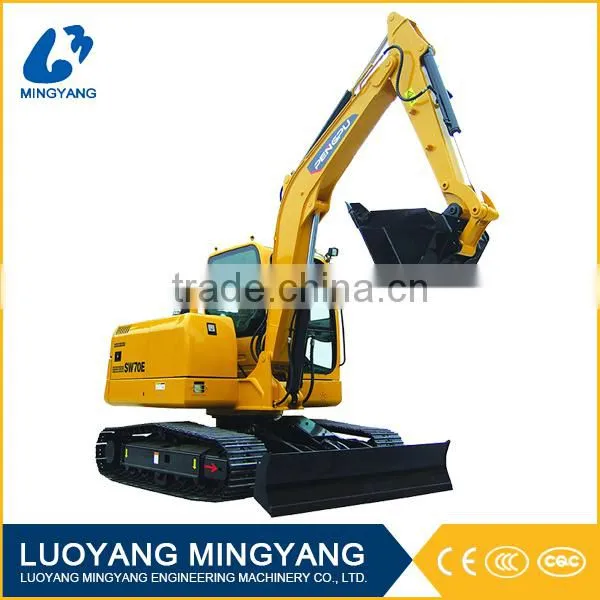

SW70E EXCAVATOR

NO.	DESCRIPTION			SPECIFICATON
1	Main machine
	(1)	Working weight		6500kg
	(2)	Bucket capacity		0.26M3
	(3)	Track width		400mm
	(4)	Transport dimension		600026602150mm
	(5)	Overall dimension	Length of track on ground	2140mm
			Length of track	2735mm
			Ground clearance of counter weight	720mm
			Tail swing radius	1750mm
			Total length	6000mm
			Total height	2660mm
			Total width	2150mm
			Track gauge	1750mm
			Min. ground clearance	340mm
			Track width	400mm
			Track height	610mm
			Top width	2000mm

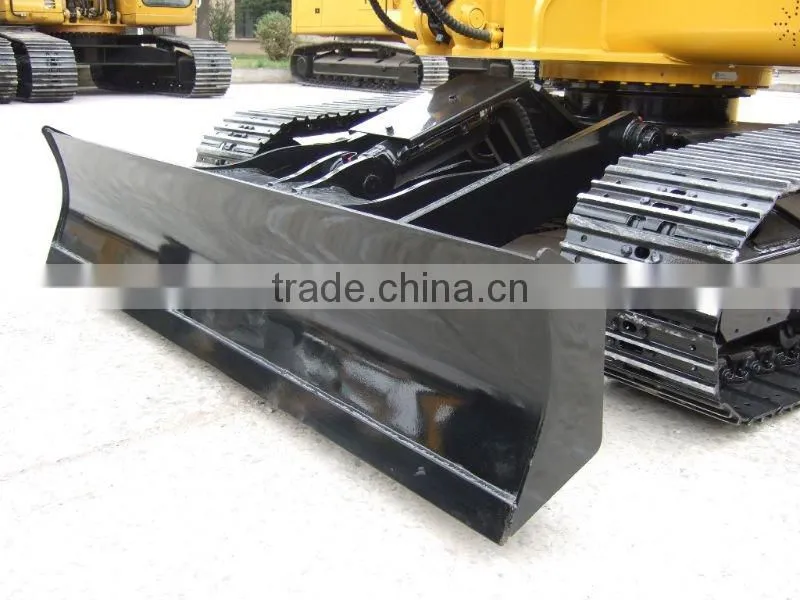

			Dozer	2150*432mm
	(6)	Working range	Max. working radius	6230mm
			Max. working radius on the ground	6190mm
			Max. digging depth	3930mm
			Max. digging height	6120mm
			Max. dump height	4250 mm
			Min. swing radius	2310mm
	(7)	Performance	Ground pressure	35Kpa
			Swing speed	10r/min
			Travelling speed high/low	4.3/2.3km/h
			Grade ability	35°
			Noise inside the cab	≤85db(A)
			Fuel tank	120L

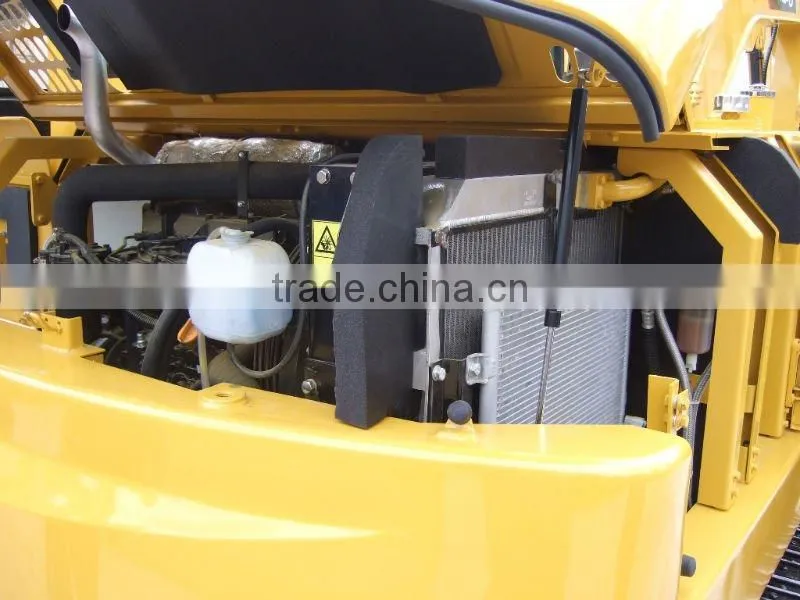

	(5)	Engine	Company	YANMAR 4TNV98-SYU
			Type	4 cylinder, inline, turbocharged
			Rated horsepower	42.9KW/2200rpm
			Bore-stroke	98*110mm.
			Displacement	3.318L
			Min. fuel consumption	≤244g/kw.h
			Max. torque and revolution	254Nm/2400RPM
