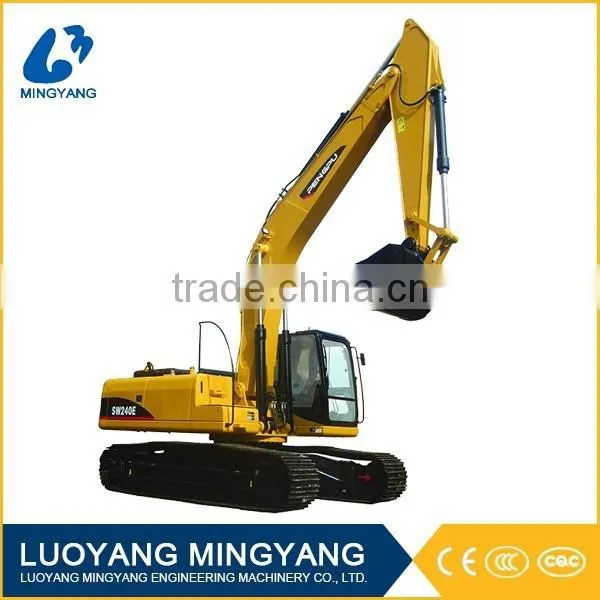

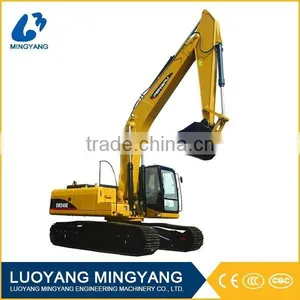

Hydraulic Excavator SW240E
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
PengPu
Model Number:
SW240E
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
PengPu
Model Number
SW240E
Condition
New
Moving Type
Crawler Excavator
Operating Weight
24200kg
Bucket capacity
1.1m3
Maximum Digging Height
9730
Maximum Digging Depth
6930
Machine Weight
24200kg
Max Digging Radius
10360
After-sales Service Provided
Engineers available to service machinery overseas
Cummins Turbocharged engine(original)
SW240E EXCAVATOR SPECIFICATION
NO. |
DESCRIPTION |
SPECIFICATON |
||
|
|
Main machine |
|
||
(1) |
Working weight |
24200kg |
||
(2) |
Bucket capacity |
1.1M3 |
||
(3) |
Track width |
600mm/800mm |
||
(4) |
Transport dimension |
10055*2990*3280(mm) |
||
(5) |
Overall dimension |
Length of track on ground |
3840mm |
|
Ground clearance of counter weight |
1070mm |
|||
Tail swing radius |
2950mm |
|||
Total length |
10045mm |
|||
Total height |
3280mm |
|||
Total width |
2990mm |
|||
Track gauge |
2390mm |
|||
Min. ground clearance |
460mm |
|||
Track width |
600/800mm |
|||
Track height |
950mm |
|||
(6) |
Working range |
Max. working radius |
10360mm |
|
Max. digging depth |
6930mm |
|||
Max. vertical digging depth |
6320mm |
|||
Max. digging height |
9730mm |
|||
Max. dumping height |
6810mm |
|||
Min. swing radius |
3920mm |
|||
(7) |
Performance |
Ground pressure |
48Kpa/37.5Kpa |
|
