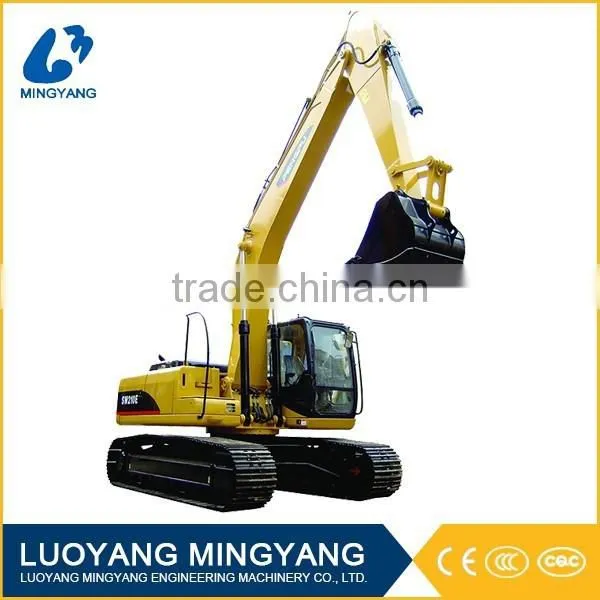

Help CenterHydraulic Excavator SW210E
Related Products
Cummins turbocharged engine(original)
*Top class technology of the world with powerful drive and low noise
*The total fuel consumption of the machine is evidently lower than other machines of its kind, compliant with Tier 2 emission standards, energy saving and environmental friendly
*Imported cyclone air cleaner prolongs lifetime, redues the maintenance cost
High strengthened undercarriage
*The strengthened X-shape box structure fraame is wholly welded and connected by the low stress, high strength steel plate to ensure the strength and reliability
*High strengthened structure for rough terrain and lengthened type for swampy place

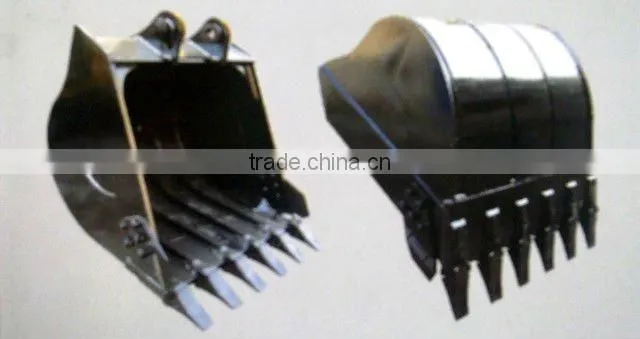

Quality bucket
The cutting blade adopts high-strenght wear-resistance steel plate, bucket teeth and side teeth are made of special material by professional refined foundry, which greatly improves bucket waribility
SW210E EXCAVATOR SPECIFICATION
NO. |
DESCRIPTION |
SPECIFICATON |
||
|
1 |
Main machine |
|
||
(1) |
Working weight |
21470kg |
||
(2) |
Bucket capacity |
0.90M3 |
||
(3) |
Track width |
600mm/800mm |
||
(4) |
Transport dimension |
9540*2980*3020(mm) |
||
(5) |
Overall dimension |
Length of track on ground |
3650mm |
|
Ground clearance of counter weight |
1070mm |
|||
Total length |
9540mm |
|||
Total height |
3130mm |
|||
Total width |
2980mm |
|||
Track gauge |
2380mm |
|||
Min. ground clearance |
490mm |
|||
Track width |
600mm |
|||
Track height |
945mm |
|||
Tail swing radius |
2810mm |
|||
(6) |
Working range |
Max. working radius |
9910mm |
|
Max. digging depth |
6638 mm |
|||
Max. vertical digging depth |
6057 mm |
|||
Max. digging height |
9489mm |
|||
Max. dump height |
6672mm |
|||
Min. swing radius |
3650mm |
|||
(7) |
Performance |
Ground pressure |
44Kpa/35Kpa |
|
