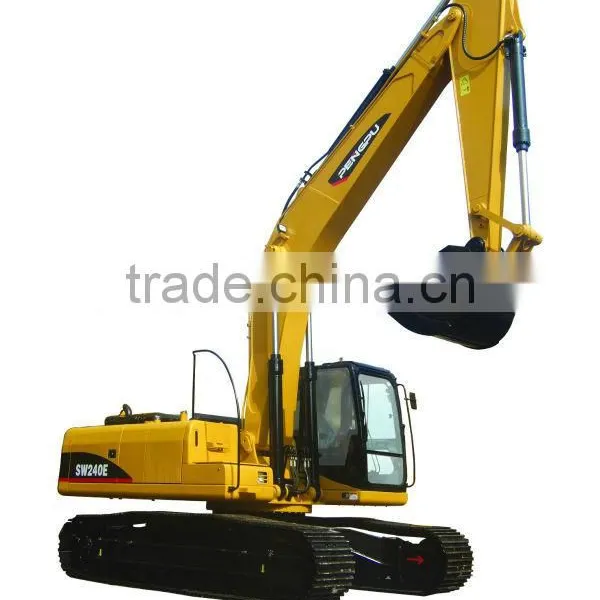

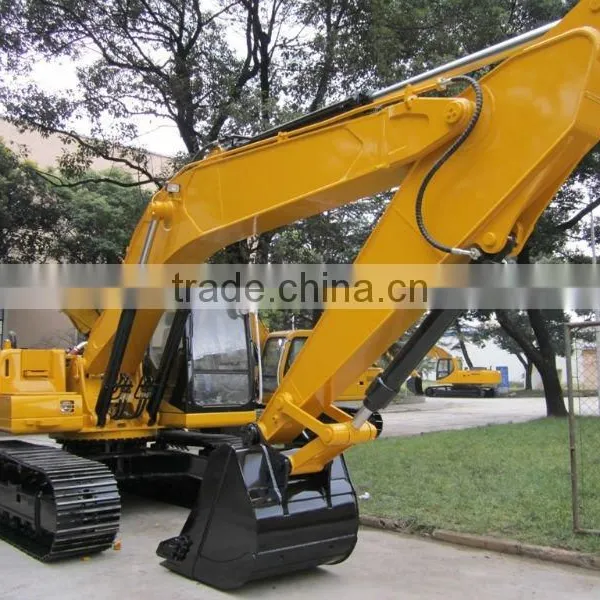

Pengpu SW240E-1 Hydraulic Crawler 24t Excavator

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

YTO

Model Number:

SW240E-1

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name YTO

Model Number SW240E-1

Condition New

Moving Type Crawler Excavator

Operating Weight 24200kg

Bucket capacity 1.1m3

Maximum Digging Height 9730mm

Maximum Digging Depth 6930mm

Machine Weight 24200kg

Max Digging Radius 10360mm

After-sales Service Provided Overseas third-party support available

Specifications

total weight:24200kg
engine: Cummins B5.9-C(6BTAA5.9-C178)
rater power: 133kw(180hp)/2200rpm
forced bucket is optional

SW240E-1 HYDRAULIC EXCAVATOR

ITEM		PARAMETERS
MAIN TECHNICAL DATAS
SPECIFICATION	Operating weight of total machine	24200kg
	Bucket capacity Note: forced bucket is for option (optional forced arm)	1.1M³
	Width of track shoes	600mm/800mm
OVERALL DIMENSIONS	Length of track on ground	3840mm
	Length of track	4650mm
	Ground clearance of countrer weight	1075mm
	Tail swing radius	2985mm
	Rear length	2970mm
	Total length	10115mm
	Total height(boom)	3235mm
	Total width	2990/3190mm
	Track gauge	2390mm
	Track gauge	500mm
	Width of track shoes
	Height of track shoes	945mm
	Total height (cab)	3020mm
	Top width	2800mm
WORKING RANGE	Max. working radius	10360mm
	Max. digging depth	6930mm
	Max. vertical digging depth	6320mm
	Max. digging height	9730mm
	Max. dump height	6810mm
	Min. swing radius	3920mm
PERFORMANCE	Ground pressure	48/37.5Kpa
	Swing speed	12r/min
	Travel speed high/low	5.5/3.5km/h
	gradeability	70%
	Bucket digging force	135KN
	Arm digging force	105KN
ENGINE	Model	Cummins B5.9-C(6BTAA5.9-C178)
	Type	6-cylinders, 4-stroke, turbocharger and aftercooler
	Rated power	133kw/2000rpm
HYDRAULIC SYSTEM	Type of hydraulic pump	Variable flow axial piston pump2+gear pump1
	Method of power adjustment	Gross power adjustment + variable power + negative flow control
	Max flow	2*228L/min
	Main safety valve adjusted power	29.4/31.4Mpa

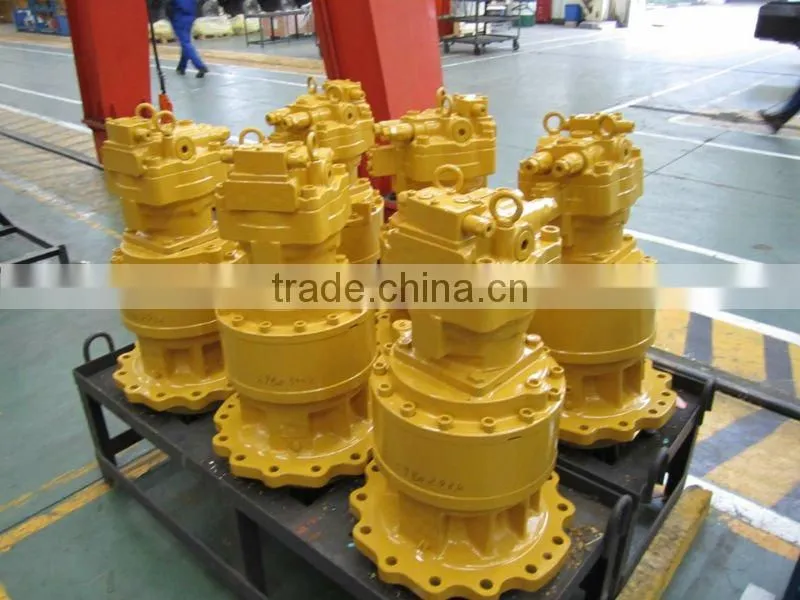

	Travel axial piston motor	2*variable flow axial piston motor
	Motor for swing	1*fixed flow axial piston motor
