Single Sheave Stringing Pulley Block 408x80mm Suitable for ACSR Conductor 400-500mm2
US$ 50 - 70
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
SH
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Cable Pulling Roller Cable Pulley Block for 50-150mm CableUS$ 10 - 60MOQ: 10 Pieces -
10KN Two Sheave Steel Hoisting Pulley Block for 6mm Wire RopeUS$ 14 - 20MOQ: 5 Pieces
-
660mm 3 Sheave Galvanized Steel Bundled Conductor Pulley BlocksUS$ 30 - 400MOQ: 5 Pieces
-
3 Sheave 660mm Diameter Stringing Pulley Block for Pilot Wire RopeUS$ 30 - 400MOQ: 5 Pieces
-
660mm Diameter 3 Sheave Conductor Pulley Stringing Pulley Block With Nylon WheelUS$ 30 - 400MOQ: 5 Pieces
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SH
Single Sheave Stringing Pulley Block 400x80mm Suitable for ACSR Conductor 400-500mm2
Use and Characteristic

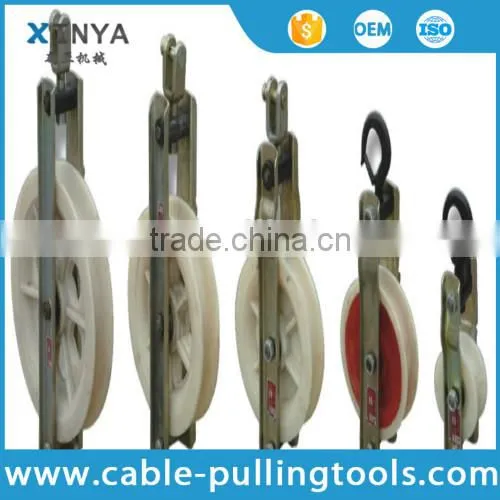

Pulley Block With Hook Single Sheave is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
The wheel groove can be through with clamp pipe, aluminum tube, connector etc..
The material is aluminum alloy and MC nylon .
Pulley pendant is combined plate and hook type.
Technical Data for Pulley Block With Hook Single Sheave
| Product No. | Model Type | Applicable Condcutor(mm2) | Rated Load(KN) | Weight(kg) | Material of Wheel |
| 80335 | SHD-120*30 | LGJ25-70 | 5 | 2 | Aluminum wheel |
| 80336 | SHD-160*40 | LGJ95-120 | 10 | 3.2 | Aluminum wheel |
| 80337 | SHD-200*40 | LGJ150-240 | 15 | 3.8 | Aluminum wheel |
| 80338 | SHD-200*60 | LGJ150-240 | 15 | 4.2 | Aluminum wheel |
| 80339 | SHD-250*40 | LGJ150-240 | 20 | 5.2 | Aluminum wheel |
| 80340 | SHD-250*60 | LGJ300-400 | 20 | 5.5 | Aluminum wheel |
| 80341 | SHD-270*60 | LGJ300-400 | 20 | 6.8 | Aluminum wheel |
| 80342 | SHD-320*60 | LGJ300-400 | 20 | 10.5 | Aluminum wheel |
| 80343 | SHD-408*80 | LGJ400-500 | 20 | 12 | Aluminum wheel |
| Product No. | Model Type | Applicable Conductor ACSR(mm2) | Rated Load(KN) | Weight(kg) | Matetrial of wheel |
| 80344 | SHDN-120*30 | 25-70 | 5 | 1.5 | MC Nylon |
| 80345 | SHDN-160*40 | 95-120 | 10 | 2.4 | MC Nylon |
| 80346 | SHDN-200*40 | 150-240 | 15 | 2.6 | MC Nylon |
| 80347 | SHDN-200*60 | 150-240 | 15 | 3.1 | MC Nylon |
| 80348 | SHDN-250*40 | 150-240 | 20 | 3.7 | MC Nylon |
| 80349 | SHDN-250*60 | 300-400 | 20 | 3.9 | MC Nylon |
| 80350 | SHDN-270*60 | 300-400 | 20 | 4.4 | MC Nylon |
| 80351 | SHDN-320*60 | 300-400 | 20 | 7.5 | MC Nylon |
| 80352 | SHDN-408*80 | 400-500 | 20 | 11 | MC Nylon |
