Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Universal Lathe Machine CN6250B
Universal Lathe Machine CN6250B
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lathe Bench CZ1340A Mini Bench Lathe For SaleUS$ 1,500 - 2,000MOQ: 1 Set -
CZ1440G/1 Conventional Mini Lathe Bench Lathe for SaleUS$ 1,500 - 2,000MOQ: 1 Set
-
CK7516GS CNC Lathe Machine Price for Sale With High AccuracyUS$ 5,000 - 20,000MOQ: 1 Set
-
Hand Movement Single Column Vertical Turning Lathe Machine CK5118/1400US$ 1,000 - 10,000MOQ: 1 Set
-
Single Column Vertical Lathe Machine Price for Sale CK5118/1250NegotiableMOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Automatic
Max. Swing Diameter
500
Place of Origin
Guangxi, China
Brand Name
xiashi
Model Number
CN6250B/1500
Voltage
380V/50Hz
Power(W)
7.5kw
Dimension(L*W*H)
2625*1043*1275mm
Weight
2250kg
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Specification
Max. Swing over bed 500mm
Max. Swing over carriage 300mm
Max. Swing in gap 720mm
Effective gap length 210mm
Max. length of work piece 1500mm
Width of bed 400mm
Section of turning tool 25x25mm
Spindle speeds 11-1600rpm(24 steps)
Hole through spindle 52mm(80mm)
Spindle taper NO.6(MT6)(90 1:20)
No. of feeds 64(kinds)(for each)
Range of metric threads(kinds) (1-192mm) (44 kinds)
Range of inch threads(kinds) (1-24tpi) (21 kinds)
Range of module threads(kinds) 0.25-48(Module 39 kinds)
Range of Diametral pitc threads(kinds) 1-96DP (37 kinds)
Max tailstock spindle travel 150mm
Tailstock spindle diameter 75mm
Taper of taistock spindle center hole NO.5 (MT5)
Main motor 7.5KW(10HP)
Overall dimensions 3150x1150x1700mm
N.W./G.W. 2290/3100kgs
Max. Swing over carriage 300mm
Max. Swing in gap 720mm
Effective gap length 210mm
Max. length of work piece 1500mm
Width of bed 400mm
Section of turning tool 25x25mm
Spindle speeds 11-1600rpm(24 steps)
Hole through spindle 52mm(80mm)
Spindle taper NO.6(MT6)(90 1:20)
No. of feeds 64(kinds)(for each)
Range of metric threads(kinds) (1-192mm) (44 kinds)
Range of inch threads(kinds) (1-24tpi) (21 kinds)
Range of module threads(kinds) 0.25-48(Module 39 kinds)
Range of Diametral pitc threads(kinds) 1-96DP (37 kinds)
Max tailstock spindle travel 150mm
Tailstock spindle diameter 75mm
Taper of taistock spindle center hole NO.5 (MT5)
Main motor 7.5KW(10HP)
Overall dimensions 3150x1150x1700mm
N.W./G.W. 2290/3100kgs

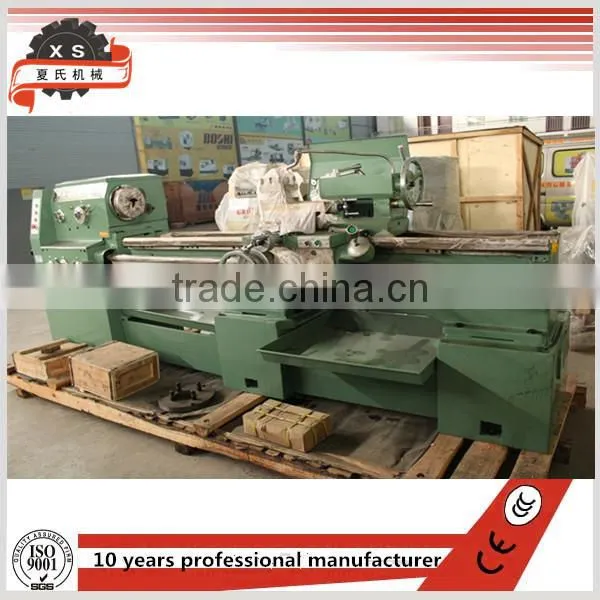

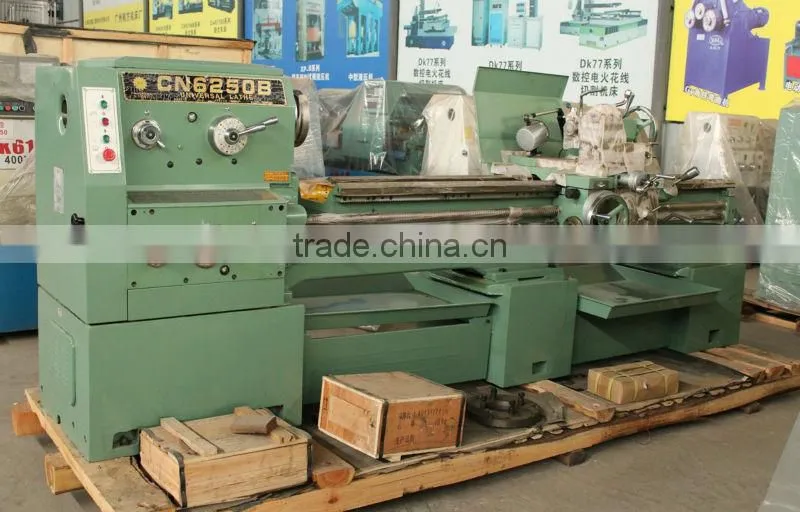

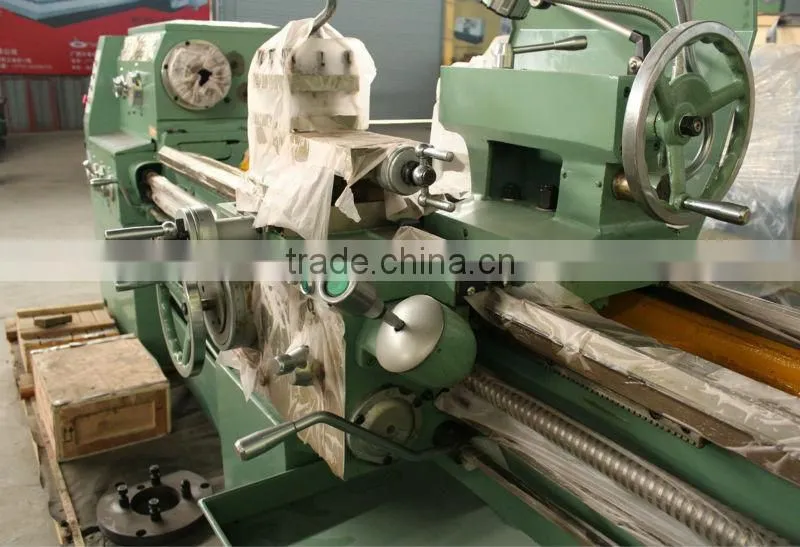

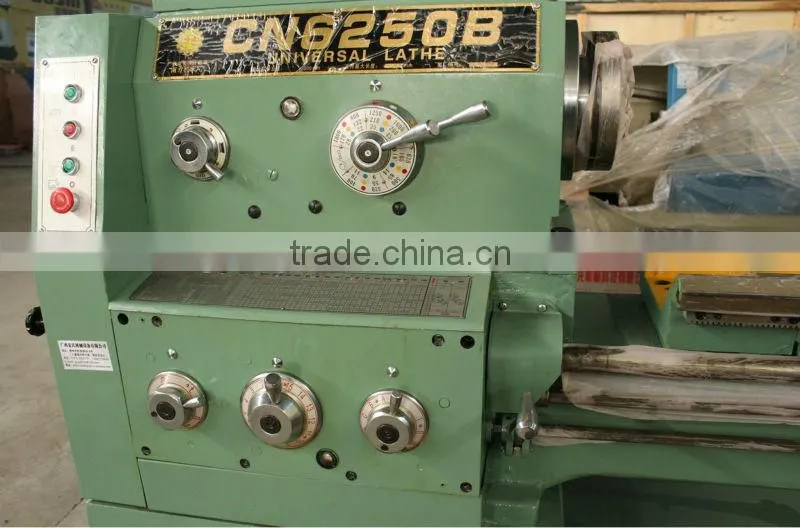

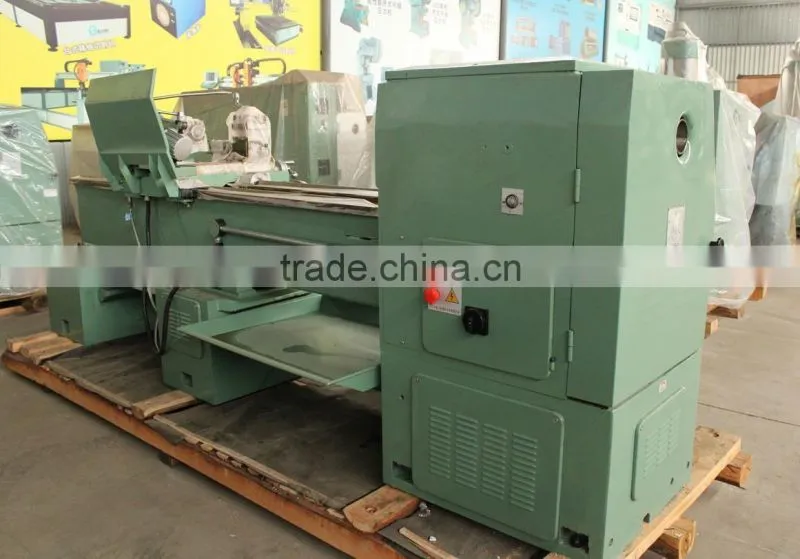

Pictures for your reference
