Descriptions Of Self-Supported PCD Die Blanks:

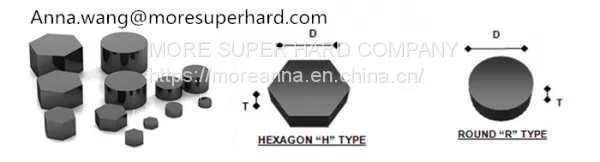

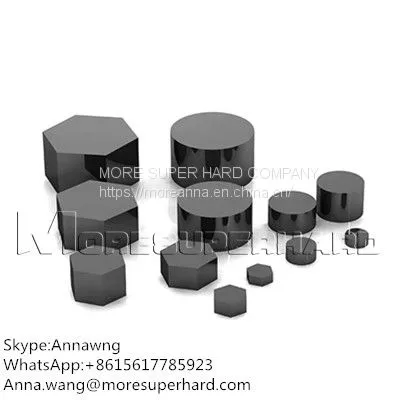

Self-Supported Diamond Die Blanks Includes Self-Supported PCD Die Blanks In Hexagonal Shape And Round Shape In Various Sizes. These Blanks Are Suitable For Various Wire Drawing Applications Especially Where Cost-Cutting Is Required.
Features Of Self-Supported PCD Die Blanks:
* Have A Regular And Compact Micro Structure
* Long Service Life
* Easy Grinding, Easy Polishing And High Smooth Finish
Application Of Self-Supported PCD Die Blanks:
Our PCD Die Blanks Is Mainly Used For Draw Copper Wire, Aluminum Wire, Tungsten Wire, Molybdenum Wire, Stainless Wire And Coated Steel Wire.
Specifications Of Self-Supported Diamond Die Blanks:
| ADDMA Code | Product Code |
Diamond Diameter (Mm) |
Diamond Thickness (Mm) |
Maximum Recommended Hole Size (Mm) | Grain Sizes Available (Um) |
| D6 | R2510 | 2.5 | 1.0 | 0.5 | 3,5,10,15,25 |
| D12 | R3215 | 3.2 | 1.5 | 1.0 | 3,5,10,15,25 |
| D15 | R5225 | 5.2 | 2.5 | 1.5 |
3,5,10,15,25 |
| D18 | R5235 | 5.2 | 3.5 | 2.0 | 3,5,10,15,25 |
| D21 | R8040 | 8.0 | 4.0 | 3.3 |
3,5,10,15,25 |
| D24 | R9853 | 9.8 | 5.3 | 4.6 | 3,5,10,15,25 |
| D27 | R13085 | 13.0 | 8.5 | 6.1 |
10,15,25 |
| D30 | R160120 | 16.0 | 12.0 | 7.6 |
10,15,25 |
