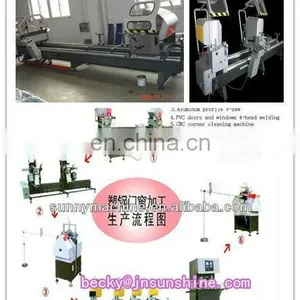

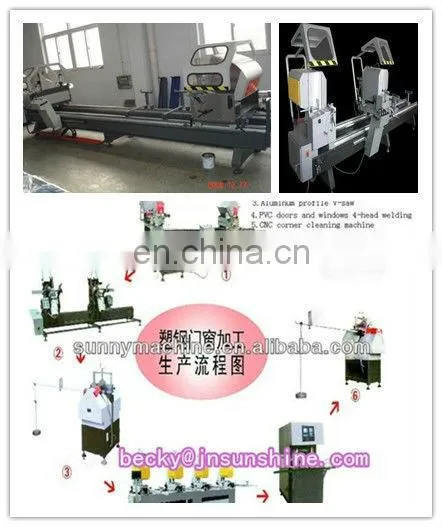

Double head Saw Cutting Machines
Introduction
1).The machine adopts main spindle of saw blades manufactured by the specialized manufacturer of the main spindle of machining centre; imported linear guide rail pairs as cutting feed guide ralis;
2).imported linear bearing motional pair to move the machine head horizontally;
3).hydraulic damping cyinder to drive the feed of saw blades the processing range is wide, with cut length up to 4200mm and cut angles of 90° ,45°,22.5°.
4).It can cut both PVC and Aluminum Profile.
5).This precision cutting saw feature is that it can cut the profile more precisely, the cutting adge and surface is more perfect,especially for cutting the aluminum profile, you can compare it clearly.
6).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
Technical parameter
Model number |
LJZB-500*4200 |
Operation air pressure |
0.4~0.6Mpa |
Power supply |
380V 50Hz |
Cutting motor power |
2.2kw×2 |
Blade rotational speed |
3100 r/min |
Saw blade specification |
D=500mm d=30mm |
Cutting length |
Min380mm Max4200mm |
Cutting angles |
90°,45°,22.5°,67.5° |
Contour dimension(L×W×H) |
5500×1750×1990mm |
Machine weight(about) |
1800kg |
Other Related Machines for Aluminum Profile
CNC Double Head Precision Cutting Saw
Digital Display Double Head Precision Cutting Saw
Lock Hole Groove Processing Machine
End Milling Machine
Single Head Corner Combining Machine
Corner Connector Cutting Saw
