AO-N-1064 High Peak Power 400uJ/ 2W IR 1064nm AOM/ Actively Q-switched Laser
APPLICATION:
It is widely used in marking, carving, measure, research and so on.
SPECIFICATIONS:
Wavelength (nm) |
1064±1 |
||
Operating mode |
CW |
||
Q-switched: AOM (Acousto-Optic Modulation) | |||
Output power |
@CW mode |
1~2W |
|
@Q-switched mode |
>65%@10kHz, typical |
>80%@20kHz |
|
Single pulse energy (µJ) |
100~400 |
||
Pulse duration (ns) |
8~15 |
||
Peak power (kW) |
10~30 |
||
Rep. rate (kHz) |
1~50, 1~100, 1~200, optional |
||
Ave power stability (over 4 hours) |
<3%, <5%, <10% |
||
Warm-up time (minutes) |
<10 |
||
Beam divergence, full angle (mrad) |
<1.5 |
||
Beam diameter at the aperture (mm) |
~3. 0 |
||
Beam height from base plate (mm) |
68.2 |
||
Cooled method |
Air cooled |
||
Operating temperature (°C) |
15~35 |
||
Power supply (220/110VAC) |
PSU-AOM |
||
Expected lifetime (hours) |
10000 |
||
Warranty period |
1 year |
||

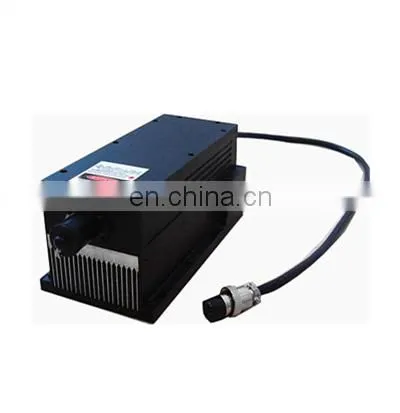

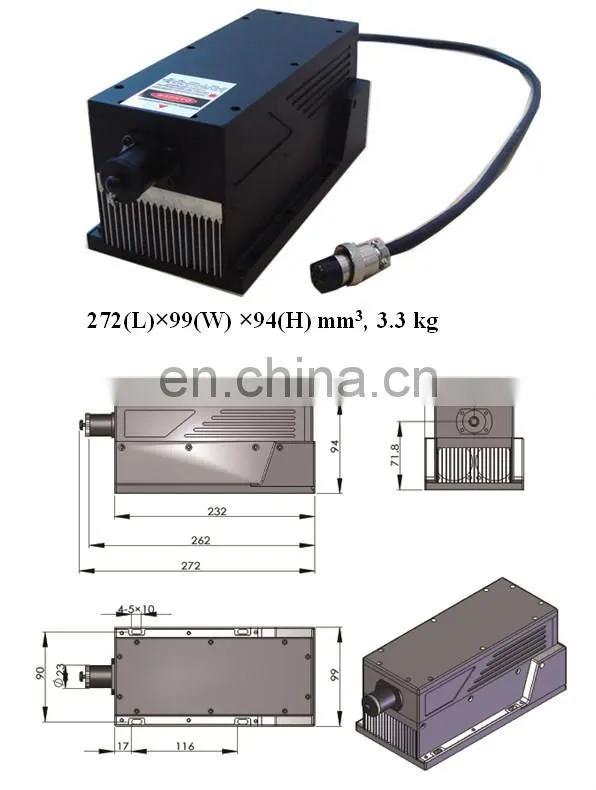

Laser Head

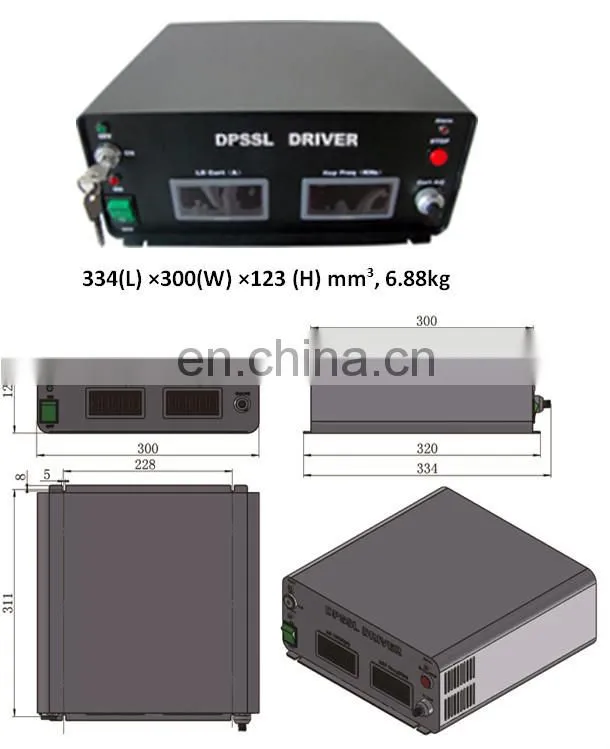

PSU-AOM Power supply
