TKXNZBattery Internal Resistance Tester

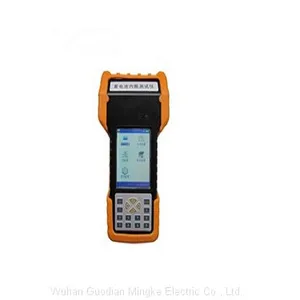

TKXNZBattery Internal Resistance Tester thumbnail-1

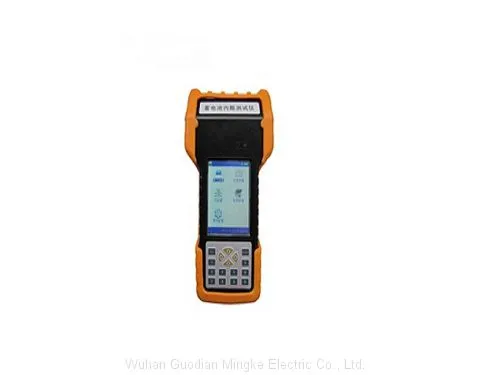

TKXNZBattery Internal Resistance Tester photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GDMK
Place of Origin:
China
Model Number:
TKXNZ
Contact Supplier Request Quote Chat Now
Wuhan Guodian Mingke Electric Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GDMK
Place of Origin China
Model Number TKXNZ
Product Introduction

Battery internal resistance tester adopts the most advanced ac discharge test method which can accurately measure the voltage and internal resistance at both ends of the battery and judge the advantages and disadvantages of the Battery capacity and technical state.Customers can choose battery internal resistance test voltage test capacity estimation according to their own situation.As the basis for matching the internal resistance of new batteries;Test the battery internal resistance before and after discharge to identify the real backward battery;Key operation and liquid crystal touch two operation mode;It can measure the accumulator in groups or in a single section.

Product names：battery internal resistance tester (touch screen) internal resistance tester internal resistance tester battery internal resistance tester

Product Characteristics

  • 1、Compact design light weight convenient for users to carry and operate

  • 2、Battery internal resistance tester features: single battery measurement group battery measurement oscilloscope

  • 3、You can use the keys or touch screens

  •


Product Parameters
Technical parameters
Measuring range internal resistance 0.0mΩ～100mΩ
Voltage 0.000V～16V
Minimum measurement resolution internal resistance 0.01 mΩ
Voltage 1mV
Accuracy of measurement internal resistance ±2.0%rdg±6dgt
Voltage ±0.2%rdg±6dgt
Display 240×320 24bit 3.5-inch TFT LCD + touch screen
Dimensions 190×100×30mm3
Weight 0.5KG
Memory capacity fLASH 16 M bytes
Working power supply Rechargeable lithium battery can work for 5 ~ 6 hours at full charge
Power converter AC100 ~ 240V/ DC 8.4v-1a power adapter/The charger
Communication interface USB interface (insert U disk)


Product Tags: battery internal resistance tester , touch screen) internal resistance tester
