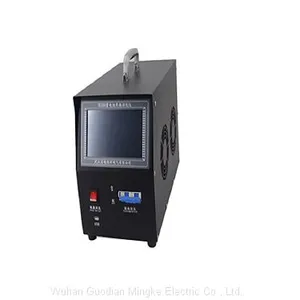

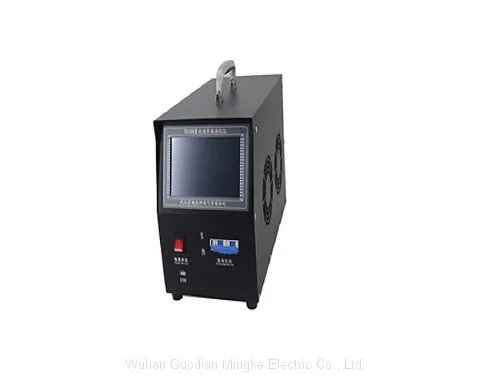

Help CenterTKXFDBattery Discharge Tester
Related Products
-
TKXFD-PLUSWide Voltage Battery Discharge TesterNegotiableMOQ: 1 Piece -
TKSX-3 Three-phase Electric Energy Meter Field Calibrator (handheldNegotiableMOQ: 1 Piece
-
Wide Voltage Battery Discharge TesterNegotiableMOQ: 1 Piece
-
Battery Discharge TesterNegotiableMOQ: 1 Piece
-
SWide Voltage Battery Charge Discharge TesterNegotiableMOQ: 1 Piece
After years of research and development our company has successfully developed a series Battery discharge tester with high intelligence and precision with its proprietary technology. Discharge tester can be in offline mode battery as discharge load through continuously regulating discharge current constant discharge current at the set value can be realized. When discharging the instrument will automatically stop discharging when the battery terminal voltage or monomer voltage falls to the set lower limit or the set discharge time or the set discharge capacity and record all valuable and continuous real-time process data.
Battery discharge tester system the voltage monitoring information of single battery is simple safe and accurate with wireless relay access.
Battery discharge tester has a very friendly man-machine interface which can not only complete all kinds of settings and data query under the prompt of menu but also save the process data of discharge in the memory of the equipment transfer to the U disk through the data interface and analyze the data through the special software of the upper computer to generate the required curve and report.
Battery discharge tester there is perfect protection function not only sound light warning but also a clear interface tips.
Product nickname：battery discharge tester
1、Constant current discharge function continuous adjustable current accurate measurement of battery capacity
2、With the wireless monitoring function of monomer voltage each wireless monitoring module can monitor 12 monomers at the same time
3、With Chinese background analysis software with remote control discharge function
4、The host is equipped with USB interface and 2G super capacity internal data storage space
5、Double cpus work together to ensure the safety reliability and accuracy of the test
6、The discharge can be suspended and the parameters can be modified without the termination of the discharge test
| Working mode | can be used alone can be used simultaneously can be remote control and status monitoring | ||||
| Applicable battery | 48V | 110V | 220V | 380V |
other electrical test groups can be customized |
| Discharge voltage | 0～60V | 88～132V | 176V～275V | 300V～456V | |
| Discharge current | 0～150A | 0～100A | 0～100A | 0～30A | |
| Accuracy of current | 1% | ||||
| Voltage accuracy | 0.5% | ||||
| Monomer voltage accuracy | 0.2% | ||||
| Monomer voltage | 0.500V～16.00V(resolution 1mv) | ||||
| Charge discharge time | 0 ~ 99 hours and 59 minutes | ||||
| Power supply | AC:220V | ||||
| Cooling way | forced air cooling | ||||
| Packaging | aluminum alloy pull box | ||||
| Heat dissipation | forced air cooling |
| Temperature | working range: -5 ~ 50℃ storage temperature: -40 ~ 70℃ |
| Humidity | relative to humidity0 ~ 90% (40±2℃) |
| Altitude | rated altitude: 4000 m |
| Noise | ﹤60dB |
| Voltage | single-phase three-wire system: 220V AC (- 20% ~ +30%) frequency :45 ~ 65Hz |
| Withstand voltage test | input - housing: 2200V DC 1min |
| input-output: 2200V DC 1min | |
| output - housing: 700V DC 1min | |
| Security | meet EN610950 |
| AC input | Gb socket suitable for 1 ~ 1.5mm2cable |
| DC output | instrument 25 mm2Cable quick connect plug (red positive black negative) |
