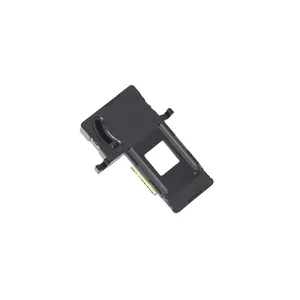

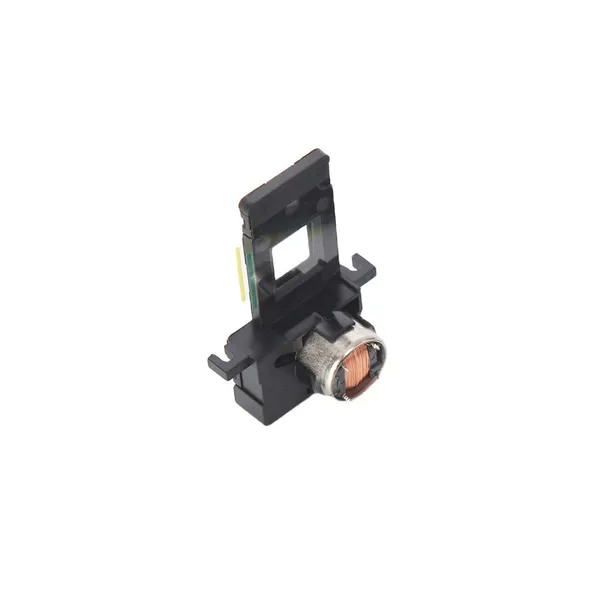

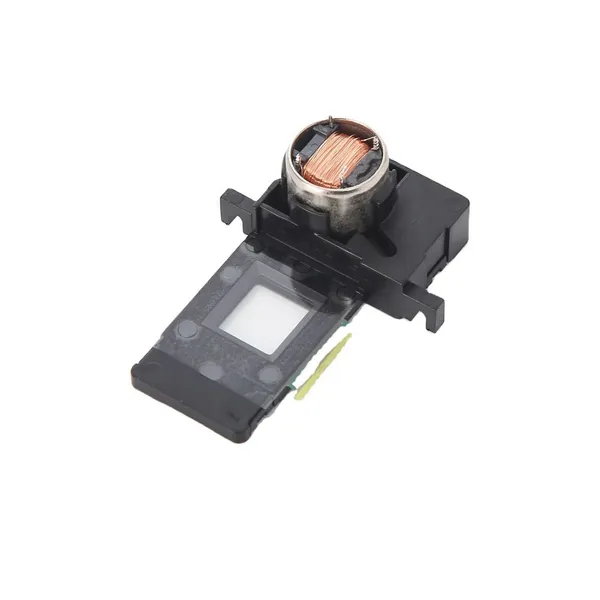

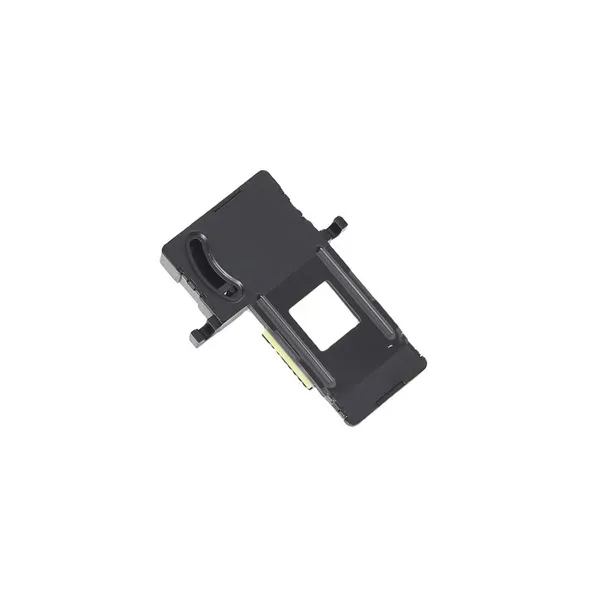

HD Day-Night IR-Cut Filter Switch Switcher
Product Spotlights
Drawer‑type IR‑Cut filter switch, dimension 35.17×22.5×13.8mm, opening size 8×7mm.
Filter size 9×8.7mm, filter thickness 0.30mm, stable optical performance.
Coil resistance 37±10Ω, DC driving voltage 4.5‑5.0V for steady operation.
Mechanical durability minimum 100,000 switching cycles for long service life.
Realize day‑night auto filter switch, deliver clear image for surveillance cameras.
Filter size 9×8.7mm, filter thickness 0.30mm, stable optical performance.
Coil resistance 37±10Ω, DC driving voltage 4.5‑5.0V for steady operation.
Mechanical durability minimum 100,000 switching cycles for long service life.
Realize day‑night auto filter switch, deliver clear image for surveillance cameras.
US$ 4.6 - 6.6
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Other
Application:
Other
Usage:
Filter
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
14 days
Related Products
-
IR-Cut Filter Switch SwitcherUS$ 4.6 - 6.6MOQ: 100 Pieces -
C Mount M12XP0.5 Day-Night IR-Cut Filter SwitchUS$ 4.6 - 6.6MOQ: 100 Pieces
-
IR‑Cut Dual Filter Switch Day Night For CCTV Surveillance Security CameraUS$ 4.6 - 6.6MOQ: 100 Pieces
-
C Mount M12XP0.5 Pitch 20mm Day-Night IR-Cut Filter SwitchUS$ 4.6 - 6.6MOQ: 100 Pieces
-
C Mount M12XP0.5 Pitch 20mm Day-Night IR-Cut Filter SwitchUS$ 4.6 - 6.6MOQ: 100 Pieces
Type
Other
Application
Other
Usage
Filter
Model No
01‑001‑012
Filter Size
9×8.7mm
Filter Thickness
0.30mm
Coil Resistance
37±10Ω
Driving Voltage DC
4.5~5.0V
Durability(CS Min)
100000 Cycles
Transport Package
Anti‑static tray packaging
Specification
35.17×22.5×13.8mm
Trademark
CCHT
Origin
Sichuan
| Technical Parameter of IR-CUT Switch | |||||||||
| NO. | Model No. | Dimensions (mm) |
Openning size(mm) |
Filter size (mm) |
Filter thickness (mm) |
Resistance (Ω) |
Driving Voltage(V DC) | Current (mA) |
Durability (CS Min) |
| 1 | 01-001-009 | 42.26x20x15.2 | 18.0x18.0 | 21x19 | 0.50 | / | 3.5~4.5 | 230 Max | 100,000 |
| 2 | 01-001-012 | 35.17x22.5x13.8 | 8x7 | 9x8.7 | 0.30 | 37±10 | 4.5~5.0 | / | 100,000 |
| 3 | 01-001-014 | 25.55x22.82x11.2 | Φ6.6 | 7x0.65 | 0.21 | 50±10 | 3.8~5.0 | 70~90 | 100,000 |
| 4 | 01-001-015 | 48x33x17.6 | 16x16 | 16x16 | 0.30 | / | 4.5~5.0 | 300 Max | 500,000 |
| 5 | 03-001-001 | 26.15x24.78x9.2 | 7x6 | 7x6 | 0.21 | 23±5 | 3.5~5.0 | / | 50,000 |
| 6 | 03-001-002 | 27x24.78x11.2 | 7x6 | 7x6 | 0.21/0.30 | 23±5 | 3.5~5.0 | / | 50,000 |
| 7 | 03-001-003 | 25.6x24.8x12.3 | Φ15.2 | 6.93x6.43 | 0.21 | 45±8 | 3.0~12 | / | 200,000 |
| 8 | 03-001-004 | 21.2x20x8.2 | 6.6x5.5 | 0.21 | / | 2.5~5.0 | 60mA | ||
