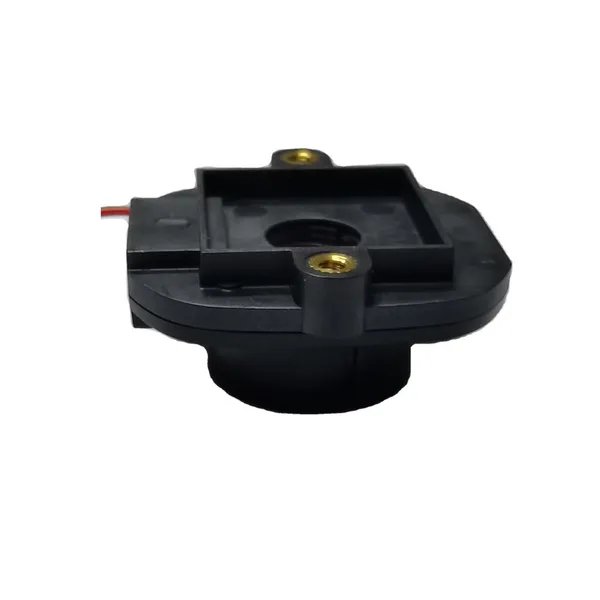

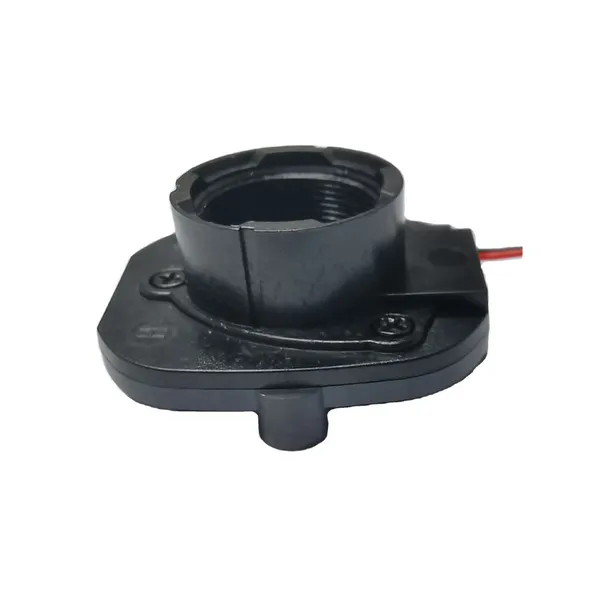

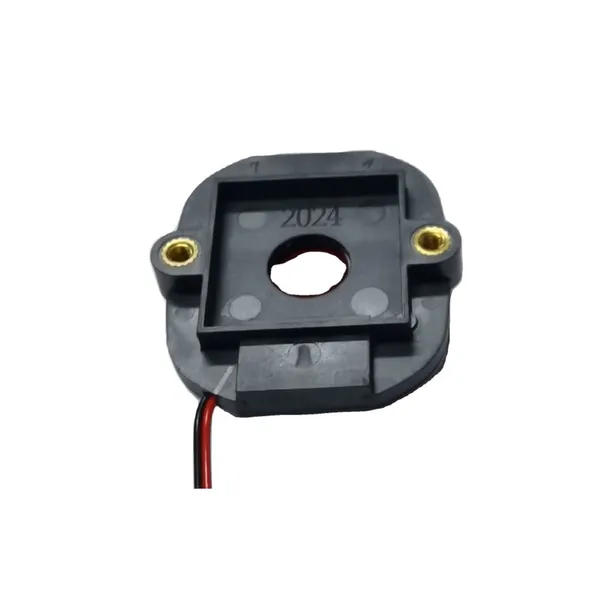

C Mount M12XP0.5 Pitch 20mm Day-Night IR-Cut Filter Switch
Product Spotlights
‑ Model 03‑001‑003 IR‑Cut filter switch for CCTV day‑night security camera.
‑ Dimension 25.6×24.8×12.3mm, opening size Φ15.2mm, filter 6.93×6.43mm, thickness 0.21mm.
‑ Resistance 45±8Ω, working DC voltage 3.0‑12V.
‑ Durability up to 200,000 cycles, stable mechanical switching performance.
‑ Dual‑filter switch, realize day‑night auto‑filter conversion for surveillance lens.
‑ Dimension 25.6×24.8×12.3mm, opening size Φ15.2mm, filter 6.93×6.43mm, thickness 0.21mm.
‑ Resistance 45±8Ω, working DC voltage 3.0‑12V.
‑ Durability up to 200,000 cycles, stable mechanical switching performance.
‑ Dual‑filter switch, realize day‑night auto‑filter conversion for surveillance lens.
US$ 4.6 - 6.6
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Application:
Other
Usage:
Other
Model No.:
03‑001‑003
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
14 days
Related Products
-
Drawer Type C Mount M12XP0.5 HD Day-Night IR-Cut Filter Switch 27×24.78×11.2mm HD Day Night Filter For CCTV Surveillance CameraUS$ 4.6 - 6.6MOQ: 100 Pieces -
Day-Night HD IR-Cut Filter Switch SwitcherUS$ 4.6 - 6.6MOQ: 100 Pieces
-
HD Day-Night IR-Cut Filter Switch SwitcherUS$ 4.6 - 6.6MOQ: 100 Pieces
-
IR-Cut Filter Switch SwitcherUS$ 4.6 - 6.6MOQ: 100 Pieces
-
C Mount M12XP0.5 Day-Night IR-Cut Filter SwitchUS$ 4.6 - 6.6MOQ: 100 Pieces
Application
Other
Usage
Other
Model No.
03‑001‑003
Openning size
Φ15.2 mm
Filter size
6.93×6.43 mm
Filter thickness
0.21 mm
Resistance
45±8 Ω
Voltage(DC)
3.0~12 V
Durability(CS Min)
200000
Specification
25.6×24.8×12.3mm
Trademark
CCHT
Origin
Sichuan
| Technical Parameter of IR-CUT Switch | |||||||||
| NO. | Model No. | Dimensions (mm) |
Openning size(mm) |
Filter size (mm) |
Filter thickness (mm) |
Resistance (Ω) |
Driving Voltage(V DC) | Current (mA) |
Durability (CS Min) |
| 1 | 01-001-009 | 42.26x20x15.2 | 18.0x18.0 | 21x19 | 0.50 | / | 3.5~4.5 | 230 Max | 100,000 |
| 2 | 01-001-012 | 35.17x22.5x13.8 | 8x7 | 9x8.7 | 0.30 | 37±10 | 4.5~5.0 | / | 100,000 |
| 3 | 01-001-014 | 25.55x22.82x11.2 | Φ6.6 | 7x0.65 | 0.21 | 50±10 | 3.8~5.0 | 70~90 | 100,000 |
| 4 | 01-001-015 | 48x33x17.6 | 16x16 | 16x16 | 0.30 | / | 4.5~5.0 | 300 Max | 500,000 |
| 5 | 03-001-001 | 26.15x24.78x9.2 | 7x6 | 7x6 | 0.21 | 23±5 | 3.5~5.0 | / | 50,000 |
| 6 | 03-001-002 | 27x24.78x11.2 | 7x6 | 7x6 | 0.21/0.30 | 23±5 | 3.5~5.0 | / | 50,000 |
| 7 | 03-001-003 | 25.6x24.8x12.3 | Φ15.2 | 6.93x6.43 | 0.21 | 45±8 | 3.0~12 | / | 200,000 |
| 8 | 03-001-004 | 21.2x20x8.2 | 6.6x5.5 | 0.21 | / | 2.5~5.0 | 60mA | ||
