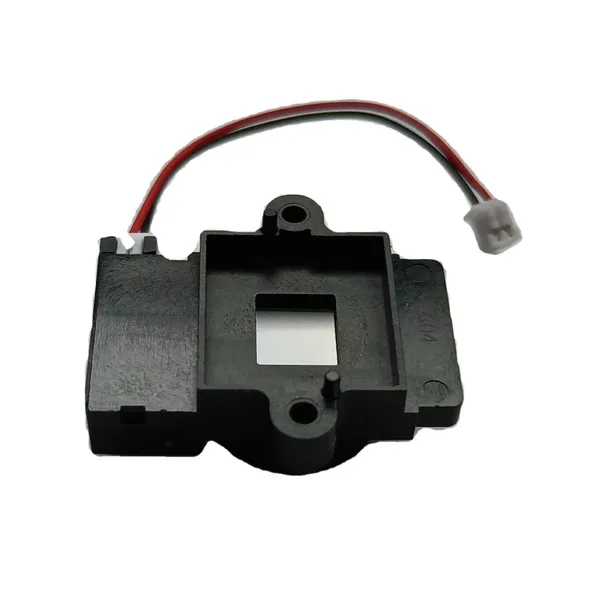

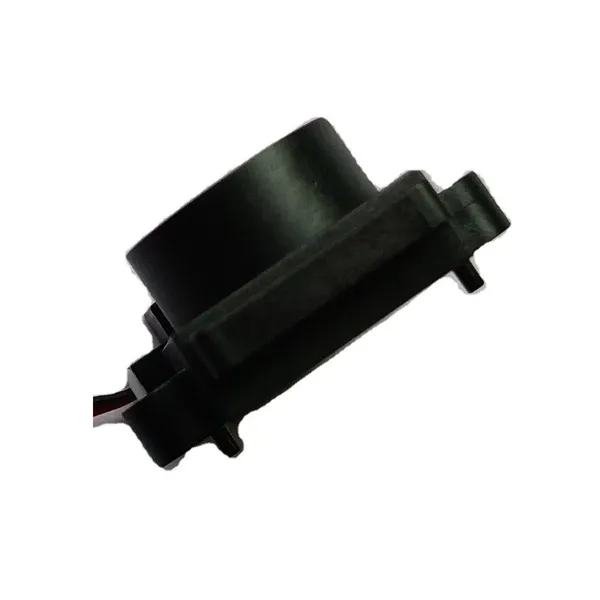

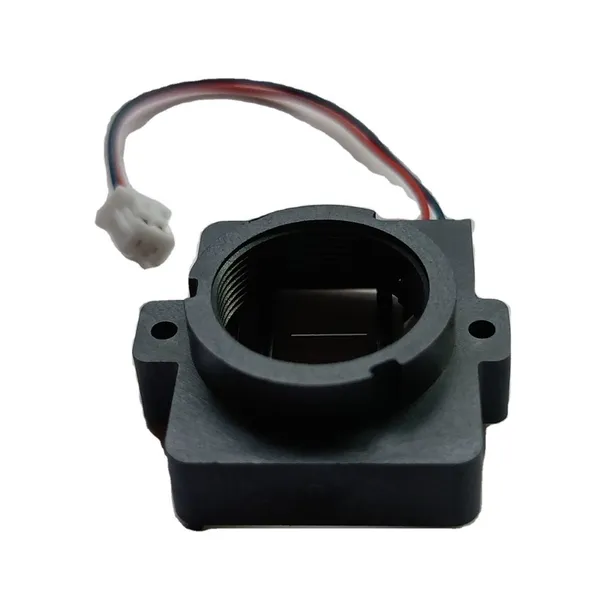

C Mount M12XP0.5 Day-Night IR-Cut Filter Switch
Product Spotlights
‑ Model 03‑001‑001 IR‑Cut dual filter switch for surveillance camera.
‑ Dimension:26.15×24.78×9.2mm, opening size 7×6mm, filter size 7×6mm.
‑ Filter thickness 0.21mm, coil resistance 23±5Ω.
‑ DC driving voltage 3.5‑5.0V.
‑ Mechanical service life up to 50,000 cycles, reliable day‑night filter switching.
‑ Dimension:26.15×24.78×9.2mm, opening size 7×6mm, filter size 7×6mm.
‑ Filter thickness 0.21mm, coil resistance 23±5Ω.
‑ DC driving voltage 3.5‑5.0V.
‑ Mechanical service life up to 50,000 cycles, reliable day‑night filter switching.
US$ 4.6 - 6.6
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Application:
Other
Usage:
Other
Model No.:
03‑001‑001
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
14 days
Related Products
-
IR‑Cut Dual Filter Switch Day Night For CCTV Surveillance Security CameraUS$ 4.6 - 6.6MOQ: 100 Pieces -
C Mount M12XP0.5 Pitch 20mm Day-Night IR-Cut Filter SwitchUS$ 4.6 - 6.6MOQ: 100 Pieces
-
C Mount M12XP0.5 Pitch 20mm Day-Night IR-Cut Filter SwitchUS$ 4.6 - 6.6MOQ: 100 Pieces
-
Drawer Type C Mount M12XP0.5 HD Day-Night IR-Cut Filter Switch 27×24.78×11.2mm HD Day Night Filter For CCTV Surveillance CameraUS$ 4.6 - 6.6MOQ: 100 Pieces
-
Day-Night HD IR-Cut Filter Switch SwitcherUS$ 4.6 - 6.6MOQ: 100 Pieces
Application
Other
Usage
Other
Model No.
03‑001‑001
Openning size
7×6 mm
Filter size
7×6 mm
Filter thickness
0.21 mm
Resistance
23±5 Ω
Driving Voltage(DC)
3.5~5.0 V
Durability(CS Min)
50000
Specification
26.15×24.78×9.2mm
Trademark
CCHT
Origin
Sichuan
-
Technical Parameter of IR-CUT Switch NO. Model No. Dimensions
(mm)Openning size(mm) Filter size
(mm)Filter
thickness (mm)Resistance
(Ω)Driving Voltage(V DC) Current (mA) Durability
(CS Min)1 01-001-009 42.26x20x15.2 18.0x18.0 21x19 0.50 / 3.5~4.5 230 Max 100,000 2 01-001-012 35.17x22.5x13.8 8x7 9x8.7 0.30 37±10 4.5~5.0 / 100,000 3 01-001-014 25.55x22.82x11.2 Φ6.6 7x0.65 0.21 50±10 3.8~5.0 70~90 100,000 4 01-001-015 48x33x17.6 16x16 16x16 0.30 / 4.5~5.0 300 Max 500,000 5 03-001-001 26.15x24.78x9.2 7x6 7x6 0.21 23±5 3.5~5.0 / 50,000 6 03-001-002 27x24.78x11.2 7x6 7x6 0.21/0.30 23±5 3.5~5.0 / 50,000 7 03-001-003 25.6x24.8x12.3 Φ15.2 6.93x6.43 0.21 45±8 3.0~12 / 200,000 8 03-001-004 21.2x20x8.2 6.6x5.5 0.21 / 2.5~5.0 60mA
