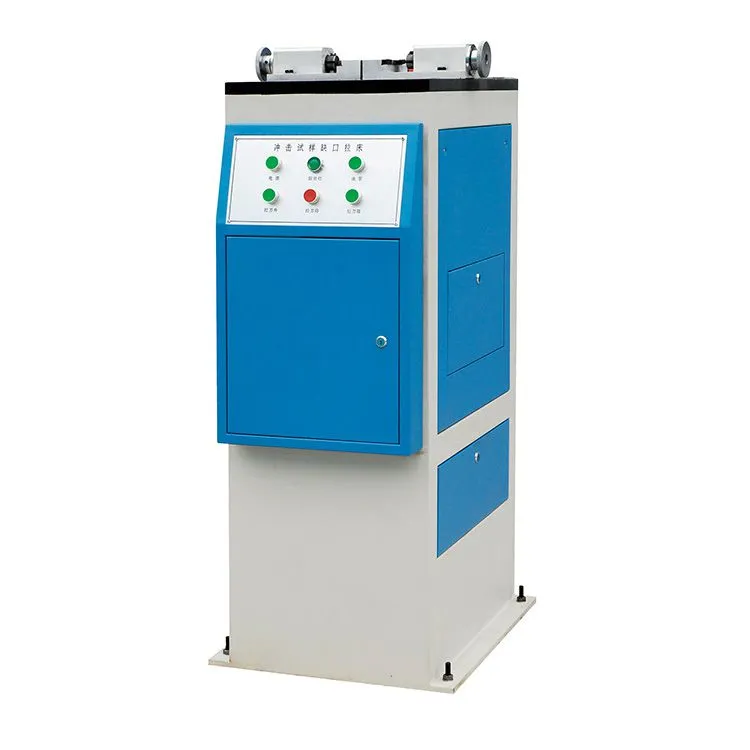

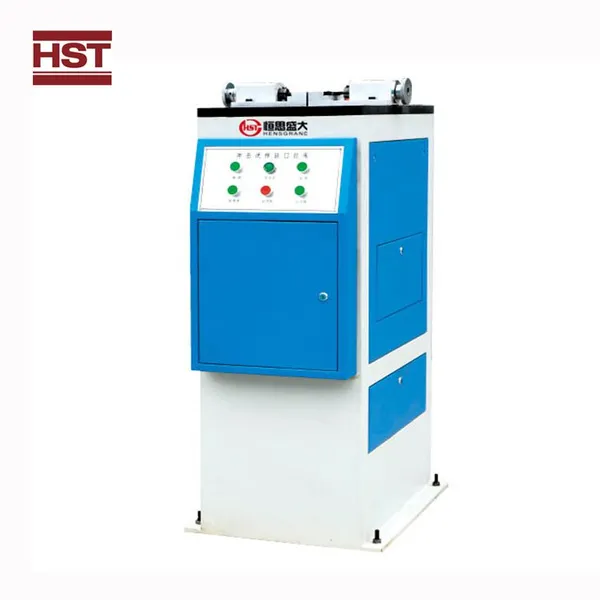

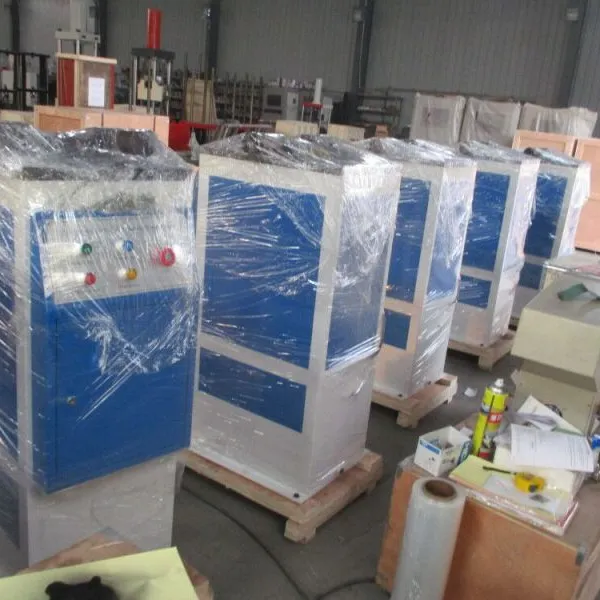

VU-2Y 2/3/5mm Impact Tester Sample Notching Broaching Cutting Milling Machine price

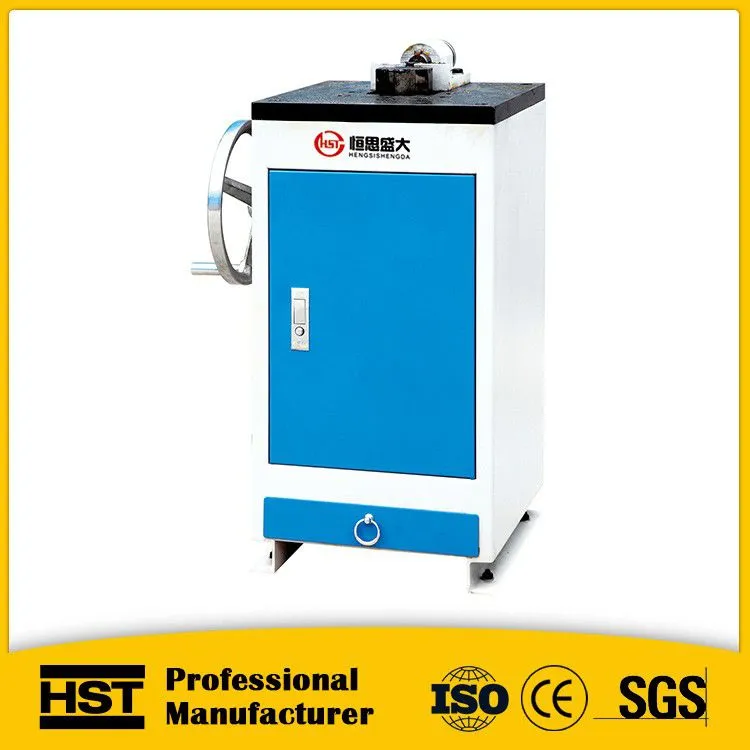

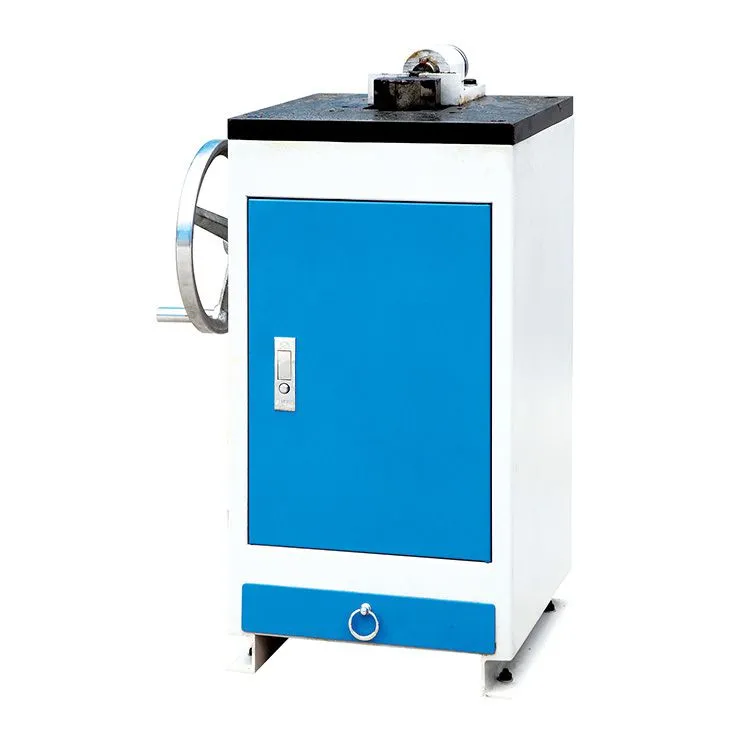

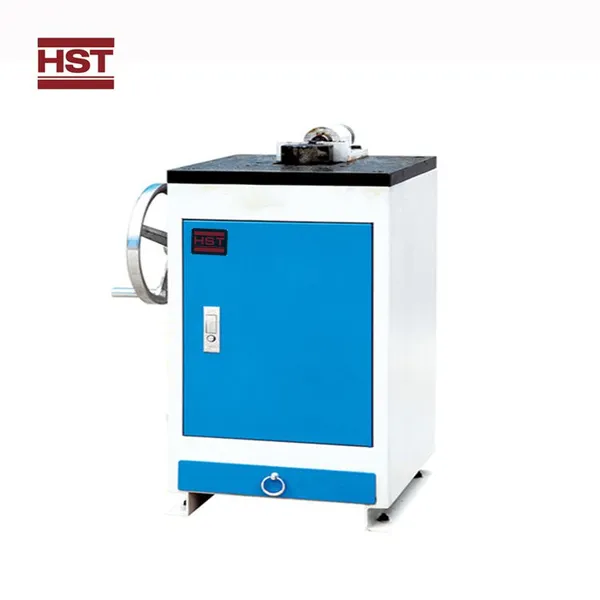

We also have manual machine of broaching for choice:
1. Application
Hydraulic Impact Sample U V Notching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &research
2.Standards:
ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007
3.Features:
3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;
3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time.
4. Main Technical Specifications:
|
Shape of sample notch |
V2 mm,U2mm,(U3mm, U5mm alternative) |
|
Sample size |
(10, 7.5, 5)x10x55mm |
|
Cutting mode |
Hydraulicn automatic |
|
Journey of broach |
V2, U2, U3 350mm; U5 380mm |
|
Broaching Speed |
2.5m/min |
|
Broach material |
W18Cr4V |
|
Power supply |
380V 50Hz 0.4Kw |
|
Max. Dimension |
660x500x1240mm |
|
Weight |
200kg |

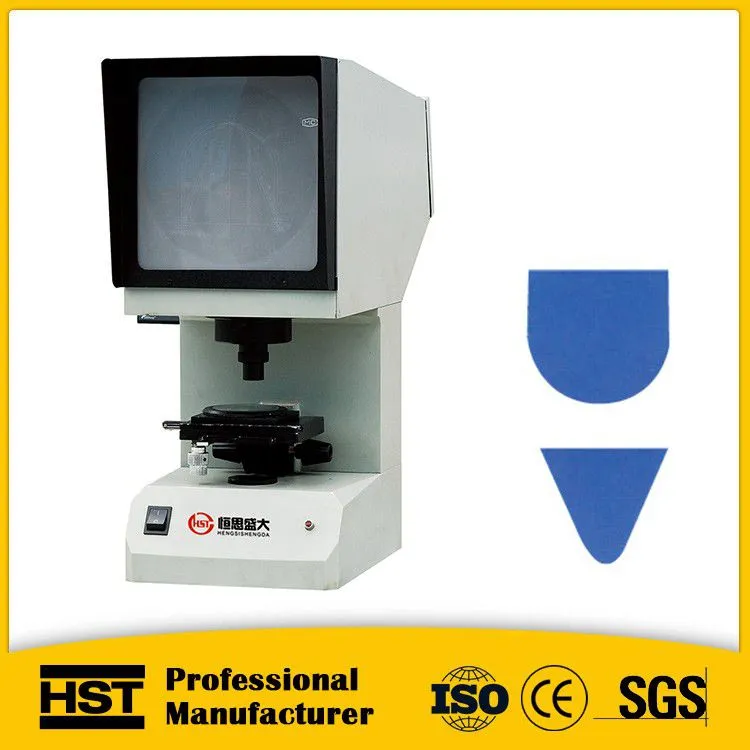

Manual impact specimen gap broaching machine CST-50 Charpy projector
