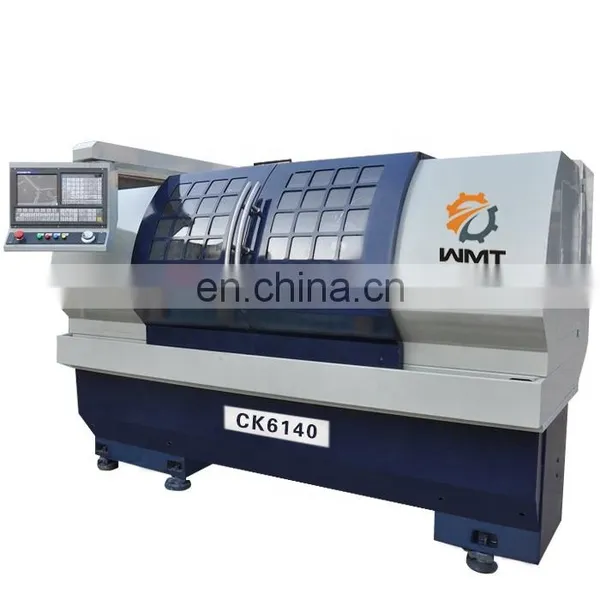

Torno Cnc CK6140 1000mm Metal Cnc Lathe Machine for Turning
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Hot Sell TX500 3-Axis Slant Bed Cnc Turning Center Lathe Machine With High QualityNegotiableMOQ: 1 -
Heavy Duty Flat Bed Cnc Lathe CK6166x1000 for Metal WorkingNegotiableMOQ: 1
-
Parallel Lathe CK6180 With High Quality Cnc Longitudinal Turning MachineNegotiableMOQ: 1
-
C5116D Heavy Duty Metal Cutting Vertical Manual Lathe Machine With DRONegotiableMOQ: 1
-
QK1322 225mm Spindle Bore Dia. Pipe Threading MachineNegotiableMOQ: 1
Product Description
Features:
1. Full enclosure complete, safe and easy operation
2. Hardened by induction, the machine bed and carriage has a long durability.
3. Electric turret and gang-tools turret can be both installed.
4. Auto lubrication cnc machine
5. 4-position electrical tool post as standard, 6-position is for optional selection,
6. Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc.
7. High efficiency and accurate processing.
8.The bed way has been finely grinned after ultra-tone quenching.
9. It is applied to various line like automobile, valve, electric tools and hardware, etc.
Specification |
CK6140×750/1000/1500mm |
Max. swing over bed |
Φ400mm |
Max. swing over carriage |
Φ240mm |
Max length of work piece |
750/1000/1500mm |
Rail width |
330mm |
Range of spindle speed |
150-2000rpm or 60-600/280-2000rpm with 2 steps |
Stations of tool post |
4/6/8 position or gang type tool holder |
Spindle bore |
Φ60mm |
Taper of spindle bore |
MT6 |
X-rapid speed |
6m/min |
Z-rapid speed |
8m/min |
Width of guide way |
330mm |
X-axis travel |
250mm |
Z-axis travel |
1000/1500mm |
Max size of tool post |
25×25mm |
Taper of tail stock |
MT4 |
Max range of tail stock quill |
120mm |
Power of main motor |
5.5kw |
Packing size(LxWxH) |
2420/2740/3240×1620×2100mm |
Net weight |
1700kg/2100kgs |
Gross weight |
1900/2300kgs |

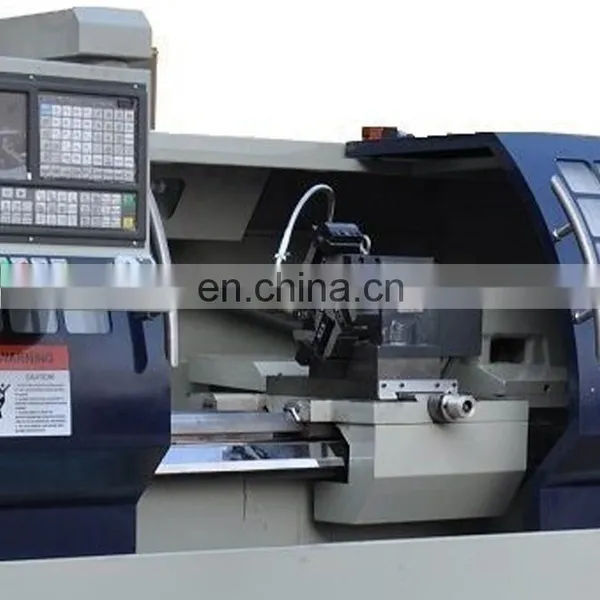

Detailed Images

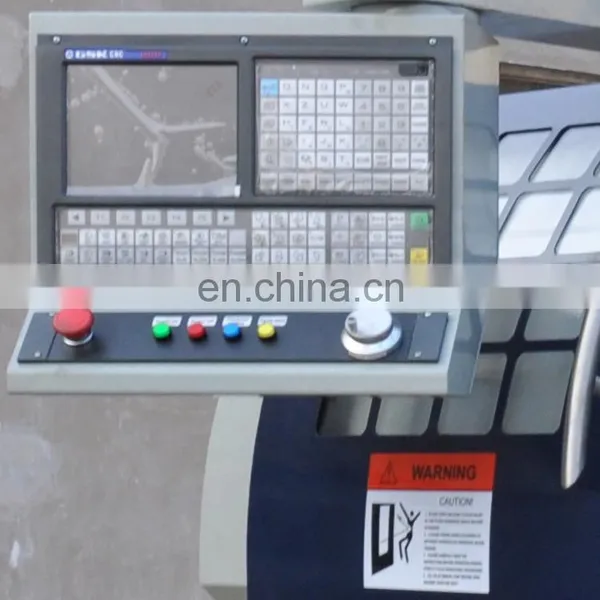

GSK, SIEMENS, FANUC system can be choosed

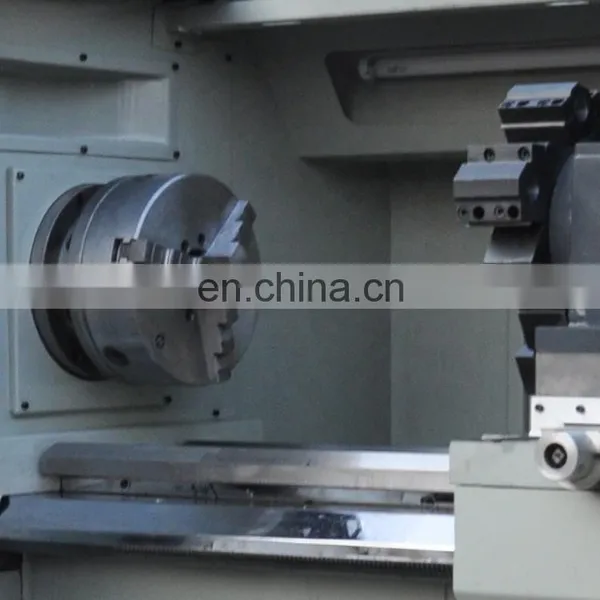

Manual chuck, hydraulic chuck, penumatic can be choosed
4, 6, 8 station toolpost can be choosed
Different sheet cover can be choosed
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
