Product Description

C6241 good quality lathe machine

Main Feature
1.Bed guideway is harden and tempered by super audio quenching and precision grinding
2.Precision grinding of the main shaft box, low noise.
3.Many thread type can be choosen
4.Electrical safety performance is good, high reliability
Main Technical Data
Specification
C6241
C6246
Swing over bed
Φ410mm
Φ460mm
Swing over cross slide
Φ220mm
Φ270mm
Swing in gap
Φ640mm
Φ690mm
Distance between centers
1000mm/1500mm/2000mm/3000mm
1000mm/1500mm/2000mm/3000mm
Valid length of gap
165mm
165mm
Width of bed
300mm
300mm
Spindle nose
D1-6
D1-6
Spindle bore
Φ58mm
Φ58mm
Taper of spindle bore
MT6
MT6
Range of spindle speed
12 changes, 25-2000r/min
12 changes, 25-2000r/min
Max.travel of top slide
128mm
128mm
Max.travel of cross slide
285mm
285mm
Max.section of tool
25×25mm
25×25mm
Pitch thread of leadscrew
6mm or 4T.P.I.
6mm or 4T.P.I.
Longitudinal feeds range
42 kinds,0.031-1.7mm/rev
42 kinds,0.031-1.7mm/rev
Cross feeds range
42 kinds, 0.014-0.784mm/rev
42 kinds, 0.014-0.784mm/rev
Metric threads range
41 kinds, 0.1-14mm
41 kinds, 0.1-14mm
Inch threads range
60 kinds, 2-112T.P.I.
60 kinds, 2-112T.P.I.
Diametrical pitches range
50 kinds, 4-112DP
50 kinds, 4-112DP
Module pitches range
34 kinds, 0.1-7MP
34 kinds, 0.1-7MP
Tailstock quill diameter
Φ60mm
Φ60mm
Tailstock quill travel
128mm
128mm
Tailstock quill taper
MT4
MT4
Power of main motor
5.5kw(7.5HP) 3PH
5.5kw(7.5HP) 3PH
Power of coolant pump
0.1kw(1/8HP) 3PH
0.1kw(1/8HP) 3PH
Overall dimension
2200/2750/3250×1080×1370mm
2200/2750/3250×1080×1370mm
Packing size
2250/2800/3300×1120×1620mm
2250/2800/3300×1120×1620mm
Net weight
1670/1920/2070kgs
1670/1920/2070kgs
Gross weight
1980/2265/2450kgs
1980/2265/2450kgs

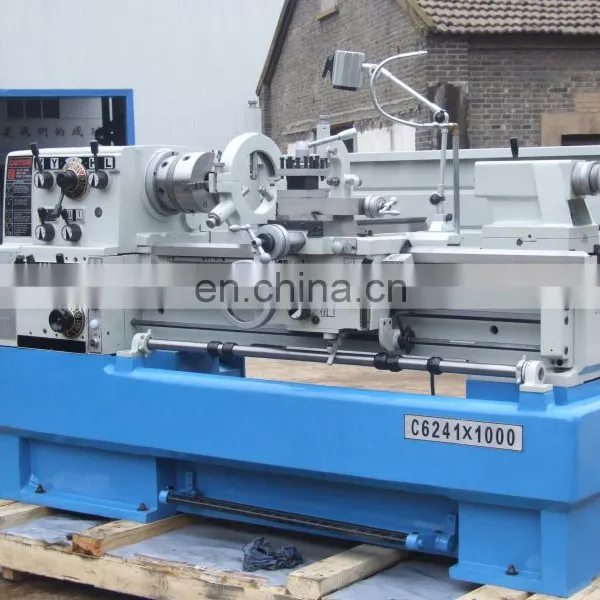

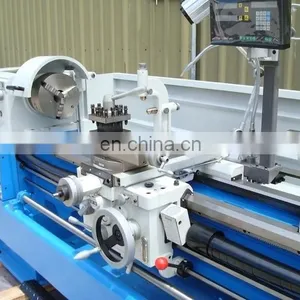

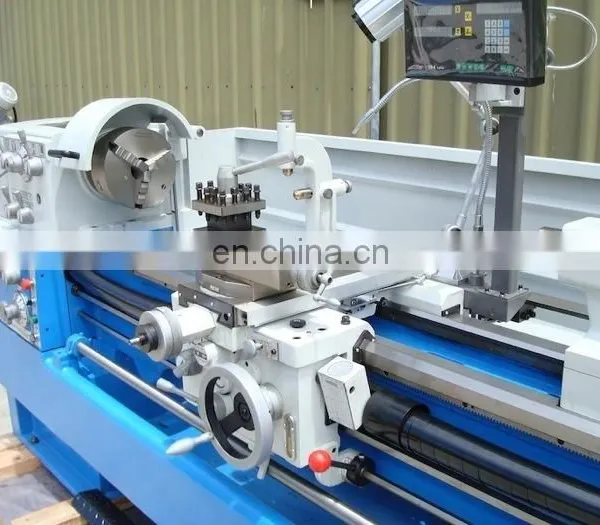

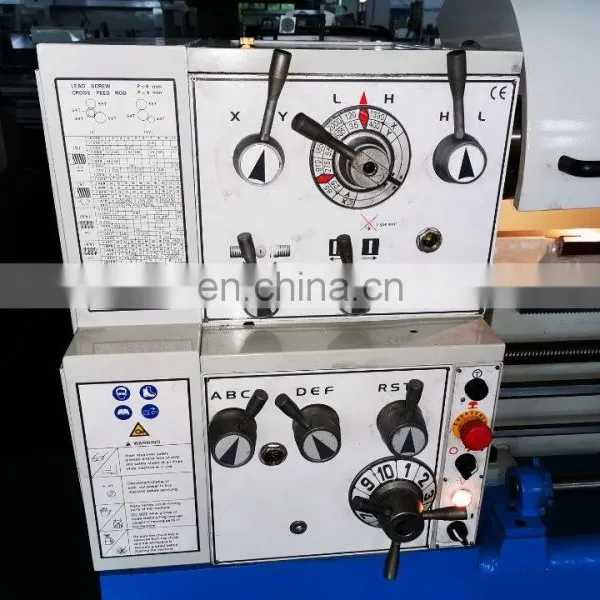

Details about the real pictures:
