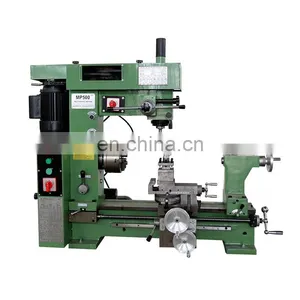

Name: MP500 Wholesale Lathe Mill Combo for Metal Working From Chinese Factory Directly
SKU: 171485231

ALL CATEGORIES

MP500 Wholesale Lathe Mill Combo for Metal Working From Chinese Factory Directly

Send Inquiry to This Supplier

Mr. Jack Xu

Sales Manager

4Yrs

Jingjiang Fuji Technology Co., Ltd.

Shanghai, China

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

Specification	MP500
Max. Swing over bed	420mm
Max. Distance between centers	500mm
Max. longitudinal travel	400mm
Max. cross travel	200mm
Spindle taper	MT4
Spindle bore	φ28mm
Step of spindle speed	7 steps
Range of spindle speed	160-1360rpm
Barrel travel	70mm
Barrel taper	MT3
Metric thread range	0.2-6mm
Inch thread range	4-120T.P.I
Longitudinal range of automatic feeding	0.05-0.35mm/ 0.002-0.014"
Cross range of automatic feeding	0.05-0.35mm/ 0.002-0.014"
Max. drilling capacity	φ22mm
Worktable size (L×W)	475×160mm
Max. end mill	φ28mm
Max. face mill	φ80mm
Distance between spindle center and column	285mm
Distance between spindle and worktable	306mm
Headstock travel of up and down	110mm
Spindle taper	MT3
Step of spindle speed	16steps
Range of spindle speed	120-3000rpm
Swivel degree of headstock	±360°
Motor power	0.75kw
Packing size	1130×580×1100mm
N.W/G.W	245/280kgs

MP500 Wholesale Lathe Mill Combo for Metal Working From Chinese Factory Directly

Product Details
