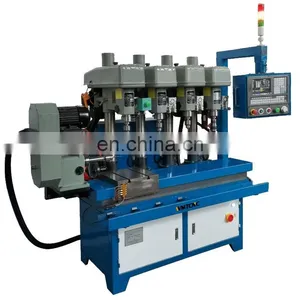

ZSK4725SFX 3/4/5 CNC Sliding Table Multi-station Drilling and Tapping Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Rigid X6325 Metal Milling Machine Mini Milling Machine for MetalNegotiableMOQ: 1 -
Ram Universal Milling Machine Model ZX6350C Universal Milling Machine 5hw With CE for SaleNegotiableMOQ: 1
-
Bench Top Milling Machine Portable Milling Machine ZX7550ZW With Vertical Spindle Auto-feedingNegotiableMOQ: 1
-
ZAY7020V High Precision Drilling and Milling Machine With Variable SpeedNegotiableMOQ: 1
-
Table Milling Machine ZX32G Hot Sales Table Milling Machine Vertical Combination Drilling and Milling MachineNegotiableMOQ: 1
Product Description
ZSK4725SFX 3/4/5 CNC sliding table multi-station drilling and tapping machine
Model |
ZSK4725SFX 3/4/5 |
Max. Drilling capacity(mm) |
25/20 |
Max. Tapping capacity(mm) |
M20/M16 |
Max.spindle travel(mm) |
120 |
Morse taper of spindle nose |
MT.3 |
Spindle speeds(r/min) |
340-570-1000-1800 (Drilling spindle) 230-390-680-1230 (Tapping spindle) |
Spindle feed drive way |
Serve |
Spindle feed speed(mm/min) |
W7500 |
Positioning accuracy(mm) |
0.06 |
Repeatability accuracy |
0.03 |
Two column center distance(mm) |
285 |
Max. slip velocity worktable(mm/min) |
W25000 |
Max. longitudinal travel of worktable(mm) |
520 |
Max. transverse travel of worktable(mm) |
180 |
Distance from spindle axis to column surface(mm) |
242.5 |
Distance from spindle to table(mm) |
300-580 (with Y axis 224-504) |
Main Motor power(kw) |
Drilling: 1.1, tapping: 0.75(6steps抱闸) |
G.W/N.W(kg) |
960(1100、1250)/860(1000、1150) |
Ship measurement(cm) |
180(180、230)x 115x 180 |
Company profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
