Product Advantages

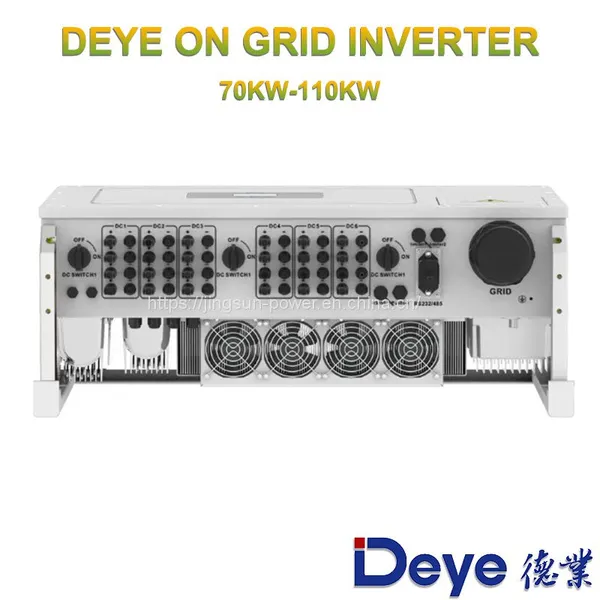

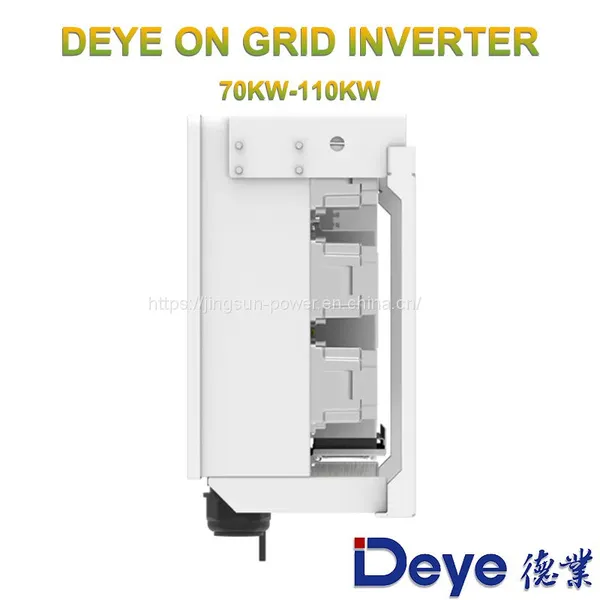

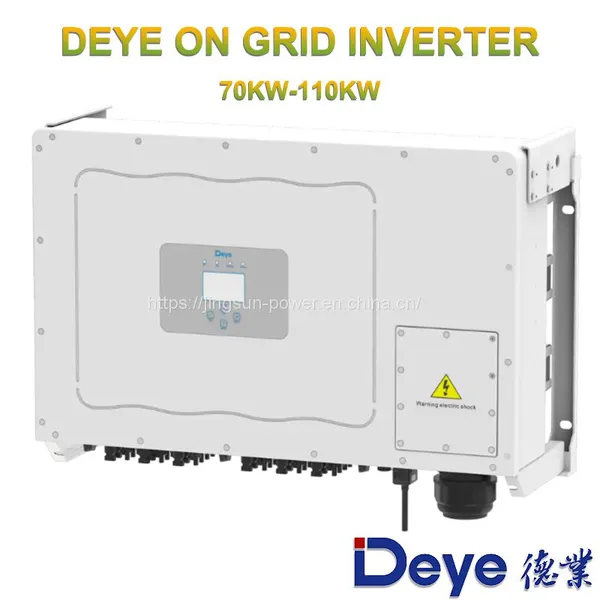

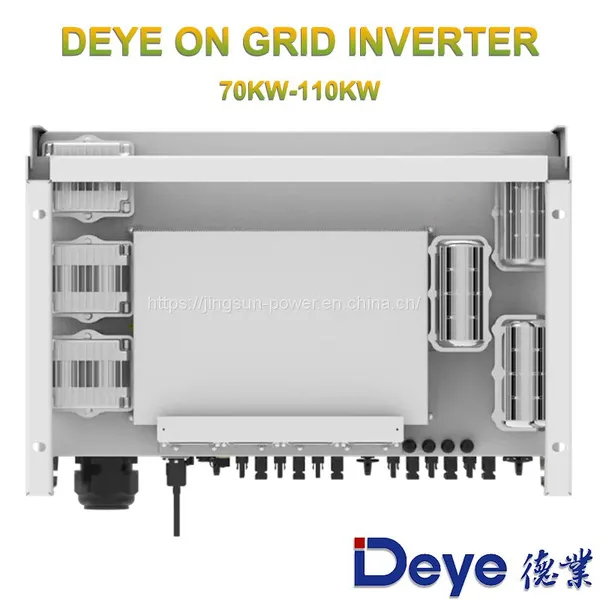

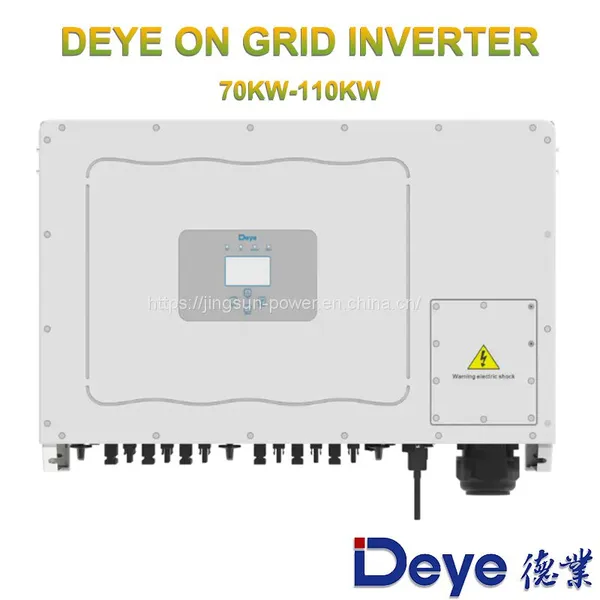

1. High Efficiency: The Deye 100KW three-phase grid-tied inverter is designed with a maximum efficiency of up to 98.8%. This means it can effectively convert solar energy into usable power, ensuring optimal energy output and cost savings for users.
2. Multiple MPPT Trackers: With up to six maximum power point tracking (MPPT) trackers, the Deye 100KW inverter offers superior flexibility in adapting to different solar panel configurations and shading conditions. This ensures the system is able to capture the maximum amount of solar energy possible, even in less-than-ideal conditions.
3. Intuitive Monitoring: The Deye 100KW inverter comes equipped with string intelligent monitoring that allows for easy and intuitive monitoring of the performance of the solar panels. This helps to optimize their output and identify any potential issues, which enables prompt maintenance and repair actions.
4. Seamless Integration: The Deye 100KW three-phase grid-tied inverter is designed to seamlessly integrate with most commercial and industrial solar PV systems. This ensures it can be easily integrated with existing systems, enabling users to effortlessly upgrade their installation without significant disruptions.
5. Low Maintenance: The Deye 100KW inverter is built to require minimal maintenance, with a durable, weather-resistant casing that protects against harsh outdoor elements. This reduces the need for frequent repairs or replacements, thereby minimizing downtime and maximizing the ROI of the solar PV system.
Technical Data
Model |
SUN-70K-G03 |
SUN-75K-G03 |
SUN-80K-G03 |
SUN-90K-G03 |
SUN-100K-G03 |
SUN-110K-G03 |
Input Side | ||||||
Max. DC Input Power (kW) |
91KW |
97.5KW |
104KW |
135KW |
150KW |
150KW |
Max. DC Input Voltage |
1000V |
|||||
Start-up DC Input Voltage |
250V |
|||||
MPPT Operating Range |
200-850V |
|||||
Max. DC Input Current |
40A+40A+40A+40A |
40A+40A+40A+40A+40A+40A |
||||
Max. Short Circuit Current |
60A+60A+60A+60A |
60A+60A+60A+60A+60A+60A |
||||
No.of MPP Trackers |
4 |
6 |
||||
No.of Strings per MPP Tracker |
4+4+4+4 |
4+4+4+4+4+4 |
||||
Output Side | ||||||
Rated Output Power |
70KW |
75KW |
80KW |
90KW |
100KW |
110KW |
Max. Active Power |
77KW |
82.5KW |
88KW |
99KW |
110KW |
121KW |
Nominal Output Voltage / Range |
3L/N/PE 220/380V, 230/400V |
|||||
Rated Grid Frequency |
50HZ / 60HZ(Optional) |
|||||
Operating Phase |
Three Phase |
|||||
Rated AC Grid Output Current |
106.1A/101.5A |
113.6A/108.7A |
121.2A/115.9A |
136.4A/130.4A |
151.5A/144.9A |
166.7A/159.4A |
Max. AC Output Current |
116.7A/111.6A |
125A/119.6A |
113.3A/127.5A |
150A/143.5A |
166.7A/159.4A |
183.3A/175.4A |
Output Power Factor |
0.8 leading to 0.8 lagging |
|||||
Grid Current THD |
||||||
DC Injection Current |
||||||
Grid Frequency Range |
45~55 or 55~65 (Optional) |
|||||
Efficiency | ||||||
Max. Efficiency |
98.8% |
|||||
Euro Efficiency |
98.3% |
|||||
MPPT Efficiency |
>99% |
|||||
