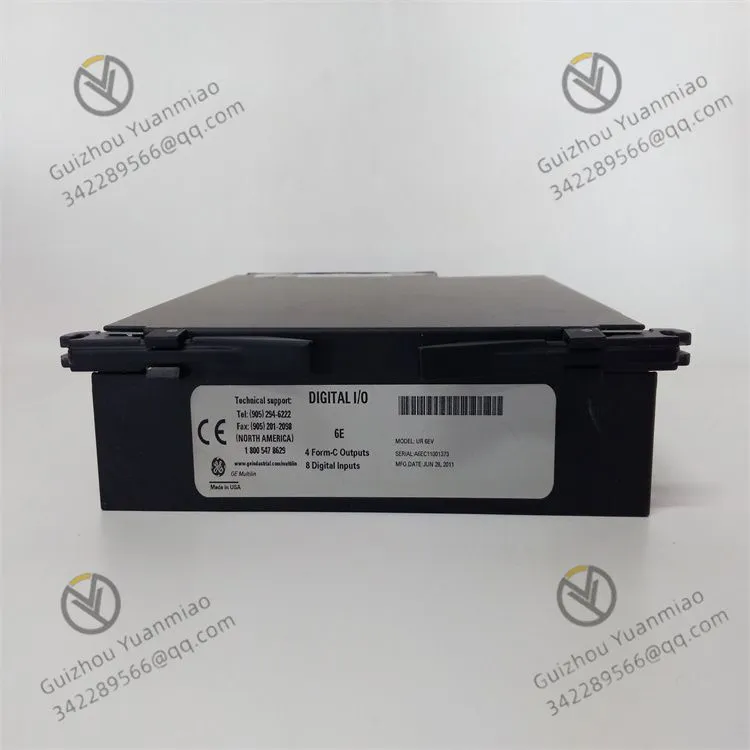

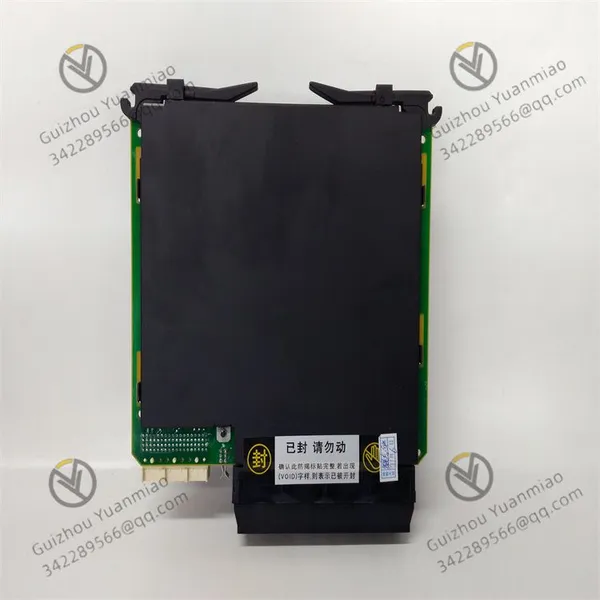

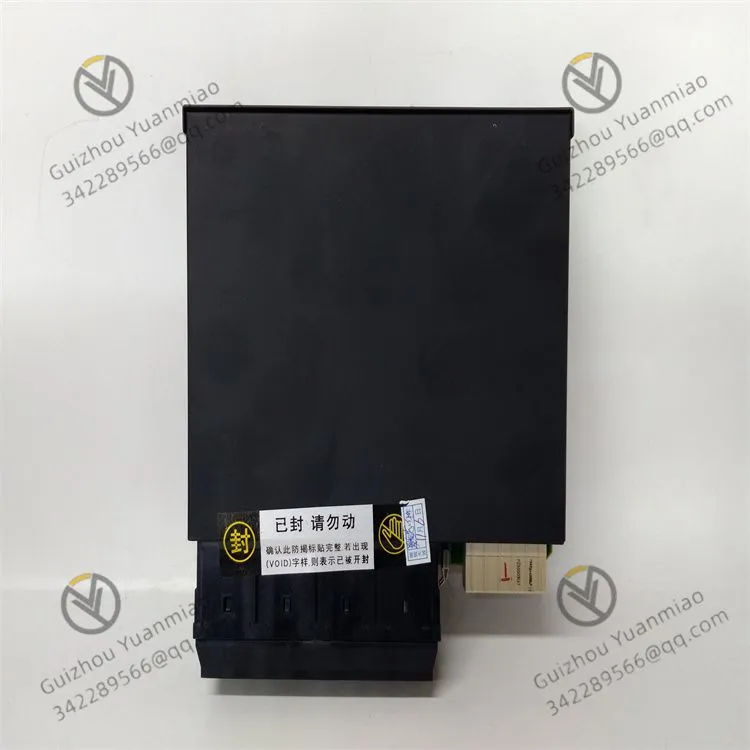

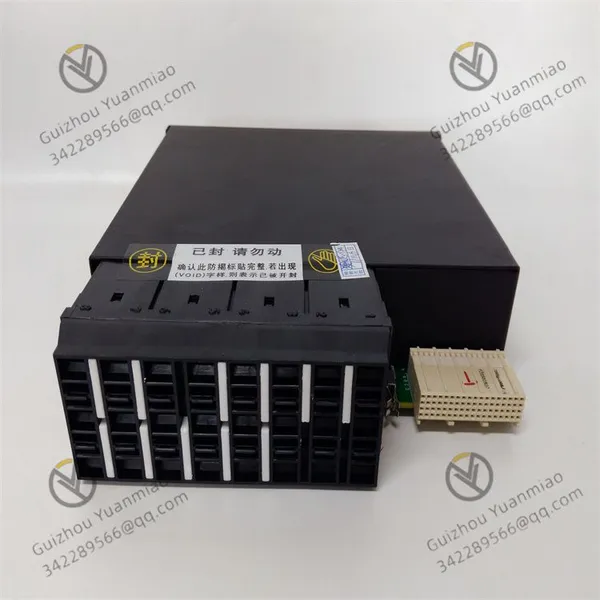

GE UR6EV contact input group isolation terminal board
Main functions: It features 24 dry contact inputs and can be connected to two grid-type terminal blocks on a contact input terminal board with group isolation for receiving switch signals from external devices. The noise reduction circuit in the contact input can protect against surges and high-frequency noise, ensuring the stability of the signal input. Supports simplex and TMR applications, can work with VTCC/VCRC, connect to VME racks, and provide reliable contact signal input for the system.
Working principle
Signal input: The UR6EV has 24 dry contact inputs and can be connected to two grid-type terminal blocks on the contact input terminal board with group isolation. The switch signals of external devices are connected to these terminals through wiring, thereby inputting the switch status at the physical level into the module.
Signal processing: The noise reduction circuit in the contact input can process the input signal, protecting it from surges and high-frequency noise interference, and ensuring the stability and accuracy of the input signal. The processed signal can be connected to the VME rack and work in conjunction with VTCC/VCRC, etc., to transmit the signal to subsequent control systems, such as I/O processors, for logical judgment and control of the system.
Power supply: For contact excitation, the TBCI (contact Input terminal board) is coupled with a DC power supply, and the nominal voltage is usually 24V DC. In some applications, such as the dry contact input on H1, it is powered by a floating 125V DC (100-145V DC) power supply controlled by a turbine, and the current of this power supply is limited in the distribution module to ensure the safe and stable operation of the system.
Diagnostic mechanism: The module will measure the excitation voltage. If the excitation is lower than 40% of the nominal voltage, the I/O component/board will set and lock the diagnostic warning. All the inputs of the power strips can be set to the open contact (fault-safe) state, and inputs that fail the diagnostic test will be forced into fault-safe mode. A malfunction will also occur if the input from this board does not match the TMR voting values from all three boards. In addition, each terminal board connector has its own ID device. The I/O packet/board will query this device to accurately identify and diagnose the status of each connection and input.
Application scenarios
Industrial automation: It can be used to monitor the operating status of production equipment, such as the start and stop of motors and the opening and closing of valves, accurately input these switch signals into the control system, so as to achieve the automatic control and monitoring of the production process. For instance, in an automotive manufacturing production line, it is used to monitor the working status of equipment at each workstation, providing signal support for the coordinated operation of the production line.
Process control: In industries such as chemical engineering, petroleum, and pharmaceuticals, it can monitor discrete states during the production process, such as the pressure switch status of the reaction vessel and the position signals of pipeline valves, helping the control system to promptly understand key state information during the production process and achieve precise process control and safety protection.
Building automation: It can be used to monitor the switch status within a building, such as the opening and closing of doors and Windows, the operation status of elevators, the status of lighting switches, etc., and can also monitor the status of security equipment, such as access control systems, alarm sensors, etc. Transmit these signals into the building automation control system to achieve intelligent management of building equipment and security monitoring.
Energy management: It can be used to monitor and control the status of switches and sensors in energy systems, such as the opening and closing status of switches in substations and the operating status of generators in power plants, providing data support for the stable operation and optimized dispatching of energy systems.
Transportation system: In aspects such as signal light control and traffic monitoring, it can be used to detect traffic conditions, such as the signal input of vehicle detectors and the on/off status of signal lights, which is conducive to achieving intelligent control of traffic signals and monitoring and management of traffic flow.
