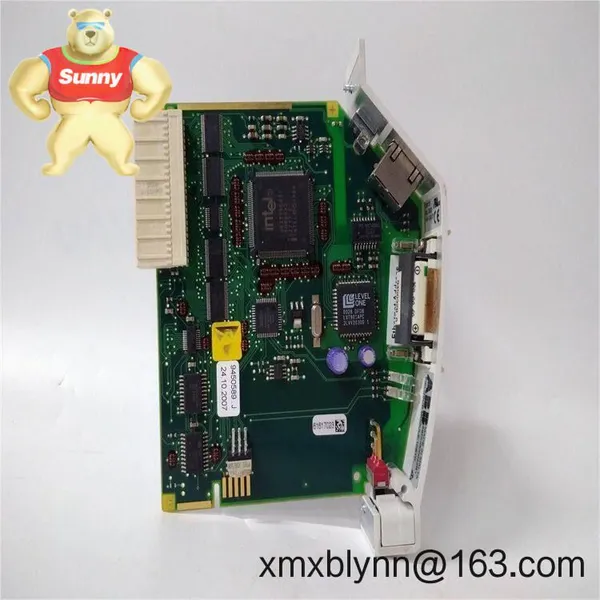

Help CenterABB EI811F (3BDH000020R1) – Ethernet Interface Module for ABB Freelance/AC 800F Control Networks
Related Products
-
ABB FC95-22 (HESG440295R2 / HESG448688R22) – Procontrol P14 Control Module for Reliable DCS OperationUS$ 1360.00MOQ: 1 Combo -
ABB EI812F (3BDH000021R1) – Ethernet Interface Module for Freelance AC 800F Control SystemsUS$ 1360.00MOQ: 1 Combo
-
ABB EST125-975 + DCC2382A – Motor Feedback and Control Interface for ABB Drive SystemsUS$ 2360.00MOQ: 1 Combo
-
ABB G3ESa (HENF318736R1) – Original Spare Module for ABB Automation CabinetsUS$ 4360.00MOQ: 1 Combo
-
ABB GCC960C103 (3BHE033067R0103 / 3BHE033068P106) – Gate Control Card for ABB Medium-Voltage Drive Gate UnitsUS$ 2360.00MOQ: 1 Combo
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Ethernet connectivity (10/100Base‑T) – Provides a reliable network link for AC 800F controllers and engineering stations.
Backplane-powered – Draws power from the system bus, so no external PSU wiring in most cases.
Status LEDs – Quick link/activity diagnostics help maintenance teams verify network health at a glance.
Tight cabinet integration – Slim module housing fits standard AC 800F racks, keeping panel layouts tidy.
Engineering-friendly – Typically recognized smoothly within Freelance engineering tools, simplifying commissioning.
| Brand / Model | ABB EI811F, Order code 3BDH000020R1 |
| HS Code | 853890 (Parts for industrial control panels/PLCs) |
| Power Requirements | Backplane powered via AC 800F/Freelance rack (no external field power) |
| Operating Temperature | 0 to +55 °C (typical for this module class) |
| Communication Interfaces | Ethernet 10/100Base‑TX (RJ45), status LEDs for link/activity |
| Signal I/O Types | N/A (communication interface module) |
| Installation Method | Mounts on AC 800F/Freelance rack; DIN-rail cabinet mounting of rack |
| Dimensions & Weight | Compact AC 800F module form factor (slim width); light-weight housing |
The EI811F is commonly used in:
Upgrading ABB Freelance networks in chemical and petrochemical units, where secure controller-to-HMI links are needed.
Pharma and food plants that standardize on AC 800F and want clean Ethernet integration for batch or OEM skids.
Water and wastewater stations connecting remote cabinets to the SCADA layer over 10/100 Ethernet.
Brownfield retrofits where adding an extra network interface in the AC 800F rack shortens commissioning time.
A maintenance lead at a specialty chemicals site told us they swapped in EI811F modules during a weekend window and had comms up within hours—no panel rework, just tidy patch cords and quick checks on the LEDs.
Reliability – Industrial‑grade Ethernet with simple diagnostics reduces nuisance downtime.
Compatibility – Designed for ABB Freelance/AC 800F ecosystems; typically recognized by standard engineering tools.
Lower integration cost – Backplane power and compact form factor avoid extra PSU and cabinet changes.
Lifecycle support – Easy to stock as a spare; simplifies on‑site swap and recovery procedures.
Cabinet environment – Install on the designated AC 800F rack inside a clean, ventilated enclosure; maintain ambient 0…+55 °C and avoid condensation.
Wiring – Use industrial Ethernet patch cords; keep cable routing away from high‑EMI power lines. Verify link/activity LEDs after connection.
Grounding – Follow ABB cabinet grounding practices; ensure rack and DIN-rail bonding is intact.
Safety – De‑energize the rack before inserting or removing the module. Observe ESD precautions when handling.
Routine checks – Periodically inspect RJ45 contacts, clean dust with dry air, and review network diagnostics in the engineering tool. Firmware updates, if applicable, should follow ABB release notes.
CE marking and RoHS compliance for industrial environments
UL/CSA recognition is commonly available for ABB control modules of this class
Manufacturer warranty: 365 days from shipment
Each unit is inspected and packed to protect connectors and PCB during transit
If you’re replacing a legacy interface or standardizing spares, the EI811F seems to be a safe choice—compact, predictable, and easy for technicians to validate during a tight shutdown window.
