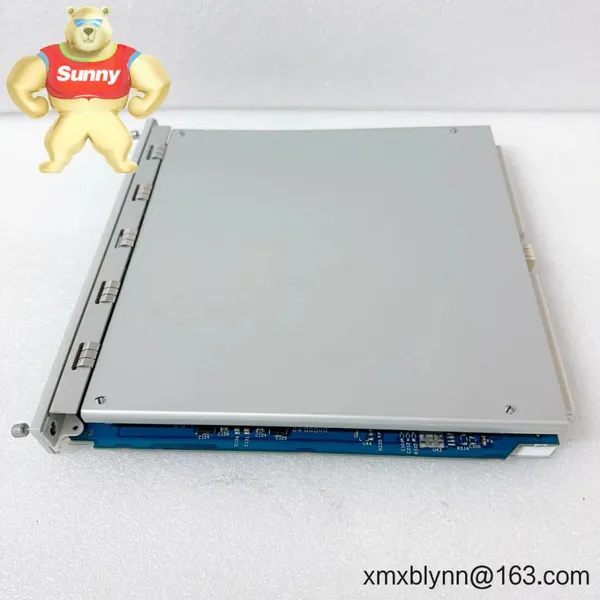

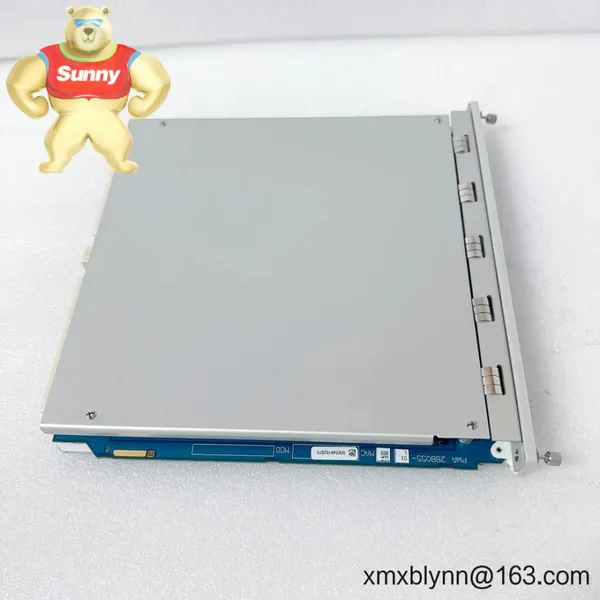

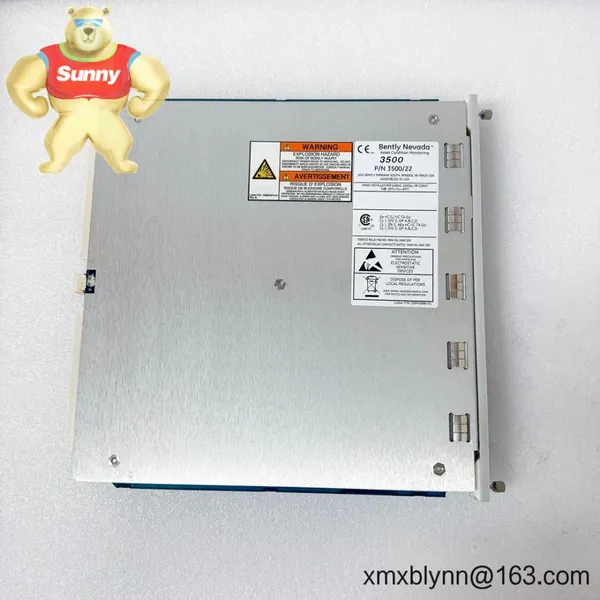

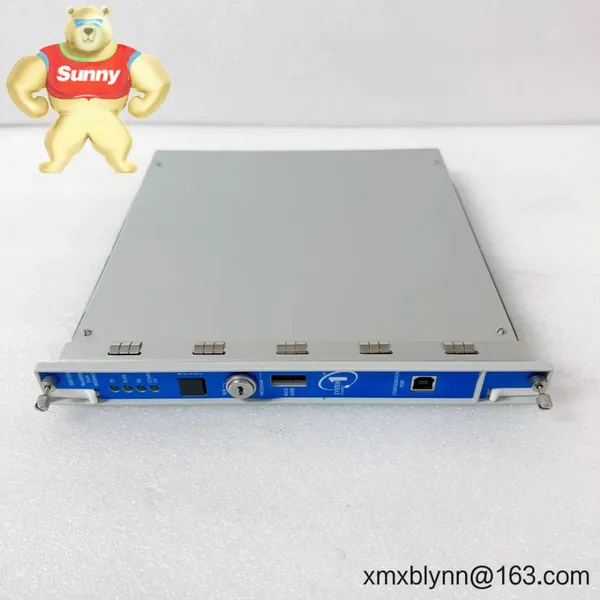

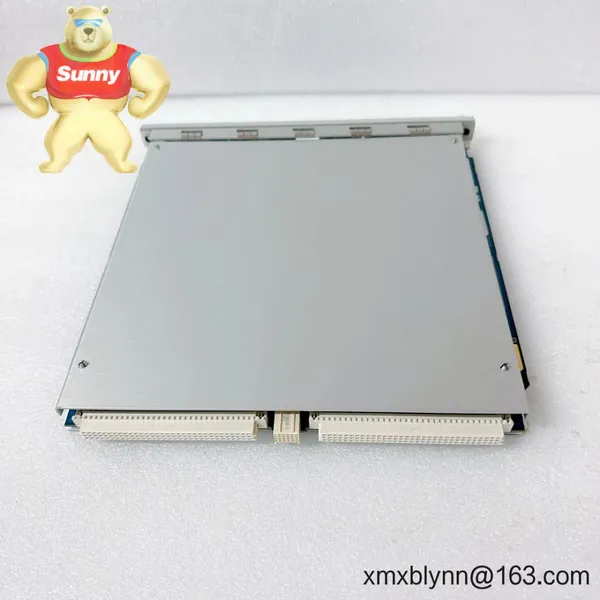

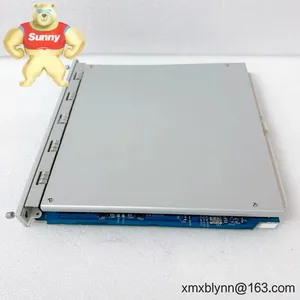

Help CenterBently Nevada 3500/22M (P/N 288055-01) – Transient Data Interface for 3500 Machinery Protection Racks
Related Products
-
BENTLY 3500/91M EGD Communication Gateway – Deterministic Ethernet Link From Your 3500 Rack to GE Control NetworksUS$ 3216.00MOQ: 1 Blade -
BENTLY 3500/42M 176449-02 — Multi-channel Proximitor/Seismic Monitor for Critical Machinery ProtectionUS$ 3216.00MOQ: 1 Blade
-
Bently Nevada 3500/92-01-01-00 Communication Gateway Module – Ethernet Bridge for 3500 Rack Data to DCS/SCADAUS$ 3216.00MOQ: 1 Blade
-
Bently Nevada 3500/70 Expansion Monitoring Module – Real-time Turbine Expansion Measurement and Machinery ProtectionUS$ 3216.00MOQ: 1 Blade
-
Bently Nevada 9200-06-01-10-00 Velocity Seismoprobe – Reliable Case Vibration Sensing for Rotating MachineryUS$ 3216.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week for in‑stock items; no more than 1 month at the latest
Payment: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Transient and steady-state data capture – Records high-resolution dynamic waveforms during startups, shutdowns, and alarm events, which seems to be the quickest way to troubleshoot real trips.
Rack-wide communications – Serves as the communication processor for the entire 3500 rack, aggregating status, alarms, and channel data.
Ethernet connectivity – Provides 10/100Base‑T for configuration and data streaming to System 1, reducing the need for additional gateways in many cases.
Backplane integration – No field wiring to the TDI itself; it pulls data directly from installed 3500 monitors over the rack backplane.
Event-driven recording – Captures trend and waveform data on specific triggers (e.g., alarm condition), which typically cuts the time-to-diagnosis after a shutdown.
Service-friendly design – Front-removable module; swap without disturbing any transducer terminations.
| Brand / Model | Bently Nevada 3500/22M (Transient Data Interface), P/N 288055-01 |
| HS Code | 903289 (Automatic regulating or controlling instruments and apparatus, other) |
| Power Requirements | Powered via 3500 rack backplane; no external power supply required |
| Communication Interfaces | Ethernet 10/100Base‑T (RJ45) for rack configuration and data exchange with System 1 |
| Signal I/O Types | Backplane data interface only; acquires static/dynamic data from installed 3500 monitors (no direct transducer terminations) |
| Installation Method | Plug‑in module for the designated TDI position in a 3500 rack; front-removable |
| Operating Temperature | Typically −5 to +65 °C (follow official 3500 system manual for exact limits) |
| Dimensions & Weight | Standard 3500 full‑height module; fits the 3500 rack mechanical envelope |
| Software Compatibility | Integrates with Bently Nevada System 1 for configuration, trending, and waveform analysis |
You might notice that this module shows up wherever machinery protection is mission‑critical. Common deployments include:
Oil & gas – compressors, gas turbines, turboexpanders
Power generation – steam turbines, generator trains, large fans
Petrochemical & refining – process pumps, blowers, extruders
Metals, pulp & paper, mining – high-value rotating assets where transient capture speeds root-cause analysis
A maintenance lead at a gas processing plant told us the TDI saved hours during a hot restart: they pulled the trip waveform straight into System 1 and isolated a rub event without a second shutdown.
Reliability – Designed for continuous service in the 3500 ecosystem; fewer standalone boxes means fewer failure points.
Compatibility – Works across 3500 monitors via the backplane and streams to System 1; no custom wiring.
Lower lifecycle cost – Event-driven capture reduces unplanned outages and shortens diagnosis time.
Service & support – Widely supported in the field; spares and firmware support are typically straightforward to manage.
Mounting – Install in the designated TDI slot of the 3500 rack; ensure the rack is properly secured in a cabinet or panel with adequate ventilation.
Environment – Keep the enclosure clean and dry; avoid conductive dust; maintain temperature within the 3500 system rating.
Wiring – No field transducers land on the TDI. Use quality shielded Ethernet to the plant network or System 1 server; segregate from high-noise power cables.
Safety – De-energize the rack or follow live-swap procedures per the official manual; observe ESD precautions.
Routine care – Periodically verify network link status, back up rack configuration, review event logs, and apply approved firmware updates during planned outages.
Typically CE marked and UL/cUL recognized for industrial use
Manufacturer quality system commonly certified to ISO 9001
Designed to meet RoHS guidelines in most markets
Warranty: 365 days
