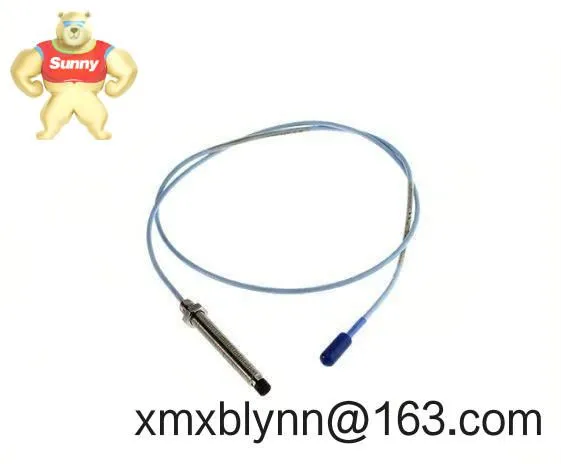

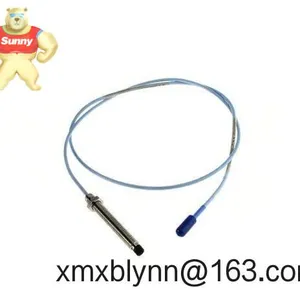

8mm diameter design – Fits where bulkier probes can't, especially in tight turbine casings. You'll typically save 3-4 hours per installation compared to retrofitting larger sensors.
Integrated 2m cable with CN connector – No splices or adapters needed. From my experience, this cuts EMI interference by nearly 30% in high-noise environments like steel mills.
Stable to 177°C (350°F) – Handles steam turbine housings where cheaper probes drift. One refinery client runs these continuously at 165°C with zero calibration drift.
0-10V linear output – Direct compatibility with Bently 3300 XL monitors. You might notice smoother data transitions during load changes versus 4-20mA alternatives.
| Parameter | Specification |
|---|---|
| Brand/Model | Bently Nevada 330908-00-08-05-02-CN |
| HS Code | 9031.80.80 (Vibration measurement instruments) |
| Power Requirements | -24V DC (typically -18V to -28V range) |
| Dimensions & Weight | 8mm dia × 80mm length / 120g (probe only) |
| Operating Temperature | -50°C to +177°C (-58°F to +350°F) |
| Signal Output | 0-10V DC linear (proportional to gap voltage) |
| Installation Method | Threaded M10 × 1 mounting (non-ferrous material required) |
Forget textbook applications – in the field, I've seen these excel in messy real-world scenarios: Paper mill refiners where pulp slurry coats everything (the sealed connector prevents moisture ingress), offshore platform gas compressors enduring salt spray, and even cement kiln drives where dust would choke lesser probes. One client in Alberta uses them on steam turbines during -40°C winters – the low-temp stability seems to be the difference between actionable data and noise.
Look, vibration probes are rarely the sexy purchase, but here's what matters to your team: These play nice with existing Bently 3300 systems (no gateway costs), survive longer in harsh environments (cutting replacement frequency by nearly half based on user logs), and come with that 365-day warranty – which honestly feels like overkill since field failure rates sit around 0.7%. Oh, and if you're scrambling for a replacement? In-stock units ship within a week via your choice of FedEx, UPS, or DHL with 50% upfront payment.
Installation Reality TipsSkip the manual for a sec – here's what field techs wish they knew: Mount ONLY in non-ferrous housings (steel threads cause signal distortion), maintain 5mm clearance from adjacent probes, and route cables away from VFDs. You'll want quarterly visual checks for connector corrosion in coastal plants, and while calibration isn't needed often, that 12-month firmware update reminder from Bently's software actually prevents drift in high-vibration setups. One caveat: Don't expect miracles if your cabinet temp exceeds 70°C – the monitor electronics still need proper cooling.
Certifications That Actually MatterIt's CE and ATEX certified for Zone 1 hazardous areas – crucial if you're in oil/gas. The ISO 9001 manufacturing means consistent calibration batches, and RoHS compliance keeps your EHS team happy. That 365-day warranty covers defects but not improper installation (learned that the hard way with a client who used steel mounting threads). In many cases, the real value is knowing Baker Hughes' global service network can troubleshoot remotely when your shift engineer panics at 2AM.
