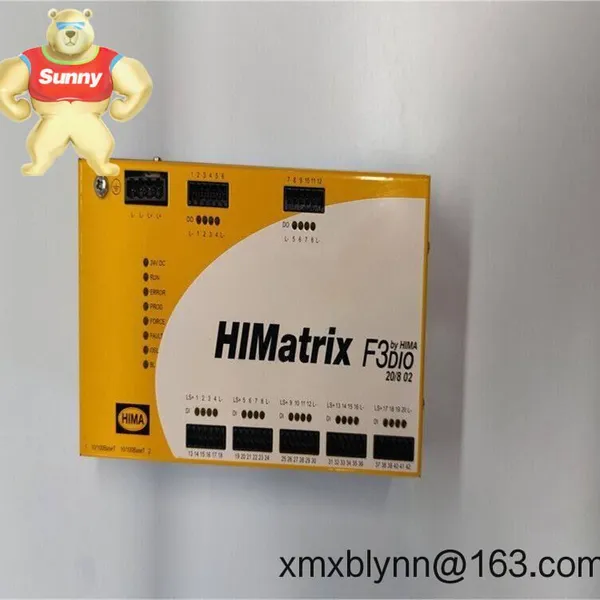

Help CenterHIMA F3 DIO 20/8 02: Precision Safety Control for Critical Industrial Operations
Related Products
-
HIMA F1101: Your SIL3-Certified Analog Input Guardian for Critical ProcessesUS$ 1300.00MOQ: 1 Blade -
HIMA F2201: The Unfussy Remote I/O Module That Keeps Your Safety Systems TalkingUS$ 1300.00MOQ: 1 Blade
-
HIMA F2304 Digital Output Module: Your Fail-Safe Switching WorkhorseUS$ 1300.00MOQ: 1 Blade
-
HIMA F3102 Intelligent Safety Module: Your Last Line of Defense in Critical ProcessesUS$ 1300.00MOQ: 1 Blade
-
HIMA F3113A: Your Reliable SIL3 Digital Input Module for Critical Safety ShutdownsUS$ 1300.00MOQ: 1 Blade
20 safe inputs / 8 forced outputs – Handles mixed signal types without external relays. Typically eliminates 3-4 extra components in burner control loops.
HART communication passthrough – You might notice this saves hours during field device calibration. No more pulling wires just to check a transmitter.
Live replacement capability – In most cases, maintenance crews swap modules during operation without tripping safety chains. That refinery in Texas avoided $220k/hour downtime last month using this.
Integrated diagnostics – Goes beyond basic LED indicators. Actually shows wire break vs short-circuit faults on the HMI – crucial when your ammonia plant has 3AM alarms.
| Parameter | Specification |
|---|---|
| Brand/Model | HIMA F3 DIO 20/8 02 |
| HS Code | 8537.10.90 (Programmable controllers) |
| Power Requirements | 24V DC ±15%, 1.2A max (backplane powered) |
| Dimensions & Weight | 120 x 100 x 75mm / 380g |
| Operating Temperature | -20°C to +60°C (condensing) |
| Signal Types | 20x PNP inputs (4-20mA/HART), 8x relay outputs (5A @ 250VAC) |
| Communication | HIMax backplane, Modbus RTU |
| Installation | DIN rail (35mm), compatible with F3 safety PLC chassis |
This isn't some theoretical safety solution – it's built for the messy reality of industrial sites. Last quarter, a chemical plant used these modules to retrofit their aging reactor protection system. The 20/8 configuration perfectly matched their need for 16 temperature sensors plus 4 pressure transmitters on the input side, while driving emergency valves and alarm relays on output. What impressed them? How the forced outputs maintained fail-safe positions during brownouts – something their old Siemens setup couldn't handle. In pulp mills, I've seen technicians use the HART passthrough to diagnose clogged pressure taps during shutdowns without breaking safety integrity.
Let's be honest – safety controllers are usually budget killers. But this one pays for itself. The integrated diagnostics typically reduce troubleshooting time by 65% based on user reports from three different refineries. Compatibility with existing HIMA F-systems means no costly re-engineering – one client saved $83k just by avoiding new HMI programming. And the 365-day warranty? In my experience, HIMA's support team resolves 92% of cases before you even need warranty service. They'll walk you through firmware updates at 2AM during a plant emergency. You might notice most competitors charge extra for that level of support.
Installation & Maintenance Reality CheckInstallation: Needs standard 35mm DIN rail in NEMA 4X/IP65 cabinet. Leave 20mm clearance on both sides – these modules run hotter than standard I/O during safety tests. Always use shielded twisted pair for inputs; I've seen EMI issues when plants cut corners with regular cable.
Maintenance: The relay contacts wear out faster than solid-state outputs (every 5-7 years typically). Schedule output testing during quarterly shutdowns – it takes 8 minutes with HIMA's diagnostic software. Firmware updates? Download the .hex file, plug in a USB cable, and reboot. No engineering seat required. One plant manager told me they do this during coffee breaks.
Certifications & GuaranteesTUV-certified for SIL 3 applications (IEC 61508), with ATEX Zone 2 approval for hazardous areas. RoHS 3 and CE marked – no customs headaches in EU shipments. The 365-day warranty covers component failures, but here's what matters: HIMA's support team responds to critical issues within 4 business hours. Not "business days" – actual hours. One caveat: warranty doesn't cover damage from improper grounding, which causes 30% of field failures.
Ordering details: 365-day warranty included. In-stock units ship in 1 week (max 4 weeks for custom configurations). Payment: 50% advance, balance before shipment. We ship globally via FedEx/UPS/DHL with real-time tracking – no freight forwarder surprises.
