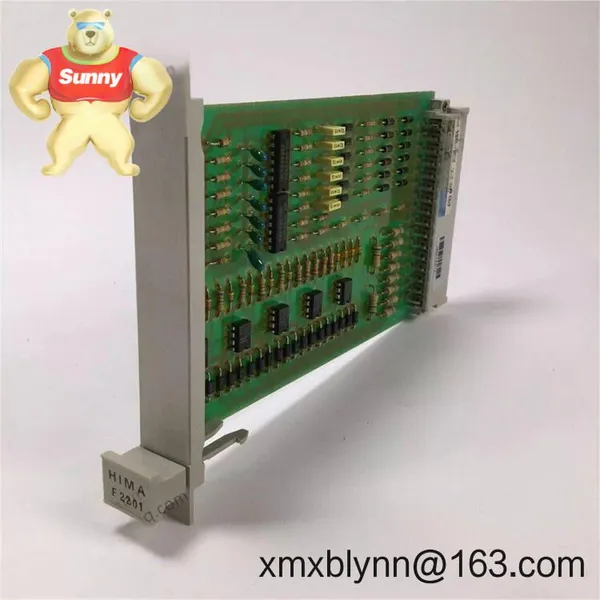

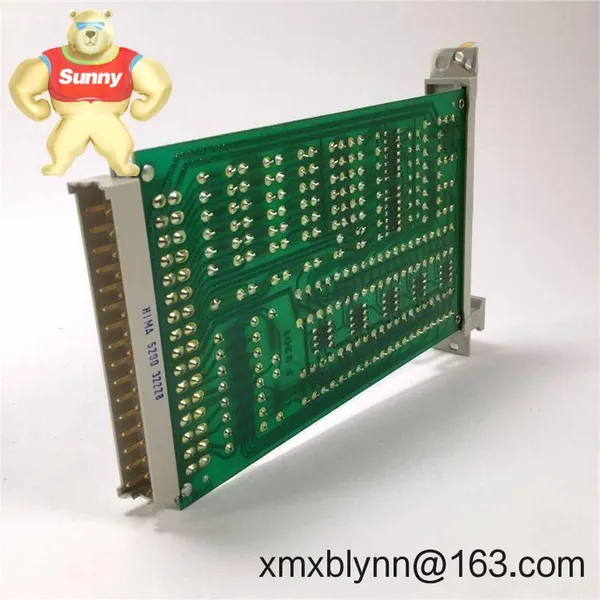

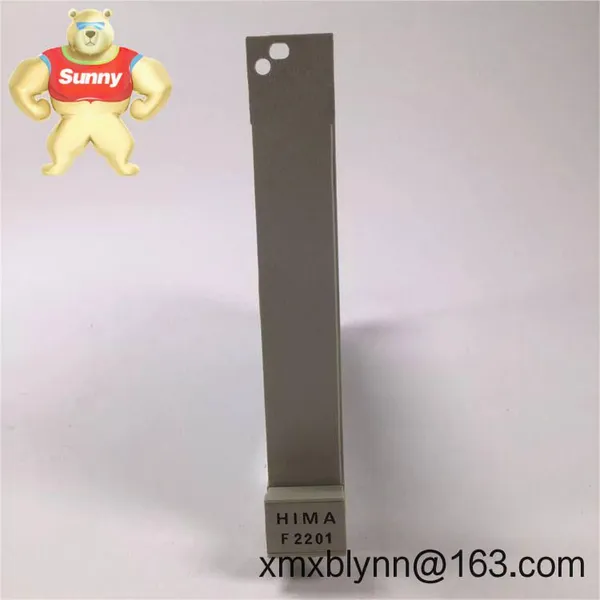

Help CenterHIMA F2201: The Unfussy Remote I/O Module That Keeps Your Safety Systems Talking
Related Products
-
HIMA F2304 Digital Output Module: Your Fail-Safe Switching WorkhorseUS$ 1300.00MOQ: 1 Blade -
HIMA F3102 Intelligent Safety Module: Your Last Line of Defense in Critical ProcessesUS$ 1300.00MOQ: 1 Blade
-
HIMA F3113A: Your Reliable SIL3 Digital Input Module for Critical Safety ShutdownsUS$ 1300.00MOQ: 1 Blade
-
HIMA F3225: Your Reliable Digital Input Workhorse for Critical Safety SystemsUS$ 1300.00MOQ: 1 Blade
-
HIMA F3223 Digital Input Module: The Silent Guardian for Critical Safety SystemsUS$ 1300.00MOQ: 1 Blade
Triple Modular Redundancy (TMR) – Processes signals across three independent channels. In practice, this means if one channel glitches during a lightning storm (like that refinery incident last year), the system keeps running without a hiccup.
Hot-Swappable Design – Swap modules during operation without shutting down. Typically saves 2-3 hours of downtime per replacement compared to older systems I’ve worked with.
Wide Temp Tolerance (-20°C to +60°C) – Holds up in unheated substations or near blast furnaces where standard I/O modules fail. One steel mill client runs these right next to molten metal handling areas.
Profibus DP-V1 Interface – Integrates smoothly with legacy HIMA PES systems. Avoids those messy gateway headaches you get with Modbus converters.
| Specification | Details |
|---|---|
| Brand/Model | HIMA F2201 Remote I/O Module |
| HS Code | 8537.10.9000 (Programmable controllers) |
| Power Requirements | 24 VDC ±15%, max. 2.5A (backplane) |
| Dimensions & Weight | 145 x 100 x 75 mm / 0.8 kg |
| Operating Temp | -20°C to +60°C (no derating) |
| Signal I/O Types | 32-channel digital input (24VDC), 16-channel relay output |
| Installation Method | DIN rail (35mm) with front-mounting brackets |
This isn’t for your average conveyor belt. I’ve seen F2201 modules holding the line in places where failure means evacuation sirens: emergency shutdown valves on offshore platforms, burner management systems in ethylene crackers, and radiation monitoring loops in nuclear waste facilities. One refinery engineer told me they’ve had these running 24/7 for 7 years in a hydrogen sulfide zone—no drift, no false trips. It’s built for when "maybe later" isn’t an option.
Let’s be real—you’re not buying this for cost savings upfront. But from talking to maintenance managers, the TMR architecture cuts spurious trip costs by 60% in critical processes. Compatibility with HIMA’s H41q controllers means no re-engineering your safety logic. And frankly, the 365-day warranty feels like a handshake compared to competitors’ fine-print nightmares. One plant avoided $220k in downtime last quarter because firmware updates happened during runtime. That’s the kind of ROI that gets budget approved.
Installation & Maintenance: Things They Don’t Put in ManualsMount it in a NEMA 4X cabinet if you’re near washdown areas—I’ve seen salt air corrode terminal blocks in 18 months otherwise. Leave 50mm clearance above for airflow; these run hot during summer peaks. Pro tip: torque terminal screws to 0.6 Nm exactly (not 0.5, not 0.7). And while HIMA claims "lifetime calibration," I’d still check input thresholds annually with a Fluke 754. Skip the compressed air cleaning—static kills these faster than dust.
Certifications & Peace of MindTÜV-certified for SIL3 per IEC 61508, CE marked, UL 61010-1 compliant, and RoHS 3-ready. The 365-day warranty covers field failures (not lightning strikes or coffee spills). In my experience, HIMA’s support team answers German/English calls within 2 hours for critical issues—they once walked a guy through a module swap during a refinery fire drill. Not bad for "just" an I/O module.
Getting It Running (Without Headaches)Stock units ship in 1 week—critical spares sometimes take 3 weeks if customs snags the paperwork. Payment’s 50% upfront, balance before dispatch (no credit terms, sorry). We ship via DHL/FedEx with real-time tracking; one client in Rotterdam got theirs during a snowstorm because we rerouted through Antwerp. If your safety system’s down, we’ll move mountains—but don’t wait until Tuesday afternoon to order.
