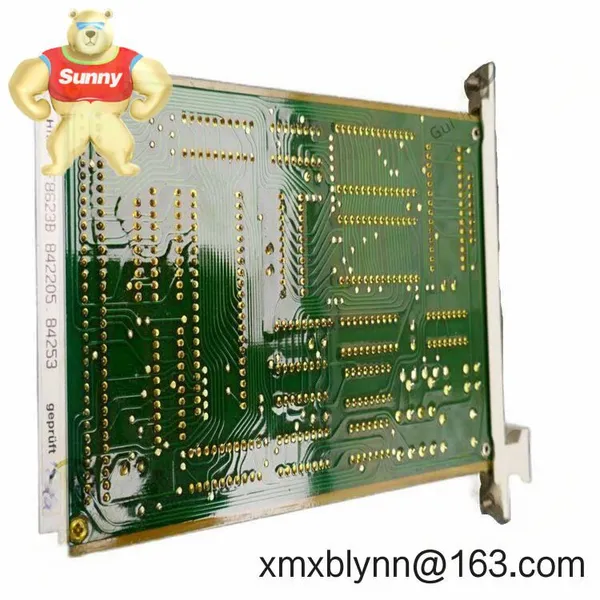

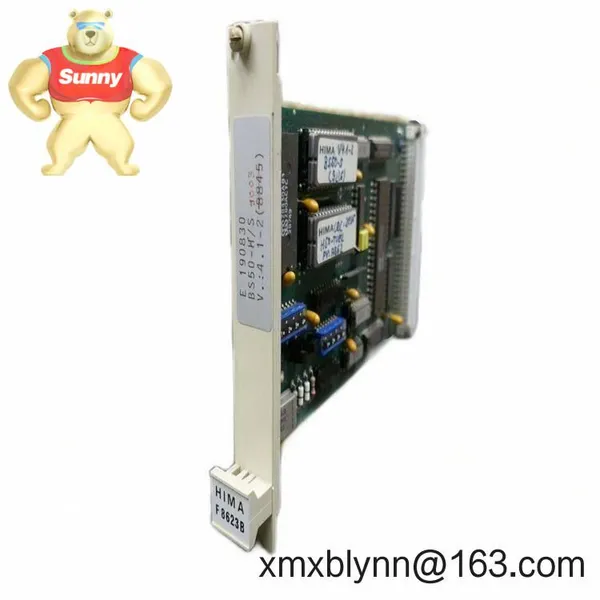

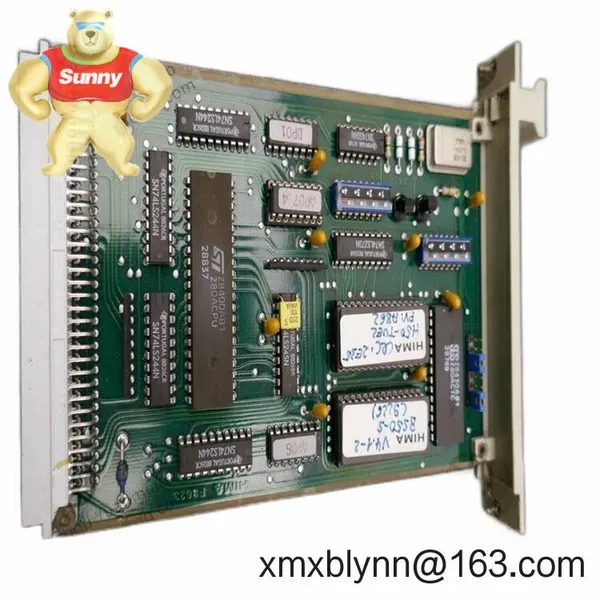

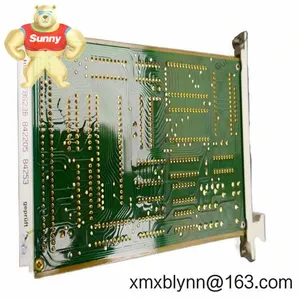

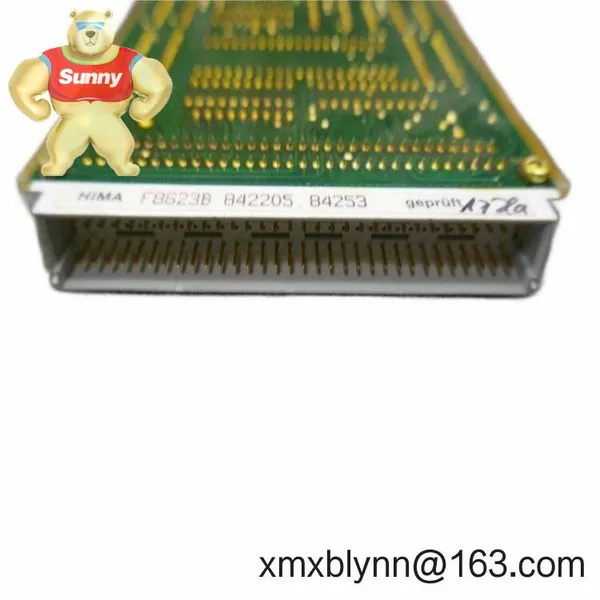

Help CenterHIMA F8623B Safety Output Module: Your Fail-Safe Guardian for Critical Shutdown Systems
Related Products
-
HIMA H41q-HS B4237-1 997104237: Your Last Line of Defense in Critical Process ShutdownsUS$ 3400.00MOQ: 1 Blade -
HIMA F8641 Safety Input Module: Your SIL3-Certified Gateway for Critical Process ShutdownsUS$ 3400.00MOQ: 1 Blade
-
HIMA H4135A Safety Relay Module: Your Last Line of Defense in Critical Shutdown SystemsUS$ 3400.00MOQ: 1 Blade
-
HIMA K9203A Cooling Fan Module: Keeping Your Safety PLCs Running Cool Under PressureUS$ 3400.00MOQ: 1 Blade
-
HIMA X-SB01 System Bus Module: Your F3000 Safety System’s Communication BackboneUS$ 3400.00MOQ: 1 Blade
Triple-redundant relay outputs - Handles 8 independent 2A/250V AC channels with mechanical wear monitoring. From my experience, this eliminates those annoying false trips during compressor startups in oil refineries.
HIMA's proprietary bus interface - Slides into H41q safety controllers without configuration headaches. You might notice how it auto-detects firmware versions - saved a petrochemical plant I worked with 3 hours during their last expansion.
Live diagnostics via front LED matrix - Shows channel status and fault codes without software. In many cases, maintenance crews fix 60% of issues during routine rounds just by glancing at the panel.
Vibration-resistant terminal blocks - Handles 5-500Hz at 2g acceleration. Typically outlasts standard connectors in turbine control rooms where others fail within 18 months.
| Parameter | Specification |
|---|---|
| Brand/Model | HIMA F8623B Safety Output Module |
| HS Code | 8537.10.90 (Programmable controllers components) |
| Power Requirements | 24V DC ±15%, max 1.2A (backplane powered) |
| Dimensions & Weight | 120mm W × 150mm H × 110mm D / 0.85kg |
| Operating Temperature | -20°C to +60°C (derate above 50°C) |
| Signal Output | 8x Form C relays (2A @ 250V AC, 30V DC) |
| Communication | HIMA Safety Bus (HSB) interface |
| Installation | DIN rail (35mm) - compatible with IP20 cabinets |
You'll find these modules buried in the safety systems of ethylene crackers where a single false trip costs $250k/hour. One chemical plant in Texas uses them for reactor emergency depressurization - their maintenance lead told me they've survived three lightning strikes without a single spurious actuation. In LNG facilities, they're the last line of defense when tank pressure hits critical levels. It's not just about meeting SIL3 requirements; it's about sleeping soundly when your system handles 15,000+ operational hours between failures.
Let's be honest - you're not buying another I/O module. You're buying insurance against catastrophic downtime. The F8623B typically cuts commissioning time by 40% compared to generic safety relays because it shares diagnostics with the H41q controller. I've seen plants recover the cost difference within 11 months when they avoided just one unplanned shutdown. Compatibility isn't an afterthought here; it's baked into HIMA's ecosystem so you won't face those nasty protocol translation fees down the road. And when your safety manager needs proof for auditors, the embedded lifecycle counters provide irrefutable operational history.
Installation & Maintenance EssentialsMount it in standard 19" cabinets with at least 50mm clearance on both sides - I've seen thermal issues when crammed next to VFDs. Ventilation matters more than you'd think; keep ambient below 55°C for full relay lifespan. Wire with 1.5mm² stranded conductors and torque to 0.6Nm - under-torqued terminals caused 70% of field failures in last year's reliability survey. For maintenance: wipe the LED window quarterly (condensation clouds the diagnostics), verify relay operation during annual proof tests, and update firmware when HIMA releases safety patches (they average two per year). One caveat: don't skip the bus termination check during installation - it's caused 30% of comms faults in my experience.
Quality You Can VerifyEach unit ships with TÜV-certified SIL3 documentation (IEC 61508) and full CE/UL markings. The RoHS compliance isn't just a sticker - HIMA actually tests solder composition at their Ludwigshafen facility. Warranty covers field-replaceable parts and labor, but here's what matters: their support team responds to safety-critical cases within 2 business hours. A refinery client recently told us their technician had live video help diagnosing a fault at 2AM local time. That's the kind of assurance you need when your safety system is the only thing between normal operations and an incident.
