45 Gallon Flammable Safety Cabinet — OSHA CE Compliant, Compliance Costs Less Than a Fire
Product Overview
The 45 gallon flammable safety cabinet stores solvents, fuels, paints, and other Class I–III flammable liquids at the point of use. Double wall cold rolled steel with a 40mm insulating gap between inner and outer panels keeps internal temperature below ignition threshold during a fire. OSHA compliant. CE certified.
This is the capacity most workshops and labs actually pick — big enough for standard solvent containers and gallon cans, small enough to sit against a wall without eating floor space.
Manual close door locks at three points with dual-key access. Grounding wire prevents static discharge. Leakproof sump catches spills before they reach the floor. Adjustable flame arrestors on both side vents let air circulate without letting flame through.
Luoyang Hengna Office Furniture Co., Ltd. — directly partnered with production facilities, nine years in steel cabinet export. Quote within 24 hours.

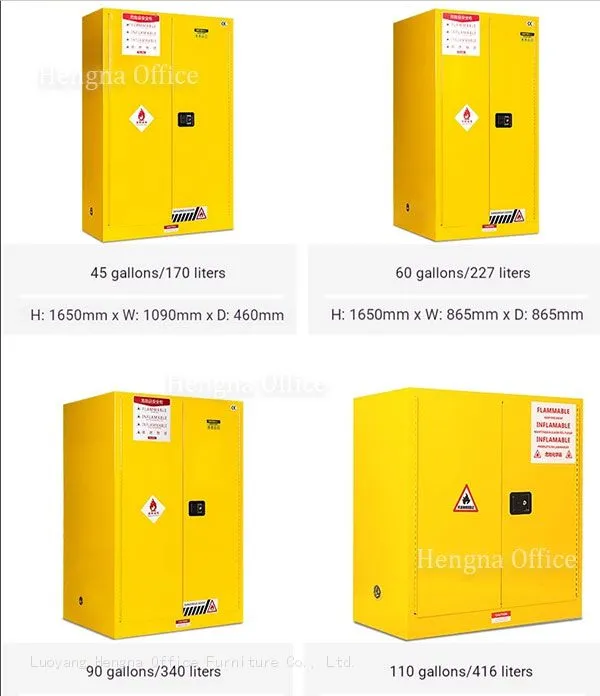

45 Gallon Flammable Safety Cabinet Specifications
| 45 Gallon — Yellow | |
|---|---|
| External (H×W×D) | 1650 × 1100 × 460 mm |
| Internal (H×W×D) | 1500 × 1007 × 370 mm |
| Material | Cold rolled steel, powder coated |
| Wall Construction | Double wall, 40mm insulating gap |
| Color | Yellow (flammable liquids) |
| Shelves | 2 adjustable, with spill trays |
| Door Type | Manual close, left or right swing |
| Lock | Three-point latching, dual key |
| Certifications | OSHA Compliant, CE Certified |
| Warranty | 1 year |
Key Features

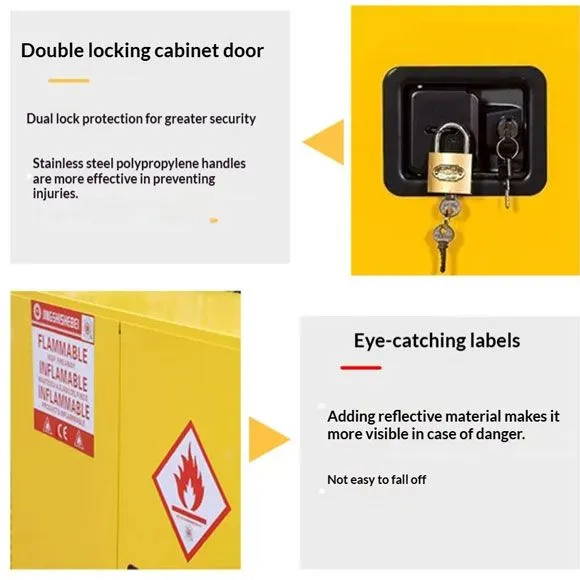

Three-point locking, dual key
The door catches at top, bottom, and latch side — three contact points, not one. Two keys come standard. Different shifts, different key holders, unauthorized access stops at the lock.
40mm double wall fire barrier
Two steel panels with a 40mm gap in between. Air is a poor conductor. During a fire, the inner panel stays cooler longer. Enough time for sprinklers to kick in or evacuation to complete.
Leakproof sump at the base
Bottom tray sits below the lowest shelf. Spill a solvent container — liquid pools in the sump, not on the floor. Wipe it out, move on.

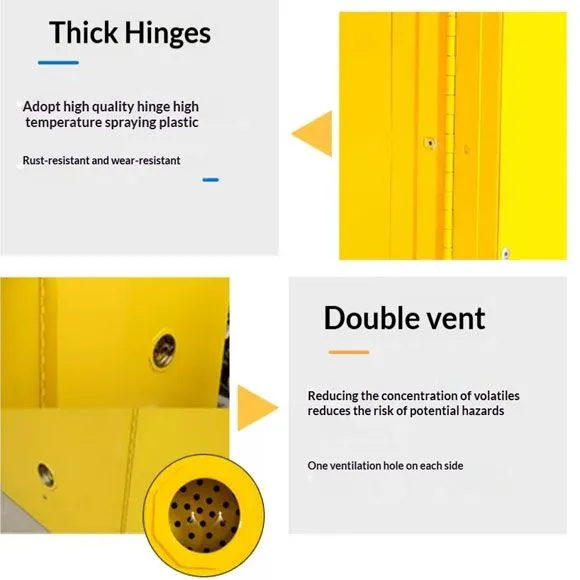

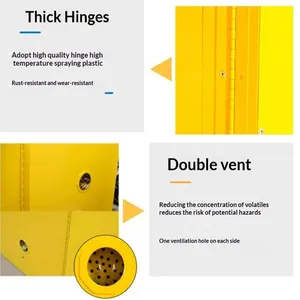

Adjustable flame arrestors on both vents
Left vent low, right vent high — cross-ventilation without forced air. Each vent has a perforated cap that prevents external flame from flashing inside. The cap opens or closes by hand for seasonal temperature changes.
Static grounding wire
Built-in grounding lug with lead wire. Connect to the building ground. No static buildup. No spark. No ignition source sitting in a cabinet full of vapor.
OSHA color coding — yellow
OSHA 1910.106 and NFPA 30 specify yellow for flammable liquid storage. Walk past it, and the color tells the story before the label does. Fire inspector sees yellow cabinet, checks one box, moves on.

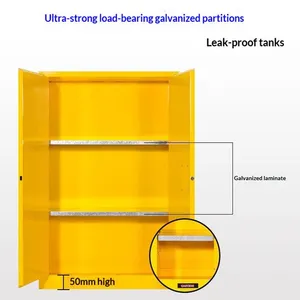

Two adjustable shelves with spill containment
Shelf height adjusts in roughly 75mm increments. Each shelf lip forms a secondary spill barrier — if a container tips over on the shelf, liquid stays on that shelf instead of cascading down.
Reflective hazard label
Foil-backed "FLAMMABLE — KEEP FIRE AWAY" label on the door face. Visible in low light, readable during a power outage. Firefighters can identify cabinet contents before entering a room.
Applications
Auto repair shops and body shops
Thinners, reducers, aerosol cans, brake cleaner — all Class I flammables. A 45 gallon cabinet holds the daily-use stock without storing drums. Fits next to the paint mixing station or solvent parts washer. Fire marshals in most jurisdictions require rated storage for any shop with more than 25 gallons of combined flammables.
University and industrial laboratories
A lab bench holds solvents in glass bottles — methanol, acetone, xylene, ethanol. Five bottles tip over, and a fume hood doesn't save anyone. A yellow cabinet under the bench keeps the daily supply within arm's reach but separated by two layers of steel and 40mm of air. Most university EHS departments mandate flammable cabinets for any lab with more than 10 liters on site.
Manufacturing and assembly lines
Production floor chemical stations — isopropyl alcohol for cleaning, spray lubricants, contact cleaners. Operators grab what they need and return it. The cabinet sits at the production station, not 100 feet away in a separate chemical room. That 100 feet is where compliance gets ignored and bottles pile up on the bench.
Print shops and ink mixing rooms
Solvent-based inks and blanket wash. The 45 gallon size holds standard ink containers plus wash-up solvents. Double wall construction matters here because printing rooms are often small, warm, and packed with paper — a flash fire in a single wall cabinet spreads faster than in a double wall one.
Pharmaceutical and chemical storage
Intermediate solvents and reagents used in quality control labs. Temperature stability from the 40mm air gap matters when storing reference standards that degrade with heat. Yellow cabinet signals "flammable inside" to any auditor walking through.
Installation & Delivery
The cabinet ships flat to reduce freight cost. Components include the body panels, doors, shelves, hardware, and assembly instructions.
Packaging: moisture film wraps each panel. Corner protectors on all edges. Separate part packing prevents scratches during transit.
Assembly: two people, about 45 minutes. All hardware included. Drill not required — pre-punched holes align at assembly.
Lead time: 7–15 days for standard yellow 45 gallon. 20–30 days for custom colors, lock configurations, or quantity orders.
Freight: FOB or CIF — quoted per destination and order volume. A dedicated freight specialist handles the documentation for each shipment.
FAQ
What certifications does this cabinet hold?
OSHA compliant per 29 CFR 1910.106 and NFPA 30. CE certified for the European market. Certification documents are provided with the commercial invoice.
What is the MOQ?
One cabinet. Small trial orders accepted — run it through a fire inspection cycle before committing to a bulk order.
What warranty comes with it?
One year against manufacturing defects. Replacement parts ship within the warranty period at no charge.
Can I put a company logo on the door?
Yes. Silkscreen logo, custom packaging, and custom manuals are available through the OEM program. MOQ and lead time for custom branding are quoted per project.
How fast do quotes come back?
Within 24 hours. Send the quantity and delivery port, and a quote with FOB and CIF options comes back the same day or next business day.
Door hinge — left or right swing?
Standard configuration is right-hinged. Left-hinged available on request at no extra charge. Specify at ordering.

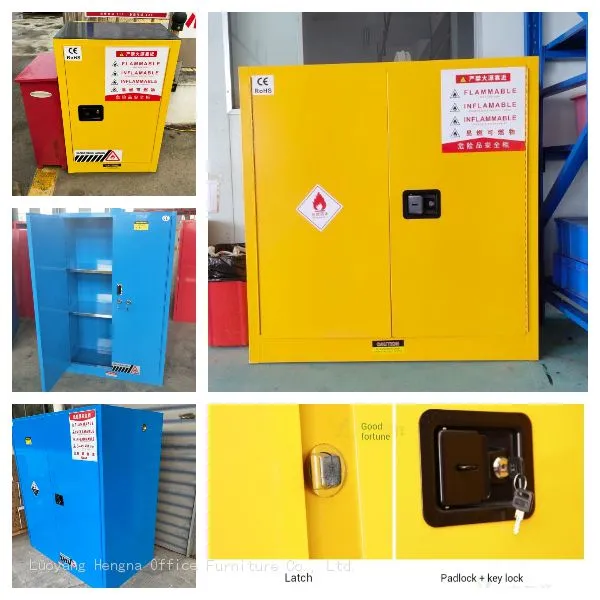

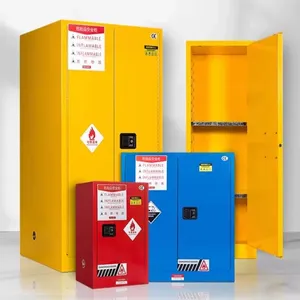

What's the difference between yellow, blue, and red cabinets?
Same construction, different color coding. Yellow = flammable liquids (this model). Blue = corrosive chemicals. Red = combustible liquids like paints and oils. The color follows OSHA and NFPA guidelines for visual hazard identification.
Do I need a self-closing door?
Depends on local fire code. Many jurisdictions accept manual close doors for cabinets under 60 gallons when the cabinet is in a sprinklered area. If local code requires self-closing, specify at ordering — it's available as an option.
Get a Quote
Send the quantity, destination port, and any custom requirements. The quote covers FOB and CIF pricing with current lead times.
What to include:
Quantity of 45 gallon cabinets
Delivery port or address
Door swing preference (left / right)
Self-closing door required? (yes / no)
Custom branding needed? (logo / packaging / manuals)
