Please notes:
PFE-31028-1DT ,shaft diameter is 19.05mm.
PFE-31028-3DT ,shaft diameter is 22.22mm.
PFE high performance vane pump series, a total of single pump (PFE - 31/41/51/32/51/32) and double pump (PFED - 43/54) eight series, 75 specifications. The displacement range of 16.5 ~ 150 ml/r, pressure rated for 21 ~ 30 mpa, speed range is 600 ~ 2800 r/min (hydraulic co., LTD. On this basis, the quality and to develop two pounds - 21/61 series of single pump, extends the scope of delivery is 5 ~ 250 ml/r).
The pump design process is unique, the eccentric shaft pins blade structure, with high pressure, large flow, small volume, smooth running, low noise, high efficiency, long life and other advantages, the main technical indicators reached international advanced level.
This series of pump is instrumentation type structure. The optimum design for the machine core, further reducing the pressure and flow pulsation and noise. Back plate structure is the same as before, with a symmetrical groove, and hydraulic balance, are adopted to ensure the consistent deformation and compensation, which can obtain better volumetric efficiency. The reasonable design of blade root and dowel pin oil supply system, to ensure good contact between the blade and the stator, and makes the flow losses to a minimum. The unique design, reasonable selection of high precision machining and materials makes the pump has a very good life.
PFE series with complete specifications, excellent performance, reliable, simple and reasonable structure, easy installation and maintenance (installation meet ISO/SAE standards), can be widely used in machine tools, pressure die casting machinery, engineering machinery, metallurgy, mining, light industry, chemical machinery, agricultural machinery and all kinds of hydraulic system, etc.

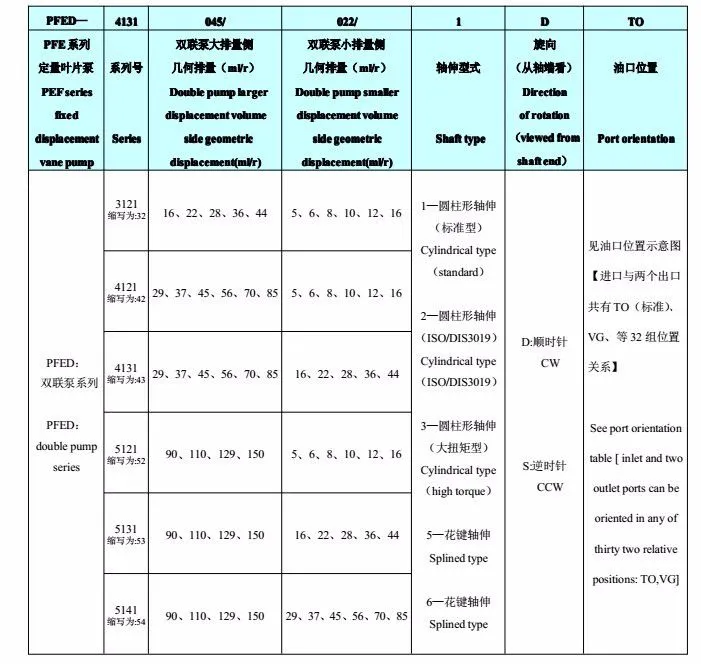

Model specification
1. The structure of the code: PEFD double pump series
2. Serial number: 43, 54
3. The main parameters: the large lateral displacement geometric displacement (ml/r)
4. The main parameters: a small lateral displacement geometric displacement (ml/r)
5. The shaft extension style: 1 - cylindrical shaft (standard) 2 - cylindrical shaft the reach (ISO/DIS3019)
3 - cylindrical shaft extension (high torque type) 5-6 - spline shaft the reach of spline shaft (reinforced)
6. Rotate to look from the shaft end: D: S: clockwise counterclockwise
7. Oil mouth location: see oil mouth sketch map [two import and export of the TO (standard), VG 32 groups such as the position relationship]
8. Applicable fluid mark: no mark: petroleum base water glycol/PF: phosphate
Note: 1. 24 CST anti-wear hydraulic oil viscosity, the oil temperature of 50 ° C
2. Weight: 24.5 kg, in the size of the oil imports: 5/2 ", before the pump exports: 1 ", after the pump discharge: 3/4"
Our company now supply a large number of piston pumps, motors, reducers and related spare parts. The main manufacturers are: Rexroth, Hitachi, Komatsu, Kawasaki, Caterpillar, NACHI, Toshiba, Kobelco / Kato etc.
The specific models are:
|
Hitachi series: |
HPV050; HPV080; ZX120-6 main pump (HPK055); HPV091 (EX200-2/3, EX120-2 single pump); HPV102 (EX200-5/6); HPV116 (EX200-1); HPV118 (ZX200-3, ZX270 main pump)etc. |
|
Komatsu excavator main pump series: |
HPV35 (PC60); HPV55 (PC120); HPV90 (PC200-3); HPV90 (PC200-5); PHV95 (PC200-6, PC120-6 except the pump shaft); HPV132 (PC300-7, PC400-6); HPV160 (PC300/400-3/5); HPV135; PC30UU; PC40-8 main pump; PC50; PC60, etc. |
|
Caterpillar series: |
VRD63 (CAT120) double pump; SBS80 (CAT312C) main pump; E200B (new) double pump; AP-12 double pump; AP-14 (CAT325C); CAT320C double pump; SPK10/10 (E200B) double pump; SPV10/10 (MS180) double pump; CAT12G; CAT14G/16G; CAT215; CAT245; CAT330B travel motor; PSV450 (AP-12) walking; CAT992; CAT330C walking; CAT385H. |
|
Kayab (KYB, kayaba) series: |
PSVD2-16E (Shanhe Intelligent 1.6-2 tons); PSVD2-21C (KYB); PSVD2-21E (KYB) 4T/SVD22 small digging main pump; PSVD2-26E/27E (KYB); KYB-25CC (Ishikawashima 45, Kubota K040/K045); Ishikawajima 60; PSVL-54 (KYB Kubota 6 ton 155 excavator). |
|
The Nachi series: |
PVD-2B-32L; PVD-2B-34 walking; PVD-2B-34L (small digging main pump); PVD-2B-36L/38/40; PVD-2B-42; PVD-2B-63; PVD45; 130; PVK-2B-505 (ZAX55 main pump); YC35-6 Yuchai small digging rotary motor; YC35-6 Yuchai small digging travel motor; PCL-200-18B (Yuchai 55 revolution); Bobcat 331 excavator ( Turn); Bobcat 337 (walking motor). |
|
Toshiba series: |
SG02; SG025 (MFB40); SG04 (MFB80); SG08 (MFB160); SG12; SG20 (MFB250); PVB92 (PVC90RC08/PVC70R) (Toshiba 8 tons, Yuchai 8.5 tons excavator); PV090; PV092 (PV080 universal) ;PSVS-90. |
|
JEIL series: |
JMV-44/22; JMV-53/34 (6-8 ton small excavator travel motor); JMF-64; JMV 147/95; JMF-151-VBR (22SM1510117); JMF-155. |
|
Liebherr series: |
LPVD45; LPVD64; LPVD75; LPVD90; LPVD100; LPVD100 new (914); LPVD125; LPVD125 new; LPVD140; LPVD250; LPVD260. |
|
Kobelco / Kato Series: |
SK250-8 main pump; SK200-1/3 travel motor; SK220-3 (MA340 travel motor); SK200-6 travel motor; SK200-6 walking new; SK320 travel motor; M3V150 (SK220-2) travel motor; SK430 walking Motor; Kato 400 excavator motor; HD450V-2 (Kato); HD3000; DH55 (Daewoo 55 excavator slewing motor); T3X128/Daewoo 300-7 slewing; Daewoo 225-7 walking; Daewoo DH370 slewing; Hyundai 60-7 slewing Motor; modern 480 swing motor. |
|
Kawasaki series: |
K3SP36C (SDV36) 8 ton medium excavator main pump; K3V63DT (K3V63BDT); K3V112DT; K3V140DT; K3V180DT; K3V280; K3VG280; K3VG180; K3VL45; K5V80; K5V140 (Doosan 300-7); K5V160 (modern 300-6 main pump) ; M2X63; M2X96 (EX200-2); M2X120; M2X146 (EX200-5); M2X150/170 (EX400); M2X210 (EX270/280/300); M5X130 |
|
Nabtesco series: |
GM05VL; GM05VA; GM06VL (60 Daewoo walking); GM07VA (Daewoo DH55, Komatsu walking 60-7); GM08 (Komatsu 60-3 / 5 walking); GM09 (MSPG06-025 / PC60-7 travel motor); GM10; GM17 (PC120-3 / 5 walking); GM18; GM23; GM30H; GM35VA; GM35VL (travel motors); GM38VB (SK200-8, Kato travel motor 1023-3); DNB08. |
|
Rexroth Series: |
A4V40; A4V56; A4V71; A4V125; A4V250; A4VFO28; A4VSO40; A4VSO71; A4VSO125; A4VSO180; A4VSO250; A4VSO355; A4VSO500; A4VF500 / A4F500; A4VG28 (A4F028); A4VG50;; A4VG40; A4VG45 A4VG56; A4VG71; A4VTG71; A4VG90 (A4VT90HW / 32R); A4VHW90; A4VTG90 charge pump (Laid thick); A4VG125; A4VG125 Charge pump; A4VG125 charge pump (general use type); A4VG125 charge pump (A10VO28 string type); A4VG12 charge pump (large). |
|
Rexroth bent axis pump series: |
A2F5;A2F12;A2F23;A2VK28;2VK28;A2F28;A2F55;A2F80;A2F107;A2F160;A2F200; A2V225;A2F250;A2V500;A2V915;A2F355;A2F500;A2F1000; A2FO10;A2FO12;A2FO16;A2FO23;A2FO28;A2FO32;A2FO45; A2FO56; A2FO63; A2FO80; A2FO90 / A2FE90; A2FO107; A2FO125 (A2FM125); A2FO200;; A2FO160; A2FO180 A2FO250; A2FO500; A6V28; A7V55 / A8V55; A7V58; A7V80 / A8V80; A7V107 / A8V107; A7V160 / A8V160;A7V200; A7V225 ; A7V250; A7V355; A7V500; A6VM / A7V1000; A6VM / A7VO12; A7VO28; A7VO55; A7VO80; A7VO107; A7VO160; A6VM160; A6VE160; A6VM200; A6VM500; A7VO172; A7VO200; A7VO250; A7VO355; A7VO500. |
|
Sauer Series: |
PV20; PV21 (PVD21); PV22; PVD22 dual pump; PV23 (PVD23); PV24; SPV6 / 119; PV25; PV26; PV112; OPV27; MF16A; MFO35; MF500; MPVO46 / M46; MPR63; MPV45. |
|
Eaton Series: |
3321/3331 (Eaton 006); Eaton 3322 (EATON3322); 4621/4621-007; 5421/5431 (Eaton 23); Case 1460 (CASE1460); Case CS05A; Eaton 3932-243; Eaton 6423; 7621 (Eaton 24-7620); Road roller (Eaton 78462). |
|
Vickers series: |
PVE19;TA19;PVE21;PVH45;PVH57;PVH74;PVH81;PVH98;PVH106(HPN-1398);PVH131;PVH141;PVB5;PVB6;PVB10;PVB15(PVQ32 some common);PVB20;PVB29;PVBQA29-SR;PVQ40 /50; PVB110; TB35; B45. |
|
LINDE series: |
HPR55/75/105/135/165/210/280 ;MPV45-01 MPV63-01; HMR75/105/135/165;MPF55-01; MPR28/45/63/71; HPR75/90/100/130/160;BPV35/50/70/100/200;B2PV35/50/75/105/140; BMF35/55/75/105/140;BMV35/55/75/105/135; BPR55/75/105/140/186/260;HPV55T/75/105/135/165/210; HMF28/35/50/55/75/105/135/165/210;HPV130-01. |
|
Parker series: |
PVP16/23/33/41/48/60/76/100/140;PVM16/23/28;PV016/020/023/028/032/040/046/063;F11-005/006/012/014/019/10/28/39/80/110/150/250;F12-030/040/060/080/110/125/150/250;V12-060/080 V14-110/160;P2/P3-060/075/105/145;PAVC 33/38/65/100 |
