Home > Instruments & Meters > Test Instrument > Test Machine > HST WAW 1000D Hydraulic Universal Testing Machine Tensile Testing Machine Price Compression Testing Machine

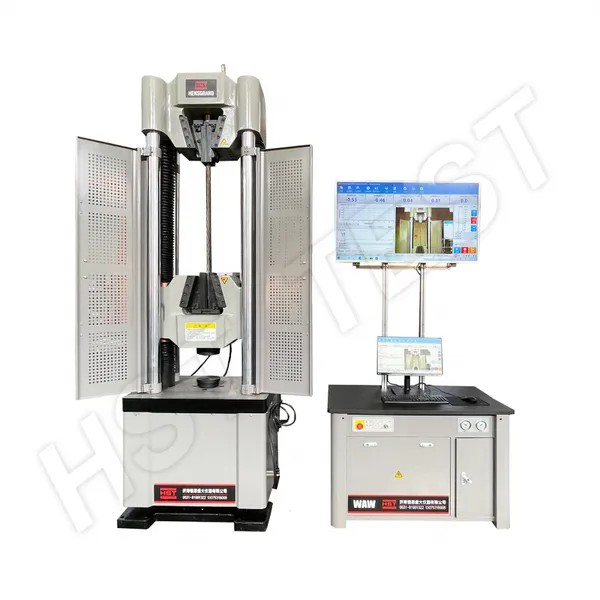

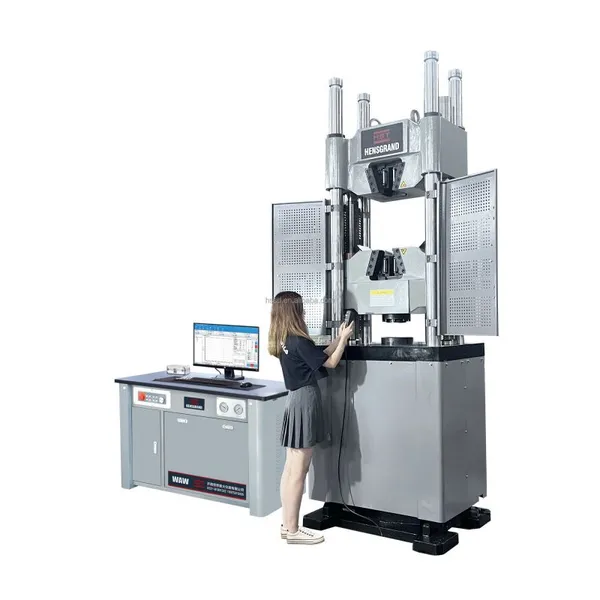

HST WAW 1000D Hydraulic Universal Testing Machine Tensile Testing Machine Price Compression Testing Machine
US$ 90972.70
1 - 4 Set
US$ 83974.80
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WAW-1000D 100T Steel Rebar Computer Electro Hydraulic Servo Tensile Compression Universal Testing MachineUS$ 34989.50MOQ: 1 Set -
HST Digital Display Hydraulic Universal Testing Machine Standard Jaws for Tensile Compressing and BendingUS$ 83974.80 - 90972.70MOQ: 1 Set
-
HST UTM-200Ton / 2000kN Hydraulic Universal Testing MachineUS$ 216934.90 - 223932.80MOQ: 1 Set
-
HST Factory Direct Sales UTM Hydraulic Stretch and Bend the Steel Bar Computerized Universal Tensile Test Machine PriceUS$ 83974.80 - 90972.70MOQ: 1 Set
-
300KN/500KN Computer Control Steel Strand Wire Tensile Stress Relaxation Testing MachineUS$ 1500 - 2500MOQ: 1 Set
Warranty
12months
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
3kw
Voltage
380 V
warranty
1YEAR
Product name
Hydraulic universal test machine
Application
Tensile, comprssion, bending test
Power supply
380V, 50HZ, 3P or customized
Sturcture
4 columns and 2 screws
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Max.piston stroke
250mm
100kN 300kN 500kN 600kN 1000kN 2000kN load cell servo hydraulic utm universal testing machine tester price WAW-B WAW-E
Product Description
Hydraulic Universal Testing Machine is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
| Model | WEW-300D | WEW-600D | WEW-1000D | WEW-2000D |
| Structure | 4 columns and 2 screws | |||
| Control way | loading process manual control,computer automatic data dealing | |||
| Max.load (kN) | 300kN | 600kN | 1000kN | 2000kN |
| Load accuracy | ≤±1% | |||
| Load range | 2%-100%FS | |||
| Load resolution | 1/300000 | |||
|
Deformation Measurement Range |
2%~100%FS | |||
| Deformation accuracy | ≤±1% | |||
|
Displacement resolution (mm) |
0.01 | |||
| Displacement error | ≤±0.5% | |||
| Max.piston stroke(mm) | 250 | |||
| Max piston moving speed | 0-90mm/min Manual adjustment | |||
| Crosshead lifting speed | 200mm/min | |||
| Max. tension test space |
750mm (can customize) |
650mm (can customize) |
650mm (can customize) |
850mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
500mm (can customize) |
500mm (can customize) |
650mm (can customize) |
| Column clearance(mm) | 420 | 475 | 525 | |
| Clamping method | Hydraulic clamp | |||
|
Round specimen clamping range (mm) |
Φ10-Φ20,Φ20-Φ32, (Φ4-Φ10 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ12-Φ30mm, Φ30-Φ50mm, Φ50-Φ70mm |
|
Flat specimen clamping range (mm) |
0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-35 mm |
|
Flat specimen clamping width(mm) |
80 | |||
| Compression plate size (mm) | φ160 | |||
| Bending roller distance(mm) | 450 | |||
| Width of bending rollers (mm) | 120 | |||
| Power supply | 3-phase,AC380V, 50Hz(can be customized) | |||
