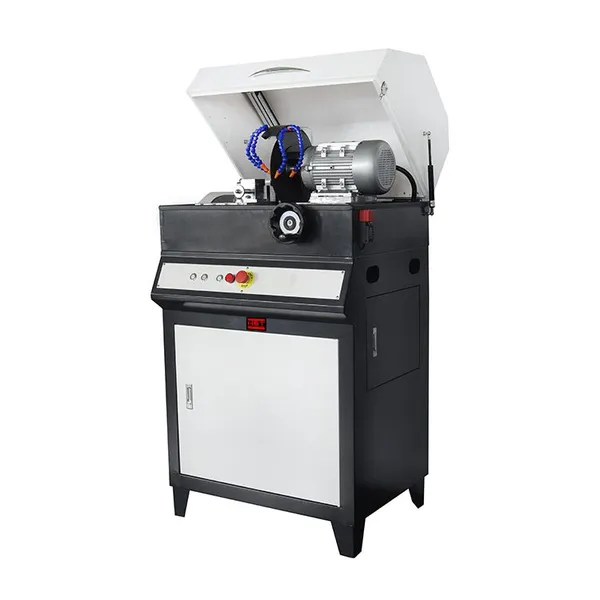

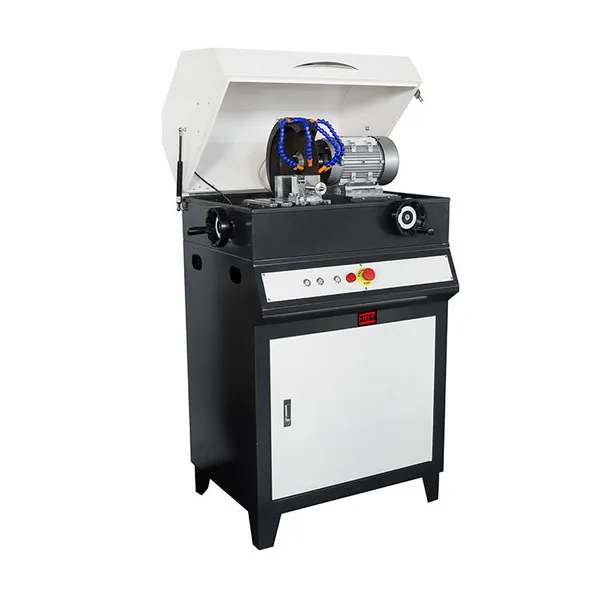

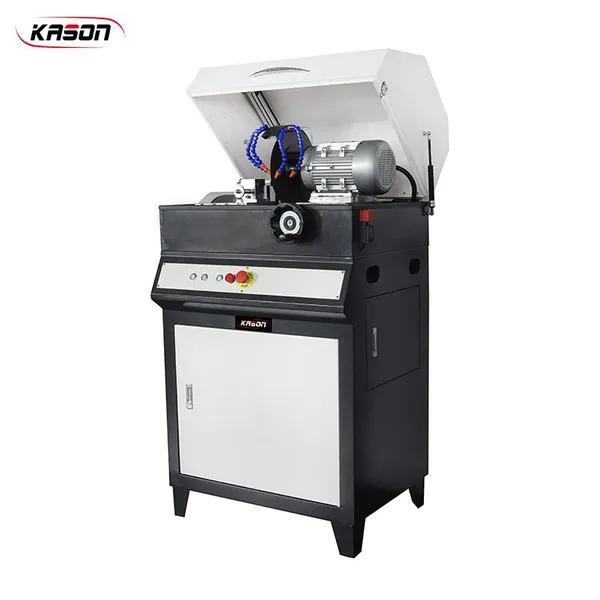

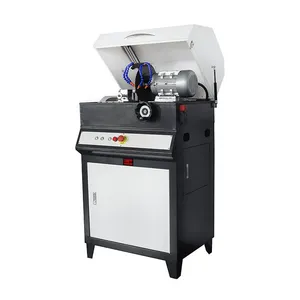

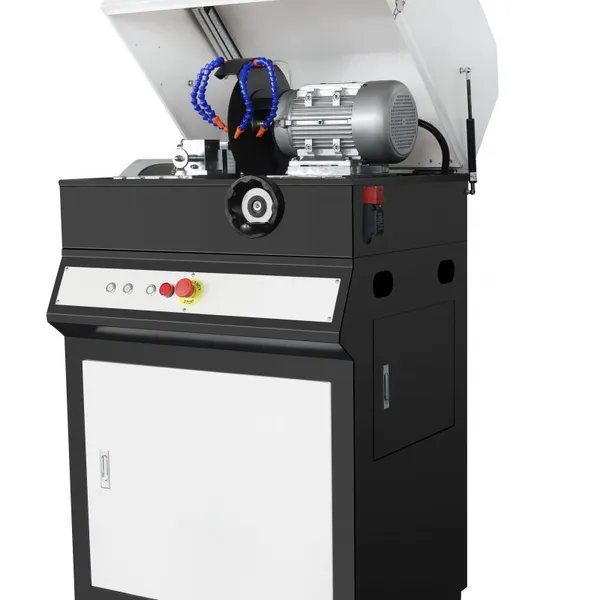

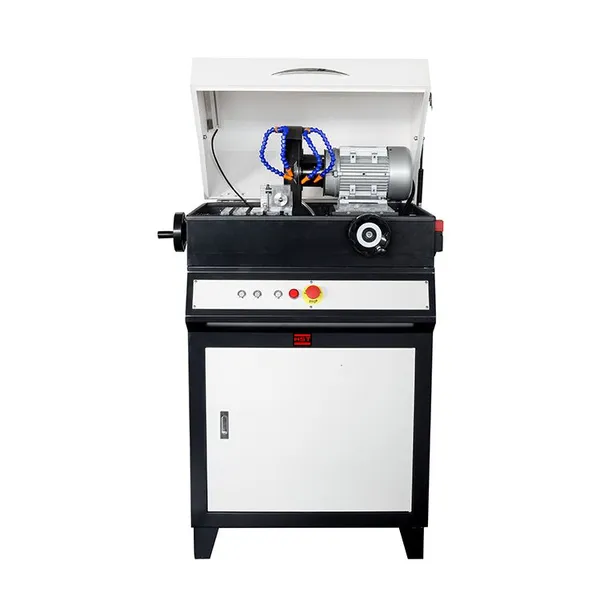

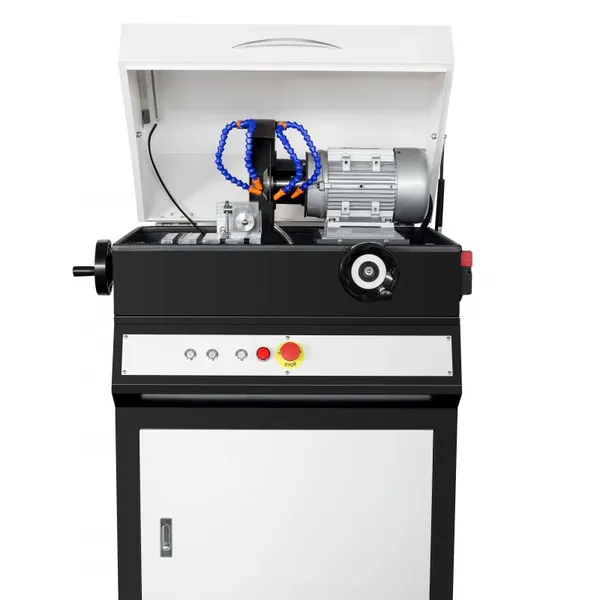

HST-QG4A Lab Grade Metallographic Cutting Machine 65mm Max Cut 2800rpm Cooling System With 1 Year Warranty
US$ 13016.10
1 - 4 Set
US$ 12526.25
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-Q100B Lab Grade Metallographic Testing Equipment Automatic Cutting Machine 60L Cooling System Manual/Auto Modes 1-YearUS$ 14345.70 - 15745.28MOQ: 1 Set -
HST-Q80Z Lab Grade 80mm Metallographic Automatic Cutting Machine 2100rpm Manual & Auto Modes 1 Year Warranty Testing EquipmentUS$ 13296.01 - 13645.91MOQ: 1 Set
-
HST-Q2A Lab Grade Metallographic Cutting Machine High Precision 2800rpm 50mm Max Cutting Section Cooling System 1 Year WarrantyUS$ 2939.12 - 3149.06MOQ: 1 Set
-
HST-P2T High Quality Dual Disc Metallographic Specimen Polishing Machine Low Noise 1-Year Laboratory Use WarrantyUS$ 2792.17 - 2932.13MOQ: 1 Set
-
HST-P2G High Quality Dual-Disc Metallographic Specimen Polishing Machine Low Noise 1-Year Warranty for Laboratory Testing UseUS$ 2792.17 - 2932.13MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing
customized support
OEM, ODM
power
2.2KW
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Multi-function Metallographic Cutting Machine
Cutting method
Manual
Cooling system
Water cooling 2 channels
Maximum cutting section
65mm
Cutting table size
210*180mm
Y-axis movement stroke
130mm
X-axis movement stroke
50mm
Net weight
210kg
Dimensions
780*620*1370mm
Products Description
Applications:
The HST-QG4A multifunctional cutting machine is mainly used to cut general metallographic sample materials with irregular shapes such as cylinders, polygons and bosses.
Features:
* This machine adopts a double-shell fully enclosed structure and a quick clamping mechanism, which can ensure that the sample is cut in an absolutely safe state.
* The machine is equipped with front, rear, left and right carriages. The thickness of the sample can be adjusted arbitrarily, and the feed speed can be controlled.
* The machine is equipped with a strong cooling system, and the sample can be rotated arbitrarily during cutting, which can avoid micro-burns on the surface of the sample when it is cut and dropped.
* It can increase the cutting cross section, improve the utilization rate of the cutting wheel, and has the advantages of convenient operation, use and maintenance.
* The machine is equipped with front, rear, left and right carriages. The thickness of the sample can be adjusted arbitrarily, and the feed speed can be controlled.
* The machine is equipped with a strong cooling system, and the sample can be rotated arbitrarily during cutting, which can avoid micro-burns on the surface of the sample when it is cut and dropped.
* It can increase the cutting cross section, improve the utilization rate of the cutting wheel, and has the advantages of convenient operation, use and maintenance.
Model |
HST-QG4A |
Maximum cutting section |
φ65mm |
Cutting table size |
210*180mm |
Y-axis movement stroke |
130mm |
X-axis movement stroke |
50mm |
Rotating speed |
2800r/min |
Grinding wheel specifications |
φ250*2*32mm |
Cutting method |
Manual |
Cooling system |
Water cooling 2 channels |
Machine type |
Vertical type |
Input power |
2.2KW |
Dimensions |
780*620*1370mm |
Package Size |
900*700*1400mm |
Net weight |
167kg |
Gross weight |
212kg |
Water tank size |
470*370*300mm |
Water tank packaging size |
540*460*460mm |
Water tank net weight |
15kg |
Water tank gross weight |
25kg |
