Home > Instruments & Meters > Test Instrument > Test Machine > SQ-80 Sample Cutter for Petrographic Metallographic Specimen Cutting Machine

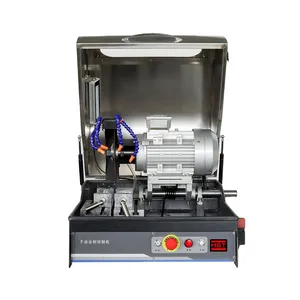

SQ-80 Sample Cutter for Petrographic Metallographic Specimen Cutting Machine
US$ 9027.30
1 Set
US$ 8747.38
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
/
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-MoPao3T Single-Disc Automatic Grinding and Polishing Testing Equipment With 1 Year WarrantyUS$ 11546.54 - 12526.25MOQ: 1 Set -
HST-MoPao3ST Metallographic Testing Equipment 1-Year Warranty Specimen Grinding and Polishing MachineUS$ 12456.27 - 12596.22MOQ: 1 Set
-
HST-MP2 Double-Disc Manual Grinding and Polishing Testing Equipment Machine With 1-Year WarrantyUS$ 4058.79 - 4758.58MOQ: 1 Set
-
HST MoPao 300 Single Plates Laboratory Equipment Metallographic Specimen Grinding Polishing MachineUS$ 16095.17 - 17494.75MOQ: 1 Set
-
HST-MOPAO2T-300 300mm Double Discs Single Control Metallographic Grinding Polishing MachineUS$ 18544.44 - 18894.33MOQ: 1 Set
Accuracy
/
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM, Software Reengineering
power
/
Protection Class
/
Voltage
380 V, 415 V, 240 V, 220 V
warranty
1 Year
Product name
metallographic cutting machine
Power
380V or 220V
Model
SQ-80
kw
2.2kw
Keyword
cutting machine
MOQ
1 Set
Brand
HST
Certificate
ISO CE
Delivery time
3 Working days
Port
Qingdao
Product Description
Application：
The HST-SQ80 metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials
in order to observe the metallographic and petrographic structures of the materials.
Features:
* This machine is equipped with a cooling system to take away the heat generated during cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample
cutting.
The HST-SQ80 metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials
in order to observe the metallographic and petrographic structures of the materials.
Features:
* This machine is equipped with a cooling system to take away the heat generated during cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample
cutting.
Model |
HST-SQ80 |
Maximum cutting diameter |
Φ80mm |
Spindle speed |
2800 r/min |
Cutting power |
3kw |
Input voltage |
Three-phase 380V、50HZ |
Grinding wheel specifications |
250*2*32mm |
Dimensions |
730*650*551mm |
Packing Size |
897*757*730mm |
Net weight |
118.75kg |
Gross weight |
139.7kg |
Water tank size |
470*370*300mm |
Water tank packing size |
540*460*460mm |
Water tank net weight |
15kg |
Water tank gross weight |
25kg |
