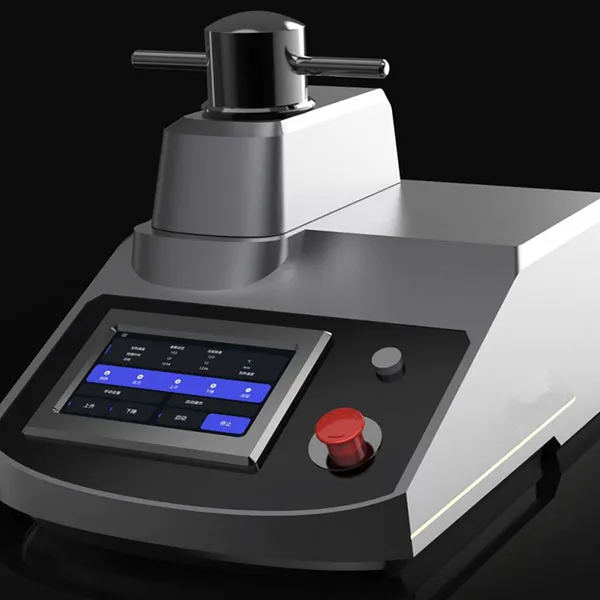

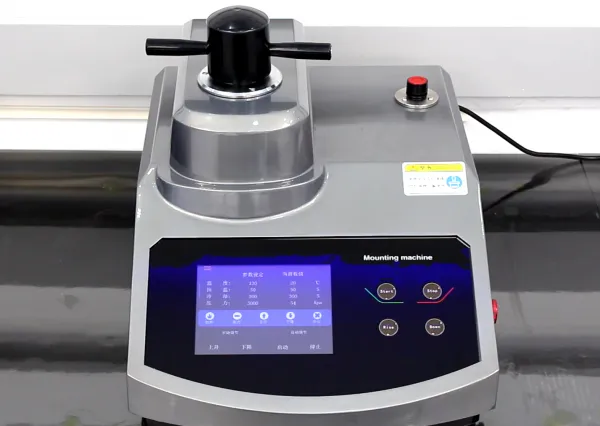

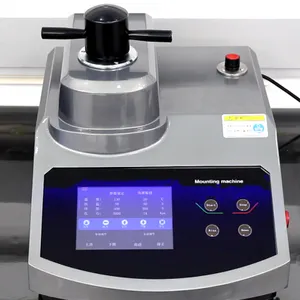

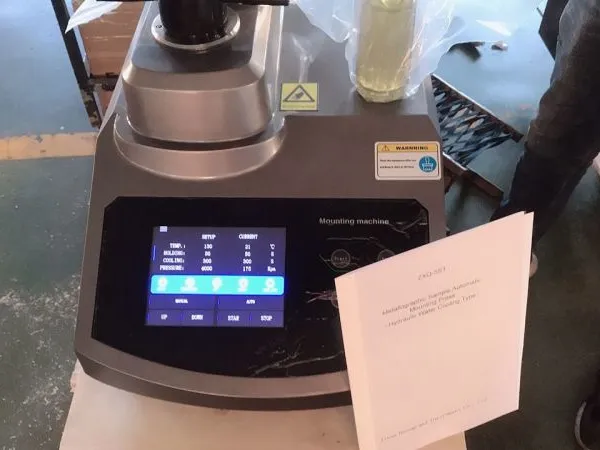

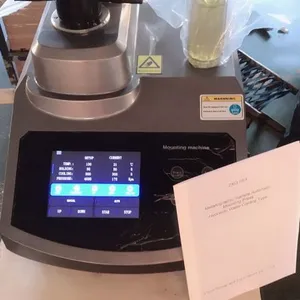

HST-ZXQ5YS Hydraulic Automatic Metallographic Specimen Mounting Press
Application:
HST-ZXQ5YS mounting machine is used to mount metallographic and petrographic samples that are tiny, difficult to hold or irregular before grinding and polishing.
Features:
After being mounted in this machine, it is convenient to grind and polish the sample, which is helpful for viewing the material structure of the sample under a metallographic microscope; and testing the hardness of the sample on a hardness tester.
The inlay material of this machine is limited to thermoset materials. The pressing temperature of different thermoset materials can be adjusted and customized according to the material.
This machine can automatically heat and pressurize. After pressing and forming, it will cool down and stop automatically. Open the upper cover and press the up button. The sample will automatically rise and you can take out the parts.
This machine is a multifunctional water-cooled inlay machine for inlaying various samples. It has the advantages of large number of molds and short mold making time.
Technical Parameters:
|
Model |
HST-ZXQ5YS |
|
The Sample Diameter |
22mm, 30mm, 45mm(choose 2) |
|
Sample preparation pressure |
0-10MPa |
|
Sample preparation time |
5-6min |
|
Sample preparation temperature |
35~300℃ |
|
Cooling method |
Water Cooling |
|
Maximum Consumption |
2600W*2 |
|
Power Supply |
220V, 50Hz |
|
Dimension |
650*700*500mm |
|
Package Size |
835*715*560mm |
|
Net Weight |
100kgs |
|
Gross Weight |
111.5kgs |
