The XK7126 CNC milling machine hard rail series of Jiangsu Daxiang Intelligent Equipment Co., Ltd. is a CNC bed milling machine with strong bearing capacity. The three-direction guide rails are all quenched hard rails, with wide rails and large spans. The structure and overall dimensions are compact and reasonable. The spindle is driven by a variable-frequency motor through a synchronous belt. It can perform various functions such as milling, drilling, reaming, and boring, and can complete the processing of complex and high-precision parts such as discs, plates, shells, and molds. It is suitable for various processes such as plane, bevel, groove, and hole machining of various medium and small parts, and is an ideal processing equipment for industries such as machinery, electronics, instruments, meters, molds, and automobiles; A fourth axis can be optionally configured. With the fourth axis, four-axis four-linkage can be achieved. The motor power is 0.75kW (2.4 N.m), and the index head model is FK15125 (optional), which expands the machining

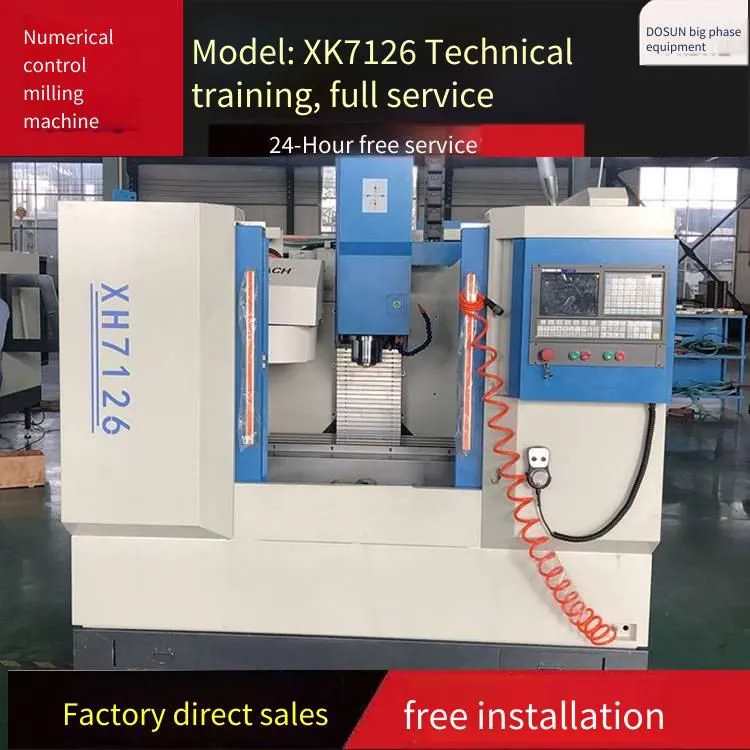

XK7126 CNC Milling Machine range.
1. The main components such as the column, worktable, middle slide, and lifting slide are all cast from high-strength materials and have undergone aging treatment to ensure the long-term stability of the machine tool,
providing a guarantee for the stability of the machine tool's performance.
2. A high-speed, high-precision, and high-rigidity spindle unit is adopted, with strong bearing capacity and a maximum speed of 8000rpm/min;
3. The X, Y, and Z guide rails have undergone super-audio quenching and precision grinding. The sliding guide surfaces are precisely scraped and coated with composite PTFE materials. Combined with automatic forced lubrication, it reduces the frictional resistance of the feed movement, reduces low-speed creeping, and improves the accuracy and service life of the machine tool.
4. High-precision and high-strength ball screws are used for the X, Y, and Z feed directions, driven by servo motors to ensure the positioning accuracy of the machine tool.
5. Protective devices are used for the guide rails and ball screws to ensure the cleanliness of the screws and guide rails and the transmission and working accuracy of the machine tool.
6. The electric equipment can perform forced lubrication on the longitudinal, transverse, and vertical screws and guide rails to reduce the wear of the machine tool and ensure the high-efficiency operation of the machine tool; At the same time, the cooling system can change the flow rate of the coolant by adjusting the nozzle to meet different processing needs.
7. The machine tool operating system is suspended on the upper right of the machine tool through a support arm, which conforms to the principles of ergonomics. The operating box can be rotated at a certain angle for convenient and reliable operation.
