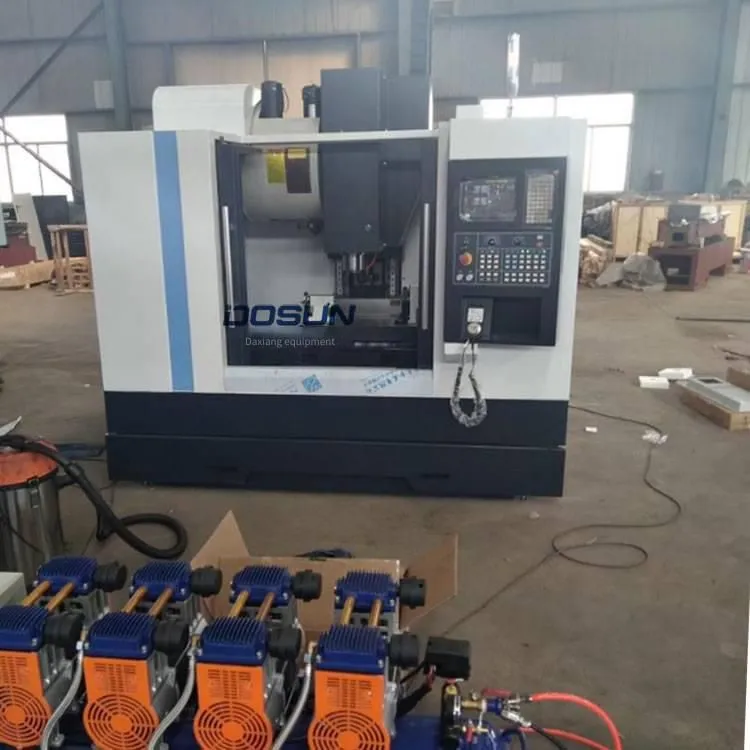

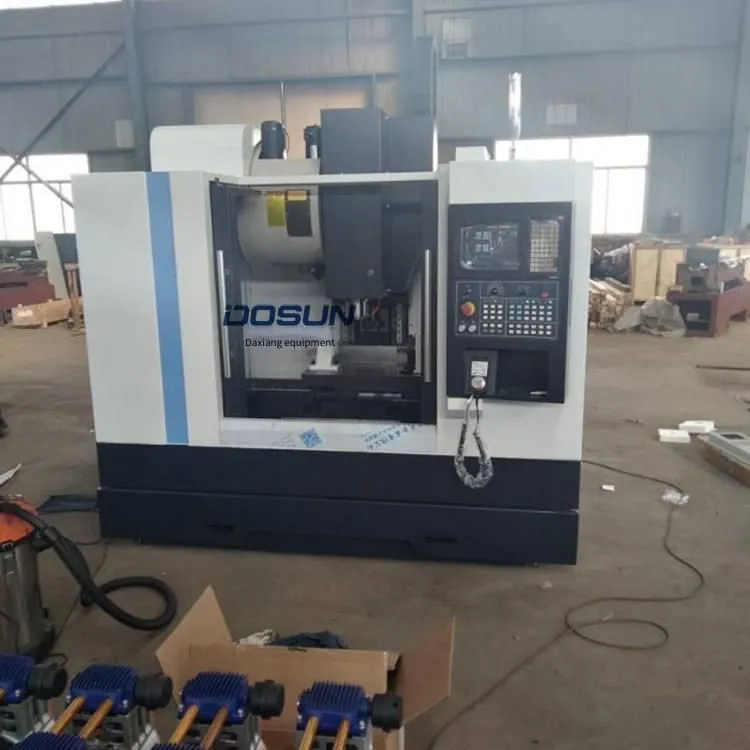

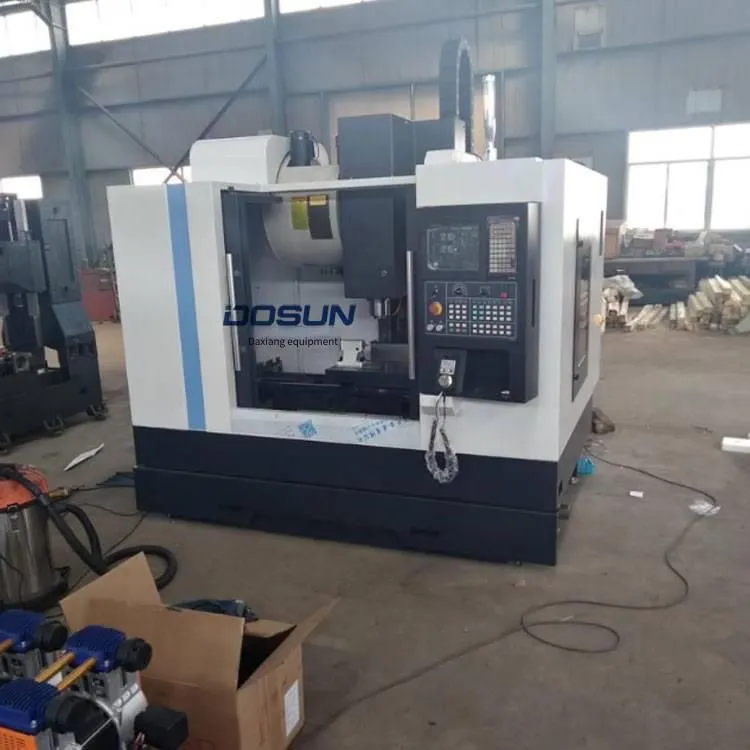

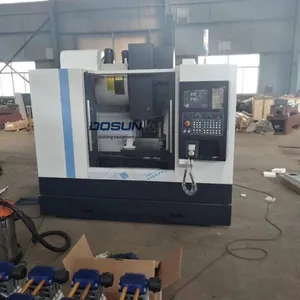

VMC650L Vertical Machining Center Information
I. Product Introduction and Uses
This product is a semi-closed-loop vertical machining center with three-axis servo direct-coupled control for the X , Y , and Z axes. All three axes use steel ball rolling linear guides, which have large load capacity, wide span, and high precision. The XY direction has a heavy load of 35MM , and the Z direction has a heavy load of 45MM . Only the TOM-L850 of other manufacturers uses linear guides of this specification. The structure and overall dimensions are compact and reasonable. The spindle is driven by a servo motor through a timing belt. It can achieve one-time clamping of various complex parts such as discs, plates, shells, cams, and molds, and can complete various processes such as drilling, milling, boring, expanding, reaming, and rigid tapping. It is suitable for the production of multi-variety, small to medium batch products and can meet the processing requirements of complex and high-precision parts. It can be equipped with a fourth rotary axis to meet the processing requirements of special parts.
II. Main Structural Features
1. The main basic components such as the base, slide, worktable, column, and spindle box are made of HT300 cast iron. The base has a box-type structure, and the compact and reasonable symmetrical rib structure ensures the high rigidity and anti-bending and shock-absorbing performance of the basic components. The A -type bridge-span column and the internal grid-shaped ribs effectively ensure the rigidity and precision during heavy cutting of the Z axis. The basic components are made by resin sand molding and have undergone aging treatment, which provides a guarantee for the long-term stability of the machine tool's performance.
2. X , Y 、 Z axis guide rails are all heavy-duty linear ball guide rails from Taiwan HIWIN Company, featuring high speed, high rigidity, low friction, low noise, and low temperature rise change. With automatic forced lubrication, the accuracy and service life of the machine tool are improved.
3、 Z axis is balanced with a counterweight to ensure smooth and stable movement of the spindle box; the drive motor for the Z axis is equipped with a power-off braking device.
4、 X 、 Y 、 Z axes use high-precision and high-strength internal circulation double-nut preloaded large-lead ball screws for feed, with a high feed speed. The drive motor is directly connected to the screw through an elastic coupling. The feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool.
5、 A high-speed, high-precision, and high-rigidity spindle unit is adopted, with strong axial and radial load-bearing capacity. The rotational speed can reach 8000rpm .
6、 The spindle adopts a central air blowing structure. When the spindle loosens the tool, the inner taper of the spindle is quickly cleaned with high-pressure central gas, ensuring the accuracy and service life of tool clamping.
7、 X 、 Y 、 Z axes' guide rails and screws are all equipped with protective devices to ensure the cleanliness of the screws and guide rails, and to guarantee the transmission, movement accuracy, and service life of the machine tool.
8、 The external protection of the machine tool adopts a fully enclosed structure design, which is convenient to operate, safe, reliable, and aesthetically pleasing.
9、 Adopt a reliable centralized automatic lubrication device to automatically lubricate each lubrication point of the machine tool intermittently at regular time and quantity. The lubrication time can be adjusted according to the working conditions;
10、 Adopt a tool magazine with 16 tools in the form of a turret (standard configuration) or a disc type produced by a professional manufacturer in Taiwan. The tool change is accurate, with short time and high efficiency. After millions of operation tests, it meets the reliability requirements. It is equipped with a damping structure to reduce the impact during movement and ensure the service life of the tool magazine. It is pneumatically driven, convenient to use, and can change tools through the shortest path;
11、 Adopt an oil-water separation device, which can separate most of the collected lubricating oil from the coolant, prevent the rapid deterioration of the coolant, and is beneficial to environmental protection;
12、 The operating system of the machine tool adopts the principle of ergonomics. The operating box is independently designed and can rotate by itself, which is convenient for operation.
III. Main technical parameters
1、 Main technical parameters
Stroke
Stroke X axis : |
650mm |
Y axis : |
380mm |
Z axis : |
460mm |
Distance from the spindle end face to the worktable surface : |
100 - 560mm |
Distance from the spindle center to the column guide surface : |
460mm |
Worktable
Workbench surface size |
900×360mm |
Load-bearing |
400kg |
T -slot width |
18 |
T -slot quantity |
3 |
Spindle
Taper specification |
BT40 |
Spindle speed (optional) |
8000 |
Spindle motor |
7.5kw |
