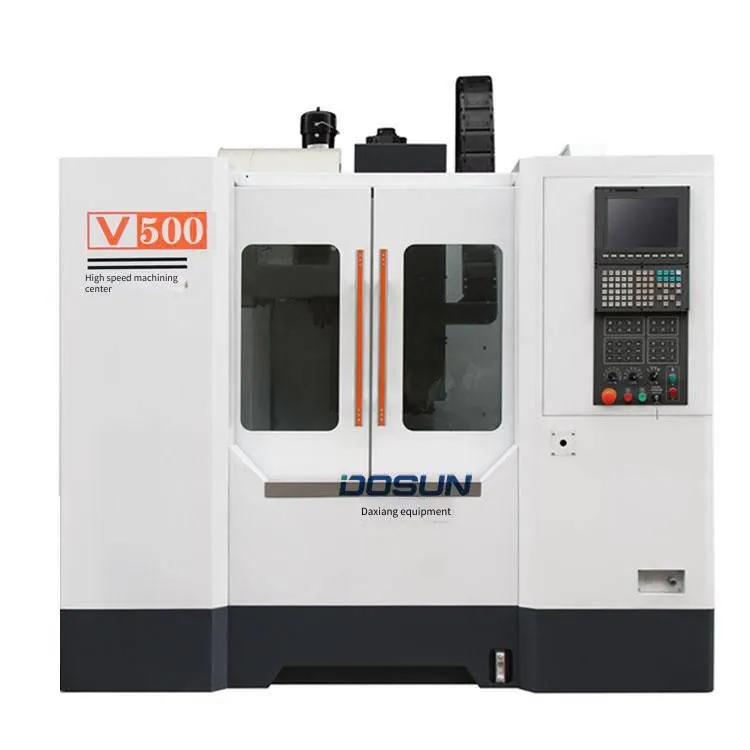

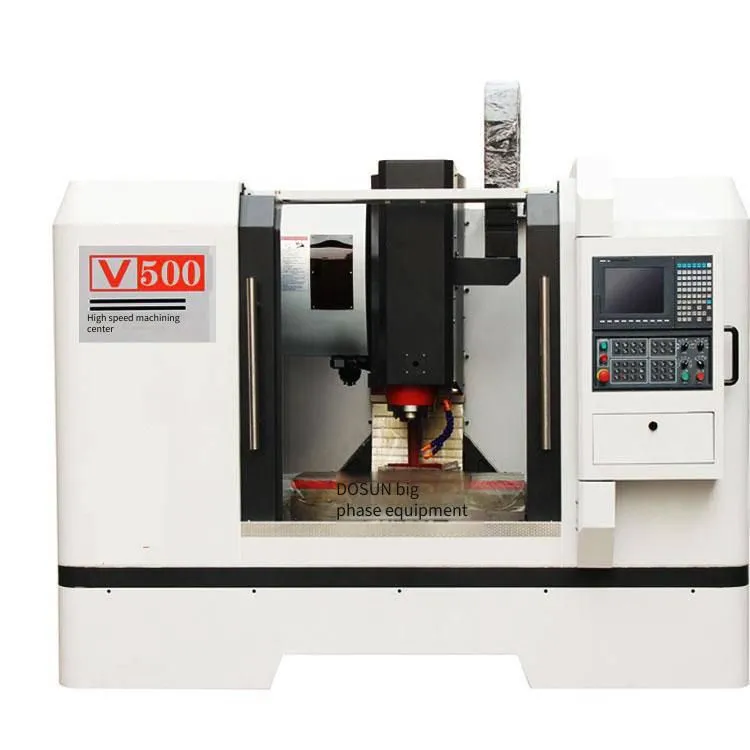

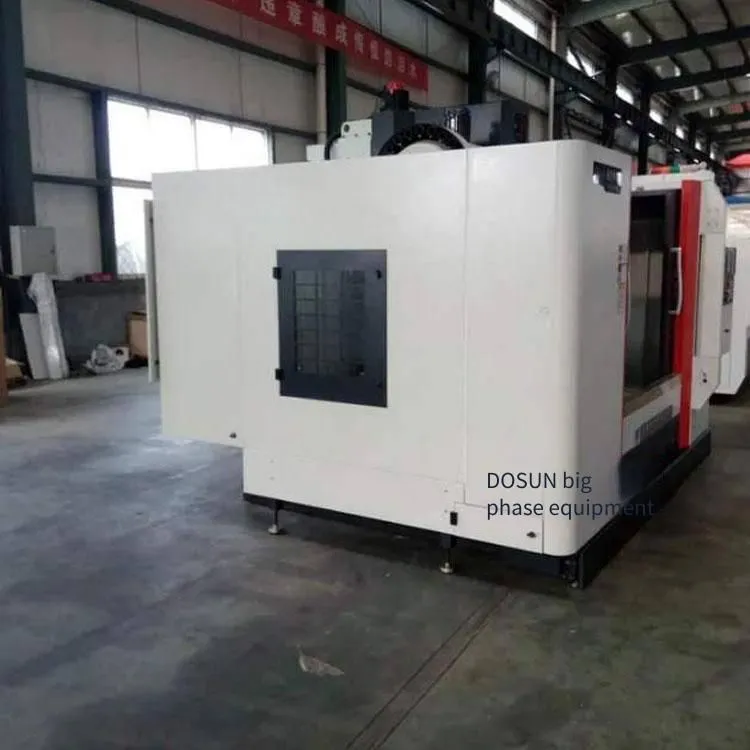

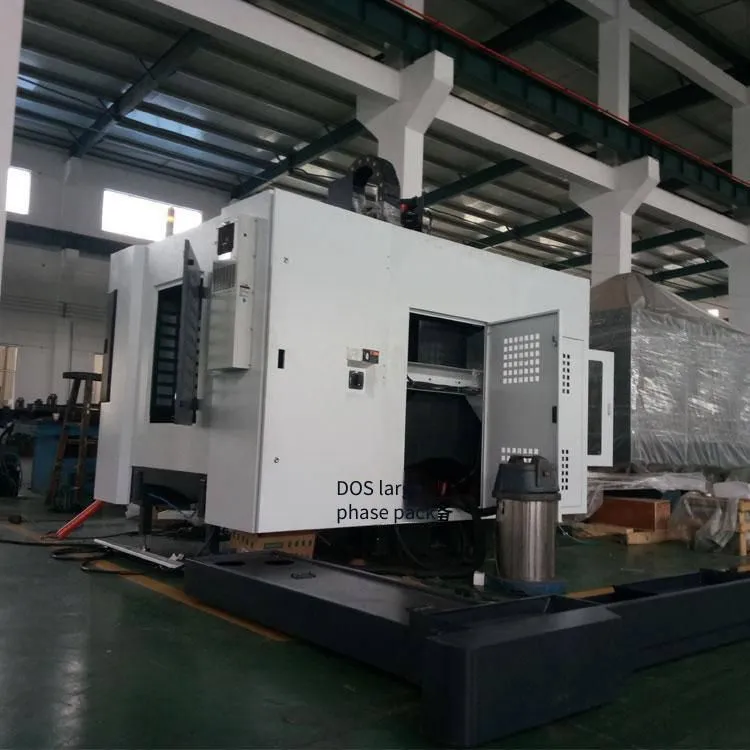

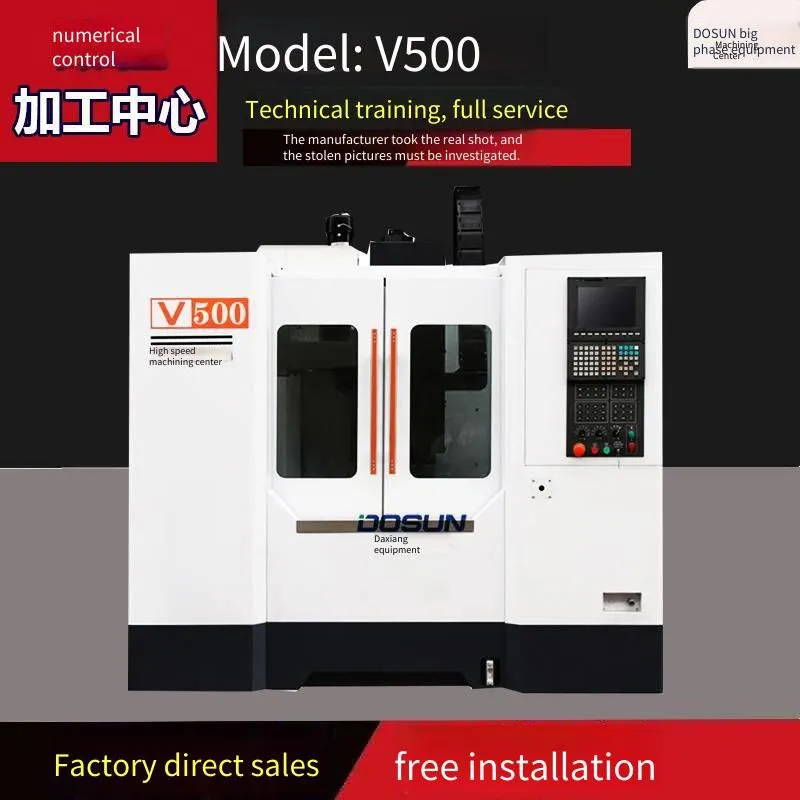

Help CenterV500 Machining Center, High-speed Cnc Machining Center 500, Vertical Machining Center
Related Products
-
V800 Cnc Machining Center, High-speed Machining Center 800NegotiableMOQ: 0 Unit -
Vmc850 Machining Center, Vertical Machining Center 850, Cnc Machining CenterNegotiableMOQ: 1 Unit
-
Cnc Lathe 6150, Horizontal Cnc Lathe With Hard Rail and Flat Bed 6150NegotiableMOQ: 0 Unit
-
Cnc Vertical Machining Center 1060NegotiableMOQ: 1 Unit
-
Cnc Horizontal Lathe 6163NegotiableMOQ: 0 Unit
VWC500 Vertical Machining Center (Linear Guideway Machine)
I. Design Technical Parameters
Item Content |
Technical Parameters |
Workbench Size |
700 × 260 |
Workbench Load-bearing (Uniformly Distributed) |
100 |
Workbench T -Slot (Number of Slots / Width / Spacing) |
3-14 × 80 |
X -Axis Stroke |
500 |
Y -Axis Stroke |
300 |
Z -Axis Stroke |
450 |
Spindle Specification |
BT40-120 |
Spindle Speed |
8000 |
Recommended Spindle Motor Power |
4 |
Distance from Spindle Nose to Workbench Surface |
100-550 |
Distance from Spindle Centerline to Column Guideway Surface |
310 |
Three-Axis Rapid Movement ( X/Y/Z ) |
36/36/36 |
Cutting Feed Speed |
1-4000 |
Three-Axis Screw Pitch ( X/Y/Z ) |
XY : R2516 Z : R3216 |
Recommended Three-Axis Motor Torque ( X/Y/Z ) |
10 |
Positioning Accuracy and Repeatability |
≤0.01 and ≤0.005 |
Use air pressure |
0.6 |
II. Main supporting facilities of the machine tool
Serial number |
Configuration |
Specification details |
Manufacturer |
Origin |
1 |
Special bearings for three-axis lead screws (2 in the front 2 and 2 in the rear 2 ) |
Made in China |
||
2 |
Three-axis ball screws (Grade C4 ) |
XY: R2516 Z: R3216 |
Made in China |
|
3 |
Three-axis guide rails |
X/Y/Z : Linear guide rails |
HIWIN |
|
4 |
Spindle unit |
Belt type BT40*120 - 8000rpm |
Danquan |
Taiwan |
5 |
Tool changing cylinder |
3T |
Taiwan |
|
6 |
Three-axis telescopic shields |
Made in China |
||
7 |
Damping type automatic lubrication system |
DZ - 1 |
Made in China |
|
8 |
Three-axis locking nuts |
YSF M20*1.5P |
Yingsi |
Taiwan |
9 |
Three-axis couplings |
3 pieces |
||
10 |
Anchor bolt seats + Anchor bolts + Nuts |
6 sets |
Made in China |
|
11 |
Tool magazine |
BT40 - 12T Tool magazine |
Taiwan |
