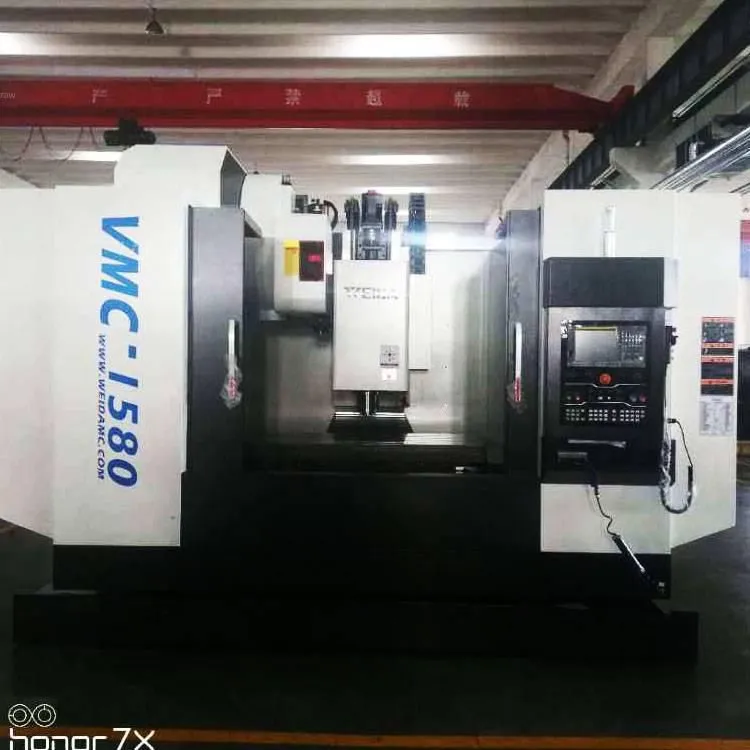

VMC1580 Pre-sales information for Vertical Machining Center
I. Product Introduction and Uses
This product X , Y , Z The three axes are semi-closed-loop vertical machining centers with servo direct connection control. All three axes are rectangular guideways, which have large load capacity, wide span and high precision, suitable for heavy loads. The structure and overall dimensions are compact and reasonable. The spindle is driven by a servo motor through a synchronous belt. It can realize one-time clamping of various complex parts such as discs, plates, housings, cams and molds, and can complete various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. It is suitable for the production of multi-variety and small to medium batch products, and can meet the processing requirements of complex and high-precision parts. It can be equipped with a fourth rotary axis to meet the processing requirements of special parts.
II. Main Structural Features
1. The main basic components such as the base, slide, worktable, column and spindle box are made of HT300 cast iron; the base is of a box-type structure, and the compact and reasonable symmetrical rib structure ensures the high rigidity and anti-bending and shock-absorbing performance of the basic components; the A -type bridge-span column and the internal grid-shaped ribs effectively ensure the rigidity and precision of the Z axis during heavy cutting; the basic components are molded by resin sand and subjected to aging treatment, which provides a guarantee for the long-term stability of the machine tool performance.
2. The three guideways of X , Y and Z are all plastic-coated rectangular guideways, which have the characteristics of high speed, high rigidity, low friction, low noise and low temperature rise change. Combined with automatic forced lubrication, the accuracy and service life of the machine tool are improved;
3、 Z direction is balanced by adding counterweights to ensure smooth and stable movement of the spindle headstock; The drive motor in the Z direction is equipped with a power-off braking device;
4、 X , Y , Z The feed in three directions adopts high-precision and high-strength internal circulation double-nut preloaded large-lead ball screws, with high feed speed; The drive motor is directly connected to the screw through an elastic coupling. The feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool;
5、 A high-speed, high-precision, and high-rigidity spindle unit is adopted, with strong axial and radial bearing capacity, and the rotational speed can reach 6000rpm ;
6、 The spindle adopts a center blowing structure. When the spindle releases the tool, the inner cone of the spindle is quickly cleaned with high-pressure gas from the center, ensuring the clamping accuracy and service life of the tool;
7、 X , Y , Z The guide rails and screws in three directions are all equipped with protective devices to ensure the cleanliness of the screws and guide rails, and to ensure the transmission, movement accuracy and service life of the machine tool;
8、 The external protection of the machine tool adopts a full-protection structure design, which is convenient to operate, safe and reliable, and beautiful;
9、 A reliable centralized automatic lubrication device is adopted, which automatically lubricates each lubrication point of the machine tool intermittently at regular intervals and in a fixed amount. The lubrication time can be adjusted according to the working conditions;
10、 Adopt a 24-disc tool magazine produced by a professional manufacturer in Taiwan 24 (Optional) . The tool change is accurate, the time is short, and the efficiency is high. After millions of operation tests, it meets the reliability requirements. It has a damping structure, which can reduce the impact during movement and ensure the service life of the tool magazine. It is pneumatically driven, easy to use, and changes tools through the shortest path.
11、 Adopt an oil-water separation device, which can separate most of the collected lubricating oil from the coolant, prevent the rapid deterioration of the coolant, and is beneficial to environmental protection.
12、 The machine tool operating system adopts the principle of ergonomics. The operation box is independently designed, can rotate by itself, and is convenient to operate.
