Home > Industrial Equipment & Components > Valve > Control Valve > S900-01CL Automatic Control Valve With Pressure Compensation, Brass/Stainless Steel Material

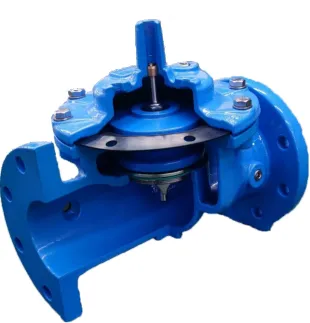

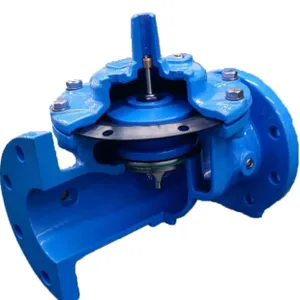

S900-01CL Automatic Control Valve With Pressure Compensation, Brass/Stainless Steel Material
Negotiable
MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Alloy
Certification:
Other, GS, RoHS, CE, ISO9001
Connection Mode:
Flange
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, China
Delivery Detail:
7 days
Related Products
-
Reliable S100A Electromagnetic Float Control Valve With Low Power Consumption and Long Service LifeNegotiableMOQ: 1 Set -
S100A Electromagnetic Float Control Valve for Water Treatment Systems With High Pressure ResistanceNegotiableMOQ: 1 Set
-
Heavy-Duty S100B Level Control Valve for Steam Boilers and Process EquipmentNegotiableMOQ: 1 Set
-
S100B Automatic Liquid Level Control Valve With Pressure Regulation FunctionNegotiableMOQ: 1 Set
-
Energy-Efficient S100B Liquid Level Regulator Valve for Industrial ApplicationsNegotiableMOQ: 1 Set
Material
Alloy
Certification
Other, GS, RoHS, CE, ISO9001
Connection Mode
Flange
Media
Water
Transport Package
Bubble Bags & Wooden Case
Trademark
SHSUOTE
Origin
Shanghai,China

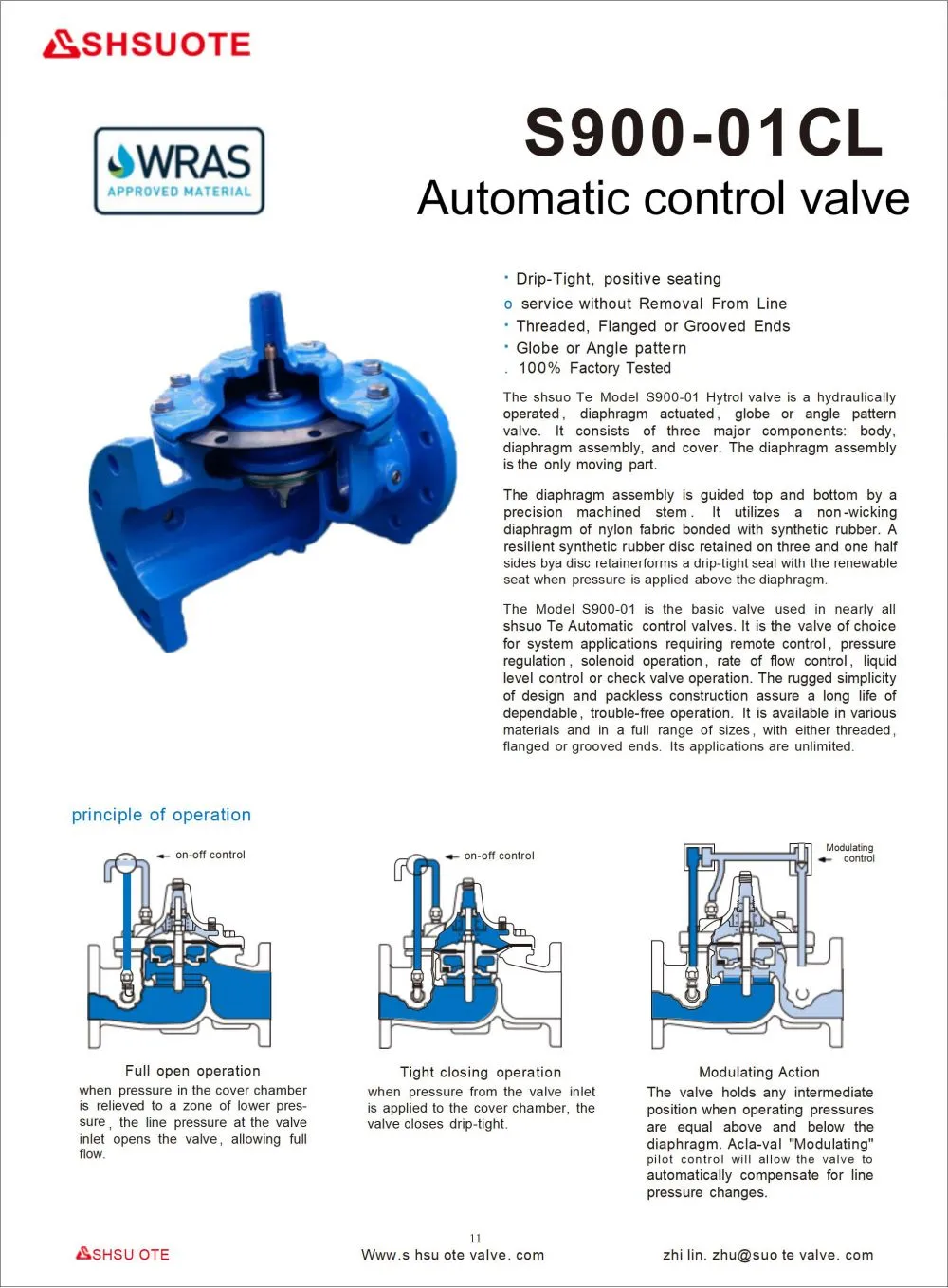

The shsuo Te S900-01TYTAN valve is a
hydraulically operated, diaphragm actuated, globe pattern valve. It consists of three major
components:body,diaphragm assembly and cover. The diaphragm assembly is the only moving part,
guided top and bottom bya precision machined
stem. The disc retainer and rubber disc form a drip- tight seal with the renewable seat when pressure is applied above the diaphragm (cover chamber).
Theshsuo Te S900-01 is the main valve used in nearly all shsu oTe Automatic control valves.
Send Inquiry to This Supplier
1Yr
Business Type
Manufacturer
Year Established
2004
Product Certifications
ISO9001, ISO9004, OHSAS18001, Others
Port of Shipment
Shanghai
