The SALK9 90 Gallon Flammable Storage Cabinet is engineered for industrial environments that require centralized, large-volume chemical management. Measuring 1650 * 1090 * 860mm, this "Heavyweight" cabinet provides maximum storage capacity without compromising on safety, making it the ideal choice for central chemical warehouses and large manufacturing plants.
The Challenge: Managing "Bulk" Flammables
In large facilities, having dozens of small chemical containers scattered across various departments creates a significant fire hazard and a management nightmare. The SALK9 allows you to centralize your risk. By consolidating up to 90 gallons of flammable liquids into one highly protected, fire-rated vault, you simplify safety inspections and ensure that your bulk inventory is always accounted for and secure.
SALK9 Master Specifications
For warehouse managers and safety logistics coordinators, the SALK9 delivers the following industrial-grade parameters:
Component |
Technical Specification |
Operational Impact |
Model Number |
SALK9 |
High-capacity master series |
Storage Volume |
90 Gallons (approx. 340 Liters) |
Max capacity for a standalone unit |
Cabinet Size |
1650(H) * 1090(W) * 860(D) mm |
Deep-profile for bulk container storage |
Wall Material |
1.2mm (18-Gauge) Steel |
Reinforced for heavy internal loads |
Door Type |
Double-Door with 3-Point Latch |
Wide access for easy loading/unloading |
Shelf Strength |
Adjustable Galvanized Steel |
Supports heavy 20L - 30L pails |
Safety Ground |
Built-in Static Grounding Lug |
Critical for high-volume solvent transfer |
Heavy-Duty Engineering for Bulk Safety
1. Deep-Profile Design for Large Containers
Unlike standard cabinets that are only 460mm deep, the SALK9 features a 860mm deep profile. This extra depth is a game-changer for warehouses. It allows you to store larger industrial pails, oversized solvent cans, or even double-row your inventory, maximizing every square inch of your warehouse floor space.
2. Reinforced Structural Integrity

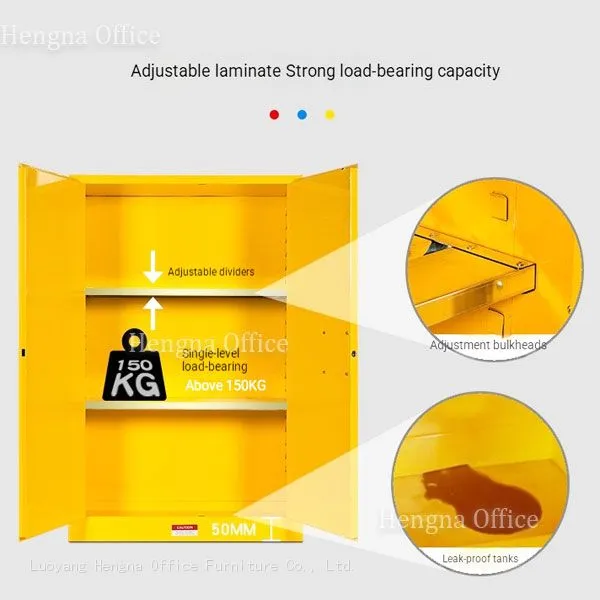

Weight is a major factor when storing 90 gallons of liquid. The SALK9 is built with all-welded 18-gauge cold-rolled steel. The double-wall structure (38mm air gap) is reinforced to handle the massive internal pressure and weight of a full load. The adjustable shelves are specifically engineered not to sag under the weight of multiple 5-gallon (20-liter) industrial drums.

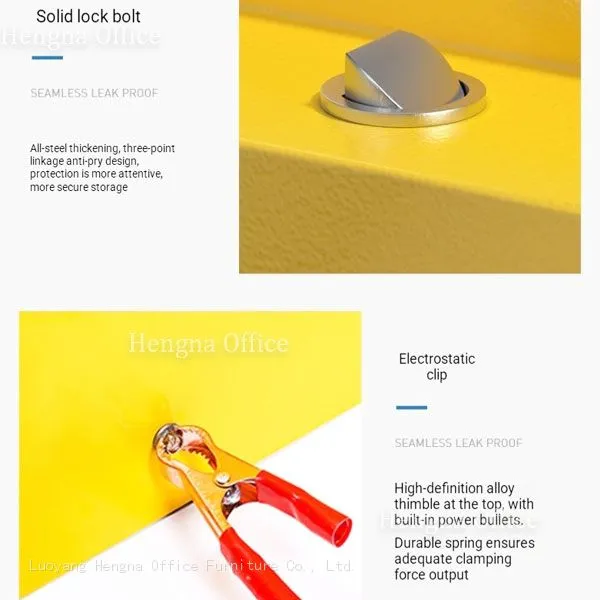

3. Integrated Static Control for High-Volume Transfers
When you are moving large amounts of liquid, the friction creates static electricity. The SALK9 includes a heavy-duty grounding connector. In a chemical warehouse environment, this allows you to ground the cabinet to the building's earth system, providing a safe path for static to dissipate and preventing sparks that could ignite volatile vapors during inventory checks.

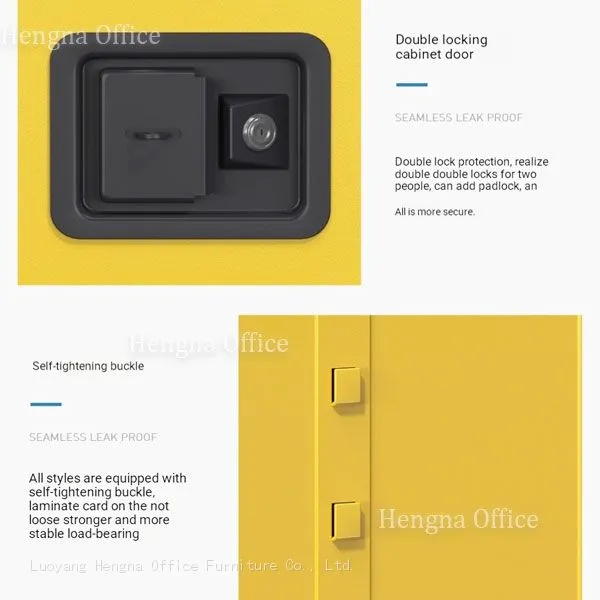

4. High-Security Master Latching System
The massive doors of the SALK9 are secured by a 3-point stainless steel interlock cam lock. This system ensures that the doors are pulled tight against the frame at the top, center, and bottom. It provides a consistent seal that keeps external heat out and internal vapors in, while also providing a robust deterrent against unauthorized access to expensive chemical stock.
Strategic Applications for the SALK9
Central Chemical Warehouses: Acting as the primary storage point for a whole facility.
Large Manufacturing Plants: Centralizing cleaning solvents, lubricants, and fuel additives.
Logistics & Distribution Centers: Safe temporary storage for hazardous materials awaiting transport.
Frequently Asked Questions (FAQ)
Q1: Is the SALK9 too heavy to move once it is delivered?
A: The SALK9 is a substantial piece of equipment. It is designed with a stable base that can be moved using a standard pallet jack or forklift when empty. We strongly recommend planning its permanent location before filling it with chemicals, as a fully loaded 90-gallon cabinet can weigh several hundred kilograms.
Q2: Can I store 55-gallon (200-liter) drums inside the SALK9?
A: While the SALK9 is deep and wide, it is primarily designed for smaller pails and cans (1L to 30L). For vertical storage of full 55-gallon drums, we recommend our specialized Vertical Drum Safety Cabinets, which feature reinforced floors and ramp access. However, for a high volume of standard pails, the SALK9 is the best option.
Q3: How many shelves come with the SALK9?
A: The SALK9 typically comes with two or three heavy-duty adjustable shelves. Because the cabinet is 1650mm tall, this allows you to create three or four large storage levels, giving you the flexibility to organize your bulk inventory by chemical type or department.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
