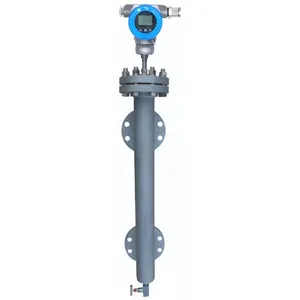

Help CenterKyue Magnetostrictive Liquid Level Gauge High Accuracy Magnetic Level Transmitter Oil Depot Use Explosion Proof
Product Spotlights
Related Products
-
Level Measurement Radar Level Meter Guided Wave Radar Level Transmitter With Bluetooth5.0NegotiableMOQ: 1 Piece -
Kyue Ultrasonic Level Sensor Non Contact Ultrasonic Water Tank Level Transmitter Liquid Level TransducerUS$ 350 - 455MOQ: 1 Piece
-
KYM800 Magnetic Level Gauge (Magnetic Float Type) Factory SupplyNegotiableMOQ: 1 Piece
-
KY3003SP Submersible Level Transmitter Hydrostatic Level Sensor Level MeasurementUS$ 105 - 135MOQ: 1 Piece
-
KYU800 Non-Contact Ultrasonic Level Transmitter With 20m Range and LCD Display Hart 5.0 RS 485US$ 200 - 500MOQ: 1 Piece
1. Product Overview
The Magnetostrictive Level Transmitter is a high-precision liquid level measurement instrument designed for continuous measurement of liquid level or oil-water interface in various storage tanks and reactors. It functions like an "electronic ruler" with a magnetic float, telling you exactly how much oil or water is in your tank in real-time.
The biggest advantage of this product is its extremely high accuracy (error as low as 0.5mm) and stable performance, unaffected by medium pressure, temperature changes, or foam. With no moving mechanical parts inside, it requires virtually no maintenance and has a long service life. It is particularly suitable for precise measurement and control needs in industries such as petroleum, chemical, pharmaceutical, and food processing.
2. Main Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 0~5 meters (standard), up to 25 meters (custom) |
| Accuracy | Up to ±0.5 mm |
| Resolution | 0.01 mm |
| Measuring Medium | Various liquids (oil products, chemicals, water, LPG, etc.) |
| Medium Temperature | -40℃ ~ +150℃ (standard), up to +400℃ (custom high-temp version) |
| Working Pressure | Up to 32 MPa |
| Output Signal | 4-20mA, RS485 communication, etc. |
| Explosion Proof | Intrinsically Safe / Flameproof, suitable for hazardous areas |
| Ingress Protection | IP65 / IP67 (dustproof and waterproof, suitable for outdoor installation) |
| Wetted Materials | 304/316L Stainless Steel (corrosion resistant) |
3. Applications
The Magnetostrictive Level Transmitter excels in the following scenarios:
Petroleum Industry: Crude oil storage tanks, refined oil (gasoline/diesel) inventory management, tank truck loading/unloading measurement.
Chemical Industry: Acid, alkali, and solvent storage tanks, precise level control in reactors.
Pharmaceutical & Food Industry: Sanitary level measurement in bio-fermenters, alcohol storage tanks, food ingredient tanks.
Water Treatment: Level monitoring in water tanks, reservoirs, and chemical storage tanks.
Power Industry: Drum level measurement, lubricating oil tank level monitoring.
4.Note: Specific model selection depends on site conditions. Please contact technical personnel for details.
